TSINGTAO TOKY UM6500 Ultrasonic Thickness Gauge Basic, Unadjustable Speed of Sound

M6500 Ultrasonic Thickness Gauge can measure a variety of materials with good ultrasonic conductors. Such as steel, cast steel, aluminum, brass, zinc, quartz Glass, polyethylene, gray cast iron, ductile iron, Ceramics, plastic and more than ten materials
Model：
Certificate
Contact
Details SPEC VIDEO CAT
Similar products

TSINGTAO TOKY UM6500 Ultrasonic Thickness GaugeSPEC

TSINGTAO TOKY UM6500 Ultrasonic Thickness GaugeDetails

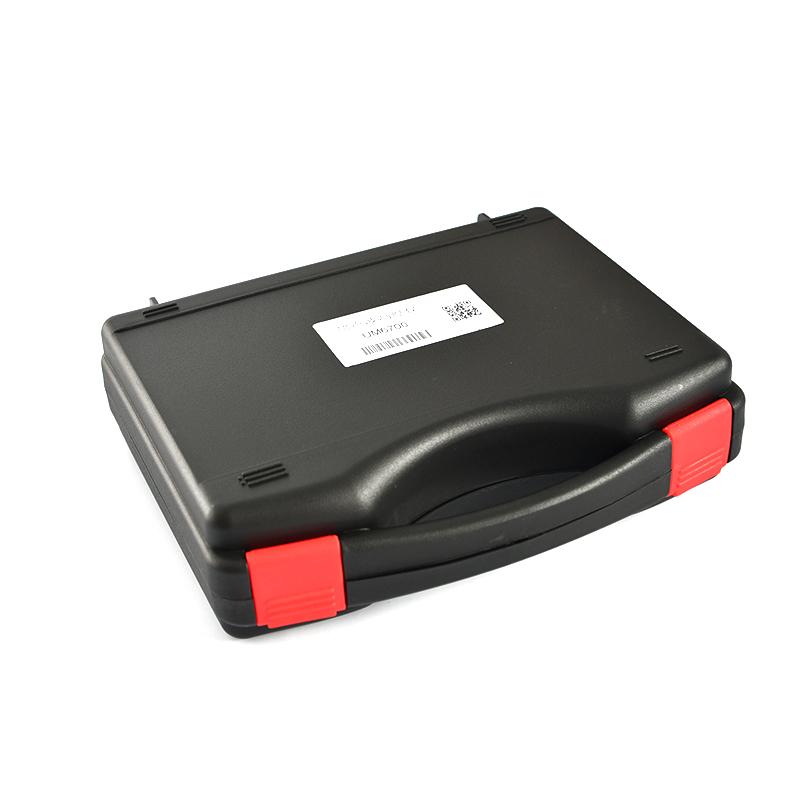

TSINGTAO TOKY UM6500 Ultrasonic Thickness GaugePacking list

SKU
NB029016
Display
4-Bit backlit LCD liquid crystal display
Measuring range
1.0~245mm (determined by the probe, special requirements can be customized); 0.06-8inch
display Accuracy
0.1mm
Material code
11 groups
Environment temperature
0-40℃
Environment humidity
≤90%RH
Environment requirements
The surrounding environment has no strong vibration, no strong magnetic field, no corrosive medium and serious dust.
probe
5M-8 Sensors
Accuracy
±(0.5%n+0.1)
Power
4 AA batteries
Volume
140×60×24mm
Weight
185g
UM6500
Ultrasonic Thickness Gauge

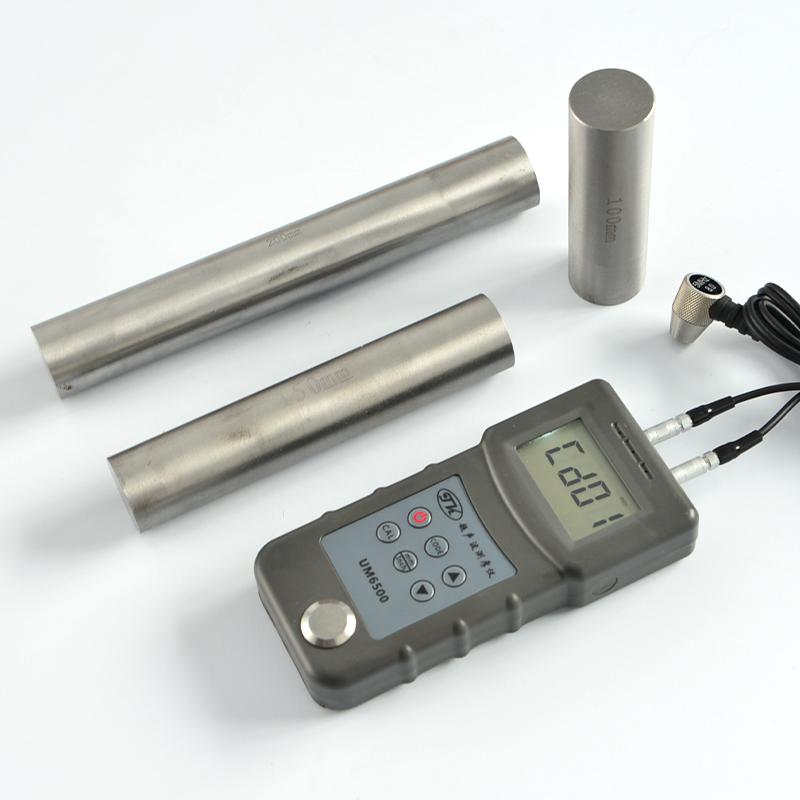

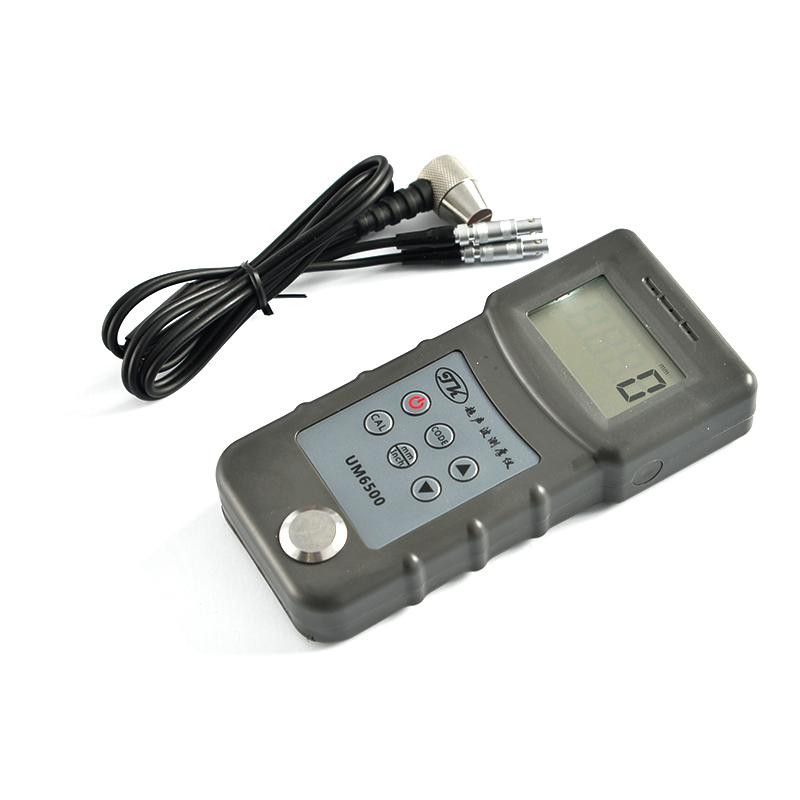

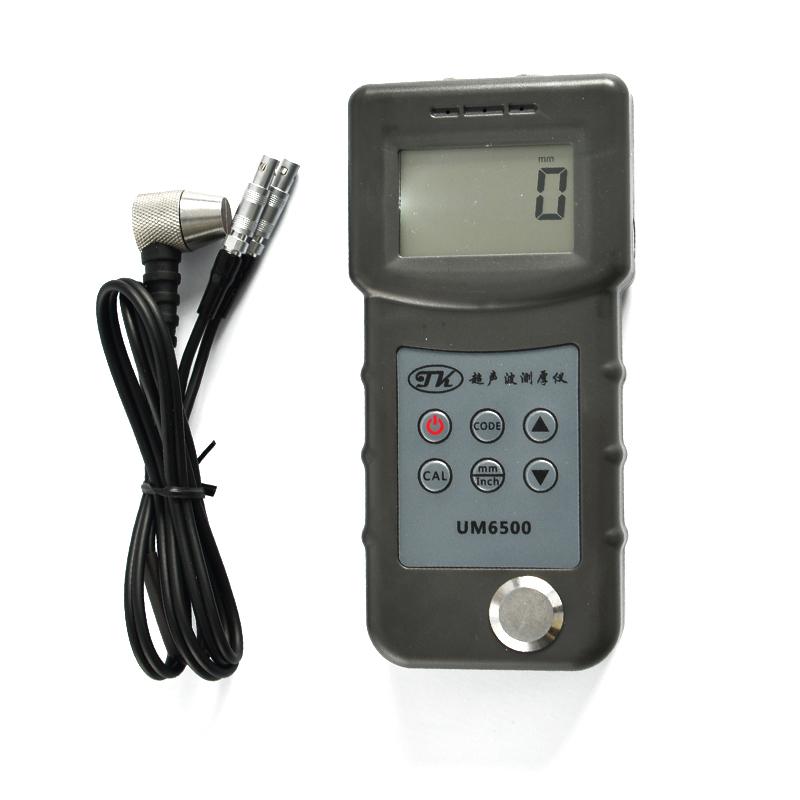

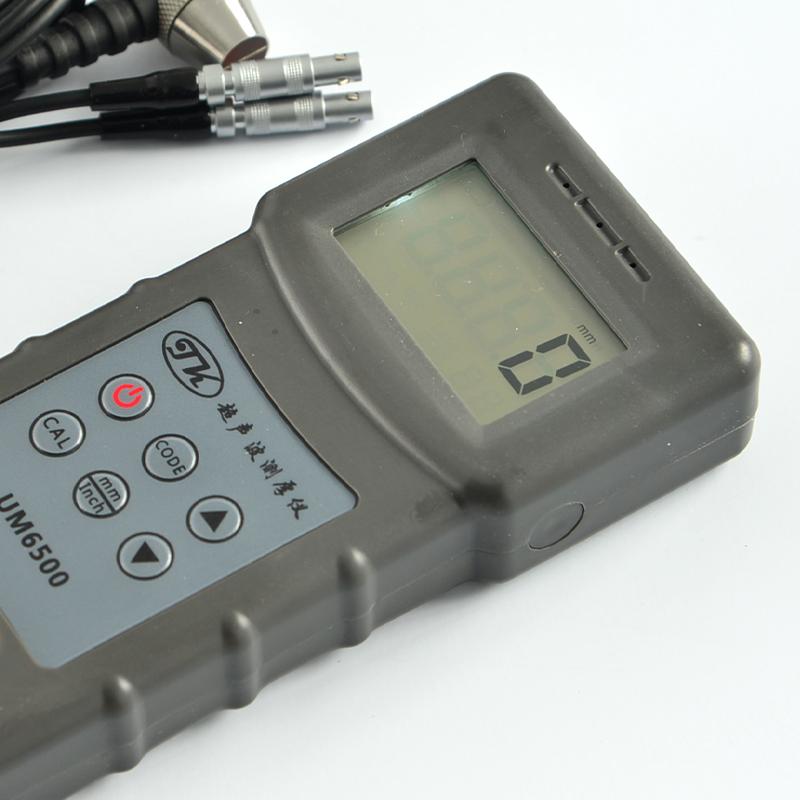

TSINGTAO TOKY UM6500 Ultrasonic Thickness Gauge Basic, Unadjustable Speed of Sound Picture

UM6500 Ultrasonic Thickness Gauge is a pocket-sized measuring instrument with low power consumption and low limit developed by adopting professional technology at home and abroad. It can measure a variety of materials with good ultrasonic conductors.

application

※It can accurately measure various plates and various processed parts, and can monitor various pipelines and pressure vessels in production equipment, and monitor their thinning degree after being corroded during use.

※ Widely used in various fields such as petroleum, chemical industry, power station, metallurgy, shipbuilding, aviation, aerospace, machine manufacturing and pressure vessels, chemical equipment boilers, oil storage tanks, etc.

※Measurable materials: steel, cast steel, aluminum, brass, zinc, quartz glass, polyethylene, gray cast iron, nodular cast iron, ceramics, plastics and more than ten kinds of materials

※Large-screen LCD digital display with high-brightness backlight, convenient for use in dimly lit environments.

※ Metric and imperial free conversion function.

※Coupling status prompt function.

※Low battery indication function.

※Automatic shutdown power saving function.

※If the thickness is known, the speed of sound can be reversely measured to improve the measurement accuracy.


FAQ
QHow thick can this UM6500 Ultrasonic Thickness Gauge be measured?
A The UM6500 Ultrasonic Thickness Gauge can measure a thickness of 1mm.
