Sandu LP-3710 Pipe Wall Thickness Gauge, Thickness Measurement Range 0~10mm

SUNDOO LP-3710 pipe wall Thickness Gauge is a Dial-Type pipe wall Thickness Gauge for measurement of pipe wall thickness, LP-3710 pipe wall Thickness Gauge measurement range is 0~10mm, LP-3710 pipe wall Thickness Gauge has the advantages of simple structure and stable measurement.
Model：
Certificate
Contact
Details SPEC CAT

SUNDOO LP-3710 Thickness Gauge (tube wall type)SPEC

SUNDOO LP-3710 Thickness Gauge (tube wall type)Details

SUNDOO LP-3710 Thickness Gauge (tube wall type)Packing list

SKU
NB002903
Measurement range
0~10mm
Measurement Accuracy
±0.05mm
reading display
Pointer
Graduation
0.05mm
Hou Shen
20mm
Weight
About 0.2kg
application
Pipe wall, etc
LP-3710
Thickness Gauge (tube wall type)

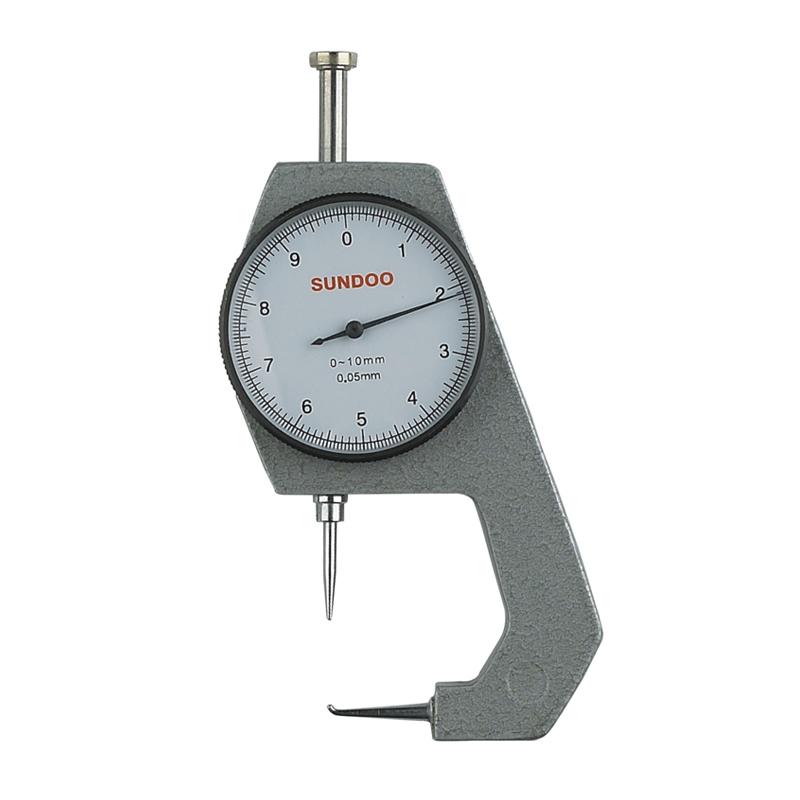

Sandu LP-3710 Pipe Wall Thickness Gauge, Thickness Measurement Range 0~10mm Picture

Introduction to the LP-3710 Pipe Wall Thickness Gauge

Shandu InstrumentsLP-3710 Pipe Wall Thickness Gauge is a pipe wall Thickness Gauge specially used to measure the thickness of pipe wall and other related products.The measurement range of LP-3710 pipe wall Thickness Gauge is 0~10mm, the index value is 0.05mm, and the indication error is ±0.05mm。The LP-3710 pipe wall Thickness Gauge has a simple structural design, and the measurement results are pointer-type, which can display the measured thickness value in time.The LP-3710 Pipe Wall Thickness Gauge is a fast and simple Thickness Gauge that is convenient for field and laboratory thickness measurement.

LP-3710 pipe wall Thickness Gauge display

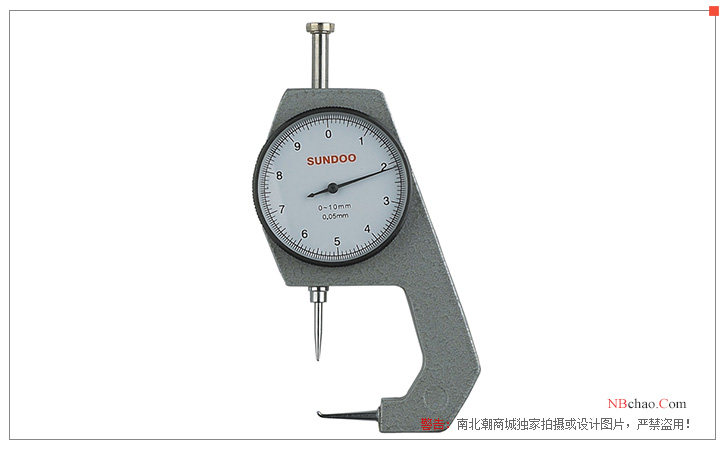

Shandu Instruments LP-3710 Pipe Wall Thickness Gauge Exterior Drawing

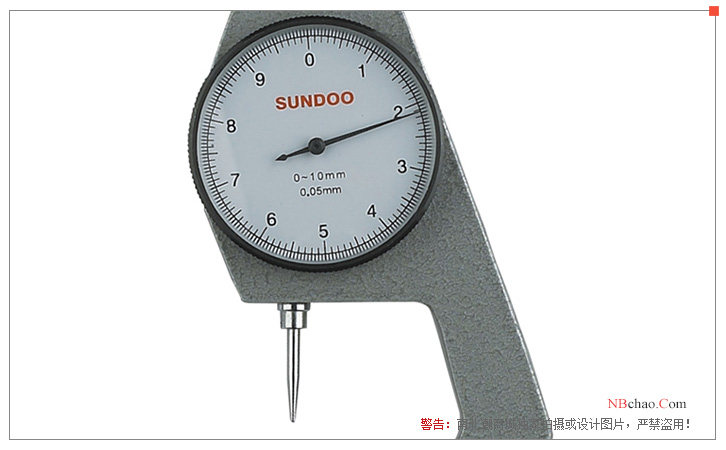

Shandu Instruments LP-3710 Pipe Wall Thickness Gauge Pressure Pin Detail

FAQ
QDoes the SUNDOO thickness gauge meet the QB/T1055 standard?
A The LP-3710 thickness gauge can be referred to.
