TAISITE 101-2DB desktop electric blast oven 250 ℃/136L oven

SE
TAISITE 101-2DB desktop electric blast oven Interior size 550 * 450 * 550mm, Chamber material high-strength carbon steel plate, is a 250 ℃ temperature control experimental Forced Air Drying Oven, 101-2DB temperature Control mode digital tube double row PID, temperature setting method Tap four buttons to set.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

TaiSiTe 101-2DB Electric Forced Air Drying OvenSPEC

TaiSiTe 101-2DB Electric Forced Air Drying OvenDetails

TaiSiTe 101-2DB Electric Forced Air Drying OvenPacking list

SKU
NB029034
Temperature range
RT+10~250°C
Temperature Fluctuation
±1.0℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5％
Volume
136L
Interior size
550*450*550mm
Chamber material
High strength carbon steel plate
Shelf (std.)
2pcs
Shelves (max)
17pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC220V/9.1A 50/60Hz
Input Power
2.0Kw
Dimensions
830*563*770mm
Net Weight
62kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube
Exhaust port
Inner diameter 28mm * 1, overhead test hole
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor
pt100
Packing size
978*698*940mm
Shelf spacing
25mm
Gross Weight
68Kg
Safety Devices
Overrise alarm
101-2DB
Electric Forced Air Drying Oven

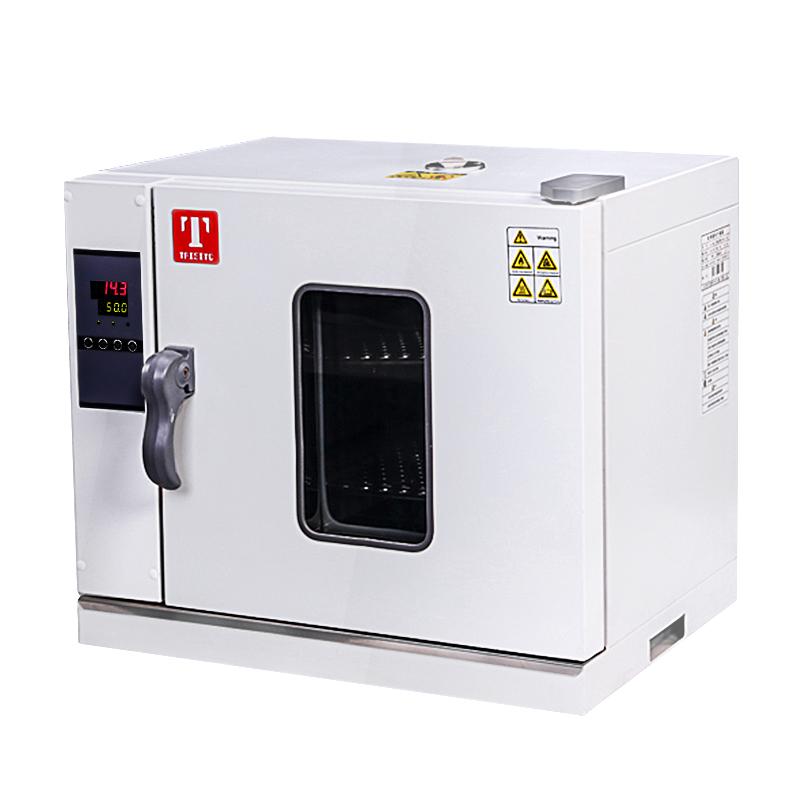

TAISITE 101-2DB desktop electric blast oven 250 ℃/136L oven Picture

Features

  • The patented horizontal wind circulation structure is conducive to air mixing, high space utilization rate and fast drying speed.

  • Convenient operation, fixed value operation, timing operation, automatic stop.

  • Dedicated function keys for temperature setting.

  • Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

  • Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50°C, and it can run for a long time.

  • Security: overheating alarm, menu lock.

Advantages

Figure 1: Multifunction Control Panel

Figure 2: Heating curve graph. The unit of time is minutes; the unit of temperature is ℃

Figure 3: Vent: multi-functional exhaust design

Parameter comparison

modelrated powerInternal volume
101-0D/101-0DB1.2KW43L
101-1D/101-1DB1.6KW71L
101-2D/101-2DB2.0KW136L
101-3D/101-3DB3KW225L
Other parameters
ConvectionSide channel forced convection
Operating temperature rangeRT+10～250℃
temperature resolution0.1°C
temperature fluctuation±1.0℃
Temperature distribution accuracy±2.5%
InteriorB: stainless steel plate without B: high-strength carbon steel plate
ExteriorCold-rolled steel sheet with chemical-resistant coating on the surface
Insulation materialAluminum silicate fiber
heaterstainless steel heating tube
exhaust ventInner diameter 28mm*1, top test hole
temperature control methodDigital tube double column PID
temperature setting methodTouch four buttons to set
Temperature representationMeasured temperature display: 4-digit upper display; set temperature display: 4-digit lower display
timer0～9999 minutes (with timing waiting function)
running functionFixed value operation, timing operation, automatic stop
program modeOptional
Additional featuresDeviation correction, menu key lock, power failure compensation, power failure memory
sensorpt100
safety devicesOverheating alarm


FAQ
QI want to do a test on the GB/T1714 standard, is this electric air blowing dryer okay?
A Sure
