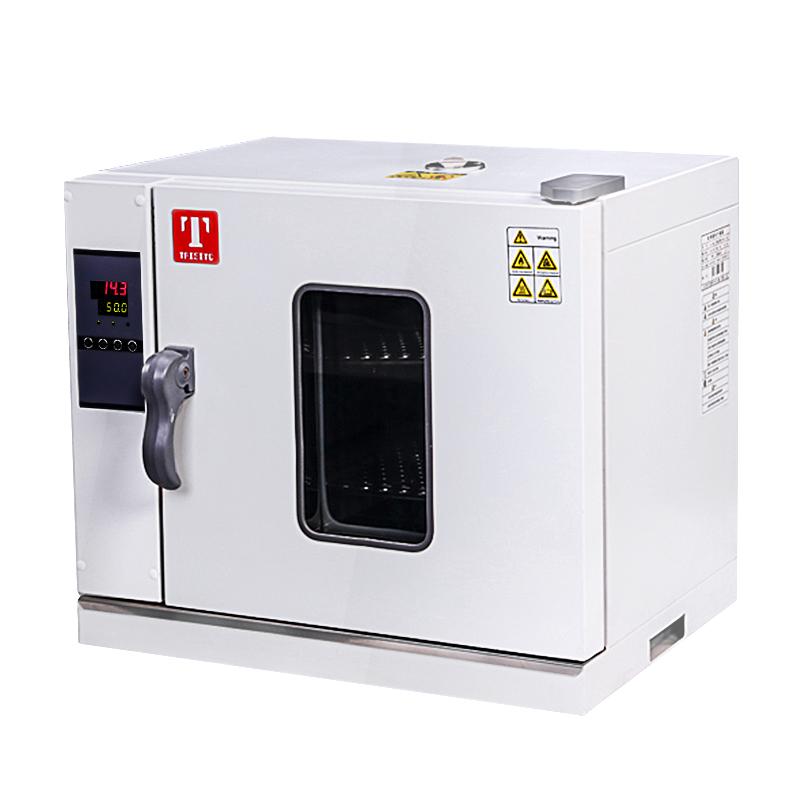

TAISITE 101-3D desktop Electric Forced Air Drying Oven 225L

TAISITE Electric Forced Air Drying Oven 101-3D Temperature range RT + 10~250 ℃, Temperature uniformity +/- 2.5%, is a stainless steel liner horizontal Forced Air Drying Oven, 101-3D with timing function, support over-rise alarm, liner size is 600 * 500 * 750mm, volume is 225L.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

TaiSiTe 101-3D Electric Forced Air Drying OvenSPEC

TaiSiTe 101-3D Electric Forced Air Drying OvenDetails

TaiSiTe 101-3D Electric Forced Air Drying OvenPacking list

SKU
NB029036
Temperature range
RT+10~250℃
Temperature Fluctuation
±1.0℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5％
Volume
225L
Interior size
600*500*750mm
Chamber material
stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
21pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power supply Voltage
AC220V/18.2A 50/60Hz
Input Power
3.0Kw
Dimensions
890*613*970mm
Net Weight
77kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal Insulation
aluminum silicate fiber
Heating mode
Stainless steel heating pipe
Exhaust Port
Should 28mm * 1, top
Thermostat
Digital tube double row PID
Temperature setting method
Tap the four-button setting
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Operational Features
Fixed value operation, regular operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power failure compensation, power failure memory
Temperature sensor
pt100
Packing size
1012*773*1160mm
Shelf spacing
25mm
Gross Weight
96Kg
Safety Devices
Over-rise alarm
101-3D
Electric Forced Air Drying Oven
TAISITE 101-3D desktop Electric Forced Air Drying Oven 225L Picture

Features

  • The transverse air circulation structure is conducive to air mixing, high space utilization, and fast drying rate.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.

  • The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50 °C, and the long-term longevity operation.

  • Security:Over-lift alarm, menu lock.

Advantages:

Figure 1:Multi-function control panel

Figure 2:Warming curve. Time is measured in minutes and temperature is measured in °C

Fig. 3: Exhaust holes: Multi-functional exhaust design

Parameter comparison

ModelRated powerContent volume
101-0D/101-0DB1.2KW43L
101-1D/101-1DB1.6KW71L
101-2D/101-2DB2.0KW136L
101-3D/101-3DB3KW225L
Other parameters
Convection modeSide air ducts force convection
Operating temperature rangeRT+10～250℃
Temperature resolution0.1℃
Temperature fluctuations±1.0℃
Temperature distribution accuracy±2.5％
Built-inB: Stainless steel plate None B: High-strength carbon steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
heaterStainless steel heating tubes
Exhaust outletsInner diameter 28mm*1, overhead test hole
Temperature control methodDigital tube double row PID
Temperature setting methodTap the four buttons to set it
Temperature representationMeasured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu key locking, power failure compensation, power failure memory
sensorpt100
Safety devicesOverlift alarm


FAQ
QMeet GB/T2679.11 electric air blowing dryer
A 101-3D electric air blowing dryer, please refer to it.
