LIULING CH-20 10kPa, 22kPa Benchtop Percent Special Gauge Thickness Gauge Ø 4 Upper Probe

SE
LIULING CH-20 rubber thickness gauge is a desktop pointer thickness gauge, in line with GB/T 7759.1, ISO 815-1 standards, measurement Film thickness 0~ 20mm, CH-20 on the probe diameter of 4mm, the lower table is 23mm diameter stainless steel plane.
$463.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con OI

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa desktop percentile thickness gaugeSPEC

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa desktop percentile thickness gaugeDetails

LiuLing CH-20Ø 4 upper probe 10kPa, 22kPa desktop percentile thickness gaugePacking list

SKU
NB029038
Measurement range
0~20mm
reading display
Pointer
Graduation
0.01mm
Pressure and mass required
①10kPa±2kPa (13g±2g)；②22kPa±5kPa (28 g± 6g)
Probe diameter
φ φ 56.42mm plane (2500mm2)
Meet the standard
GB/T 7759.1-2015；ISO 815-1:2008
upper probe diameter
φ 4mm plane
Lower workbench
φ 23mm stainless steel flat plus φ 80mm tray
CH-20Ø 4 upper probe
10kPa, 22kPa desktop percentile thickness gauge

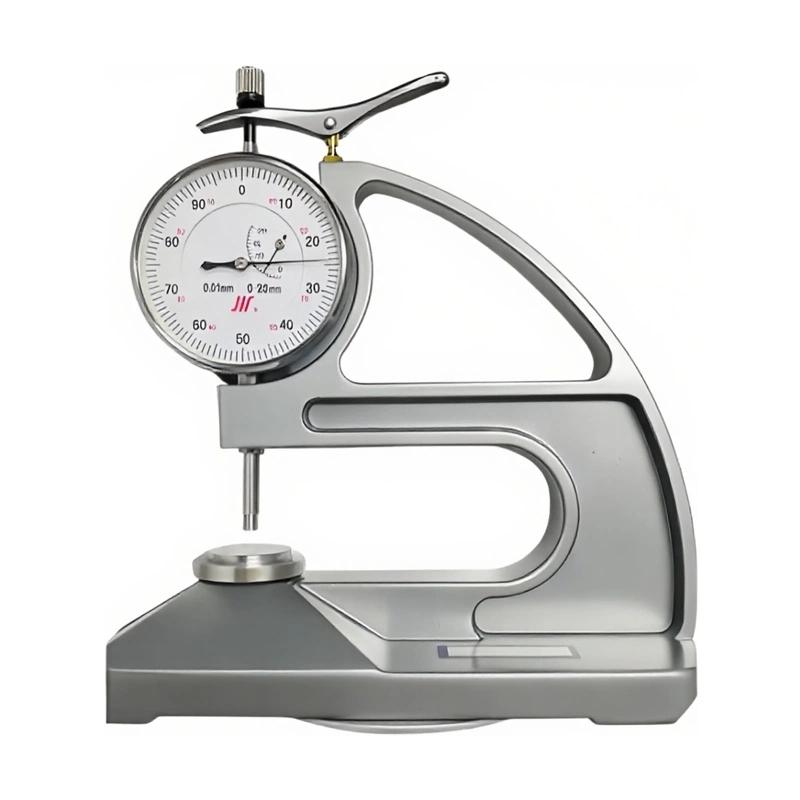

LIULING CH-20 10kPa, 22kPa Benchtop Percent Special Gauge Thickness Gauge Ø 4 Upper Probe Picture

Introduction

This Thickness Gauge is a Thickness Gauge customized according to customer requirements. It refers to the implementation of the national standard GB/T 7759.1-2015/ISO 815-1:2008 "Determination of permanent compression deformation of vulcanized rubber or thermoplastic rubber Part 1: Under normal temperature and high temperature conditions", Article 4.4: For hardness less than 35 IRHD The pressure applied to the rubber should be 10kPa±2kPa; the pressure applied to the rubber with a hardness greater than or equal to 35 IRHD should be 22kPa±5kPa. The Thickness Gauge has the characteristics of simple structure, convenient use and reliable quality.

FAQ
QI want to do a test about JJG (Light Industry) 50.2 standard, is this desktop rubber thickness gauge okay?
A Sure
