TAISITE 202-3AB horizontal thermostatic Drying Oven

Model：
Certificate
Contact
Details SPEC CAT
Similar products

TaiSiTe 202-3AB Electric thermostatic Drying OvenSPEC

TaiSiTe 202-3AB Electric thermostatic Drying OvenDetails

TaiSiTe 202-3AB Electric thermostatic Drying OvenPacking list

SKU
NB029046
Convection mode
Natural convection
Temperature range
RT+10~250°C
Temperature Resolution
0.1℃
Temperature Fluctuation
±1.0℃
Temperature Uniformity
±3.5％
Chamber material
stainless steel plate
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Nickel-chromium alloy heating wire OCr27A17Mo2
Input Power
4Kw
Exhaust port
Inner diameter 28mm * 2, rear; overhead test hole
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Timer
0~9999Min (with Timer waiting)
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor
pt100
Safety Devices
Overrise alarm
Interior size
600*500*750mm
Dimensions
860*623*985mm
Packing size
1020*804*1102mm
Volume
225L
Load per shelf
15kg
Shelf (std.)
21pcs
Shelf spacing
25mm
Power
AC220V/18.2A 50/60Hz rated current
Net Weight
77kg
Gross Weight
95Kg
Shelf (std.)
2pcs
Shelf (std.)
4pcs
202-3AB
Electric thermostatic Drying Oven

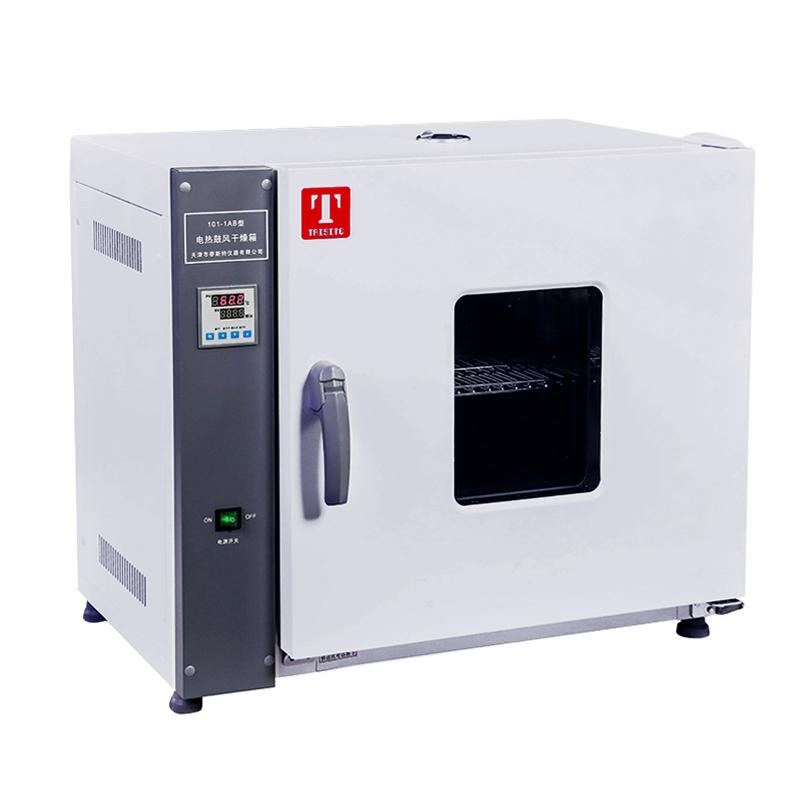

TAISITE 202-3AB horizontal thermostatic Drying Oven Picture

Features

1. The shell is formed by good cold-rolled steel plateThe surface is treated by a spraying process and used in the studioStainless steel or cold-rolled steel plate is processed and formed, and it is guardedRotting process treatment

2. The intelligent thermostat adopts P|D control programDual digital display, with timing function, temperature control fineTrue.

3. The middle of the door is equipped with double-layer tempered glass for observationwindow, which allows you to observe the heated items in the studio at any timesituation

4. The door is sealed with silicone rubber strips, and the sealing effect is good.

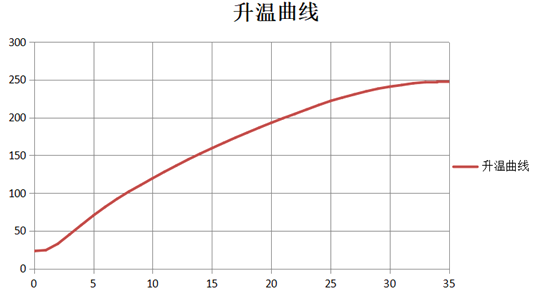

Tester 202-0A Electric Heating Constant Temperature Drying Oven Details Figure 1

  • Classic natural convection drying.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

  • Security –Over-lift alarm, menu lock.

apply

For drying, baking, and heat treatment

Serial models

ModelRated powerContent volumeNumber of partition layers
202-0A/AB1.2KW43L9 floors
202-1A/AB1.6KW71L13 floors
202-2A/AB2.0KW136L17 floors
202-3A/AB4KW225L21 floors
Other parameters
mannerNatural convection
Operating temperature rangeRT+10～250℃
Temperature resolution0.1℃
Temperature fluctuations±1.0℃
Temperature distribution accuracy±3.5％
Built-inB: Stainless steel plate None B: High-strength carbon steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
heaterNichrome heating wire OCr27A17Mo2
Exhaust outletsInner diameter 28mm*2, rear, overhead test hole
Temperature control methodDigital tube double row PID
Temperature setting methodTap the four buttons to set it
Temperature representationMeasured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu key locking, power failure compensation, power failure memory
sensorpt100
Safety devicesOverlift alarm
power supplyAC 220V
clapboard2 pcs
Partition shelves4 pcs
Configurations can be addedPartition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage


FAQ
QDoes this thermostatic drying oven meet the QB/T1552 standard?
A This electric thermostatic drying oven is suitable for QB/T1552. Please consult customer service for detailed application definition
QFind an oven with a temperature control of 85 ° C and a size of about 200L
A This 202-3AB electric thermostatic drying oven Temperature range 10~ 250 ℃, volume 225L, suitable for your requirements.
