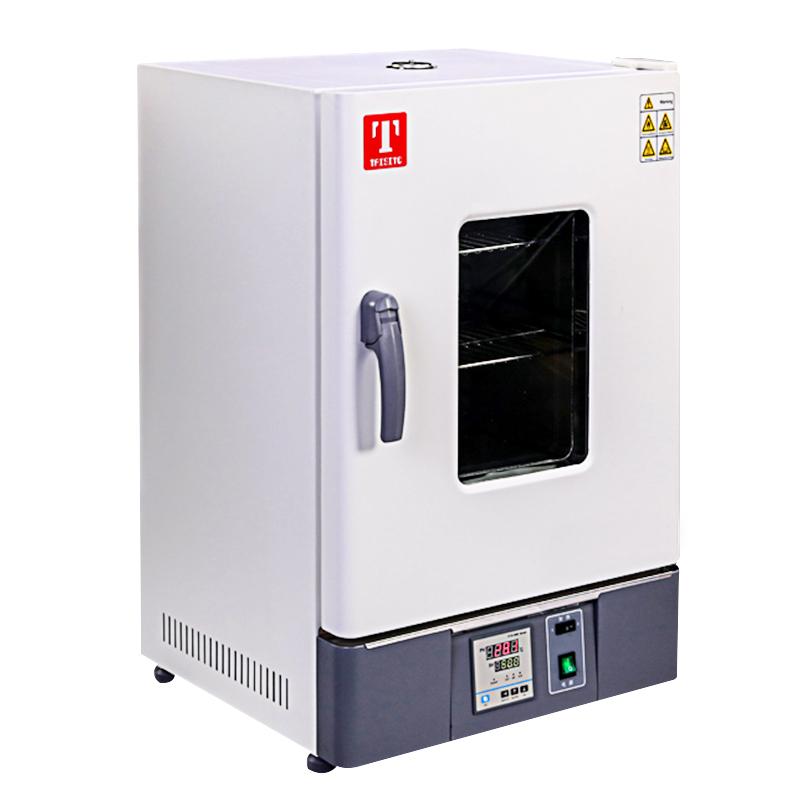

TAISITE WHLL-45BE Vertical electric thermostatic Drying Oven

TAISITE electrothermal thermostatic Drying Oven WHLL-45BE is a 45L volume, stainless steel inner material experimental thermostatic Drying Oven, with over-rise preventer, using liquid crystal dual-row PID temperature control, WHLL-45BE Temperature range RT + 10~300 ℃, Temperature Fluctuation +/- 1.0 ℃.
Model：
Certificate
Contact
Details SPEC CAT OI

TaiSiTe WHLL-45BE Electric thermostatic Drying OvenSPEC

TaiSiTe WHLL-45BE Electric thermostatic Drying OvenDetails

TaiSiTe WHLL-45BE Electric thermostatic Drying OvenPacking list

SKU
NB029054
Temperature range
RT+10~300°C
Temperature Fluctuation
±1.0℃
Temperature Resolution
0.1℃
Temperature Uniformity
±3.5％
Volume
45L
Interior size
350*350*350mm
Chamber material
stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
7pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC220V/5.5A 50/60Hz
Input Power
1.0Kw
Dimensions
485*480*730mm
Net Weight
37kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Nickel-chromium alloy heating wire OCr27A17Mo2
Exhaust port
Inner diameter 28mm * 1, top
thermostat
Liquid crystal dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer
Temperature sensor
pt100
Packing size
600*600*857mm
Shelf spacing
35mm
Gross Weight
43Kg
Safety Devices
Overlift alarm, overlift preventer
Convection mode
Natural convection
Shelf (std.)
2pcs
Shelf
4 pieces
WHLL-45BE
Electric thermostatic Drying Oven
TAISITE WHLL-45BE Vertical electric thermostatic Drying Oven Picture

Benefits:

  • Advantages: High precision, effectiveness, safety, wide range.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

Detail design advantages

Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.

Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

Fig. 3, exhaust hole: multi-functional exhaust hole design

Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.

Parameter comparison

ModelRated powerContent volume
WHL-30B/WHLL-30BE0.8KW30L
WHL-45B/WHLL-45BE1.0KW45L
WHL-65B/WHLL-65BE1.5KW65L
WHL-125B/WHLL-125BE2.5KW125L
Other parameters
Convection modeNatural convection
Operating temperature rangeRT+10～300℃
Temperature resolution0.1℃
Temperature fluctuations±1.0℃
Temperature distribution accuracy±3.5％
Built-inStainless steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
heaterNichrome heating wire OCr27A17Mo2
Temperature control methodType B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting methodTap the four buttons to set it
Temperature representationType B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
sensorpt100
Safety devicesOverlift Alarm (BE Type Overlift Arrester)
power supplyAC220V/3.6A 50/60Hz
FAQ
QThe machine can control the temperature of 215 ° C, and about 40L of test pieces need to be placed.
A The machine WH-45BE electric thermostatic drying oven Temperature range 10~ 300 ℃, the maximum can put 45L, properly.
