TAISITE GP-30B drying/foster dual-use box 30L

TAISITE GP-30B drying/foster dual-use box adopts double air duct forced convection method, the interior is stainless steel, digital tube double row PID temperature control, GP-30B foster temperature RT + 5~ 80 ℃, drying temperature 80~250 ℃, 6 layers Shelf.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

TaiSiTe GP-30B Drying/fostering dual-use boxSPEC

TaiSiTe GP-30B Drying/fostering dual-use boxDetails

TaiSiTe GP-30B Drying/fostering dual-use boxPacking list

SKU
NB029065
Temperature range
Foster: RT + 5~ 80 ℃; drying: 80~250 ℃
Temperature Fluctuation
A.±0.5℃；B.±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
Foster +/- 1.0 ℃; drying +/- 2.5%
Volume
30L
Interior size
310*310*310mm
Chamber material
stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
6pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC220V/3.6A 50/60Hz
Input Power
Foster: 0.3Kw; drying: 0.8Kw
Dimensions
445*440*690mm
Net Weight
32kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube
Exhaust port
Inner diameter 28mm * 1, top
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan
Temperature sensor
pt100
Packing size
560*560*830mm
Shelf spacing
35mm
Gross Weight
37Kg
Safety Devices
Overrise alarm
Convection mode
Double duct forced convection
Shelf (std.)
2pcs
Shelf (std.)
4pcs
GP-30B
Drying/fostering dual-use box

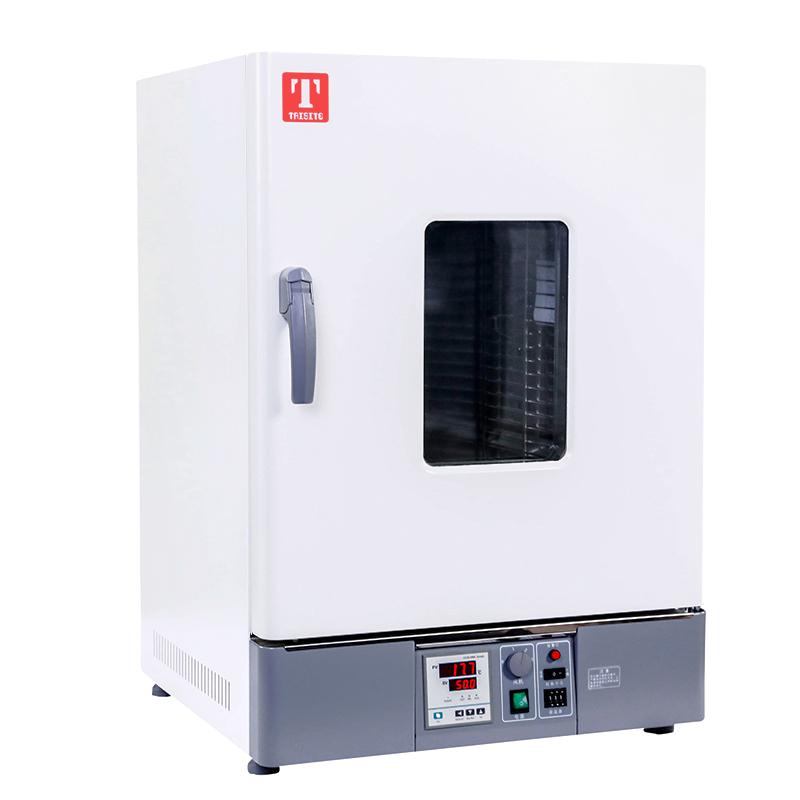

TAISITE GP-30B drying/foster dual-use box 30L Picture

Benefits:

  • Drying, baking, wax melting, heat treatment and bacterial culture are all in one box

  • High precision, high efficiency, safety, wide range.

  • Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.

  • Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

  • Speed-controlled fans enable the use of lightweight, fine, powdery samples.

  • The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.

Detail design advantages

Figure 1: Heating curve: time unit: minutes, temperature unit: °C

Figure 2,Multi-functionalAble to control the panel



Parameter comparison

ModelheaterContent volumeNumber of partition layers
GP-30B/BEStainless steel heating tubes30L6 floors
GP-45B/BEStainless steel heating tubes45L7 floors
GP-65B/BEStainless steel heating tubes65L9 floors
GP-125B/BEStainless steel heating tubes125L13 floors
GP-230B/BENichrome heating wire230L17 floors
Other parameters
mannerDual air ducts force convection
Operating temperature rangeIncubation RT+5~80°C and drying 80~250°C
Temperature resolution0.1℃
Temperature fluctuationsIncubation ± 0.5 °C dry ± 1 °C
Temperature distribution accuracyIncubation± 1.0 °C dry ± 2.5%
Built-inStainless steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
Exhaust outletsInner diameter 28mm*1, top
Temperature control methodType B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting methodTap the four buttons to set it
Temperature representationType B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
sensorpt100
Safety devicesOverlift Alarm (BE Type Overlift Arrester)
clapboard2 pcs
Partition shelves4 pcs
Configurations can be added(GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage


FAQ
QThis drying oven can control the temperature of 185 ℃, can accommodate 30L?
A Can meet, GP-30B drying/foster dual-use box Temperature range 80~ 250 ℃, volume 30L.
QCan this drying foster dual-use case be applied to GB/T2679.11?
A OK
