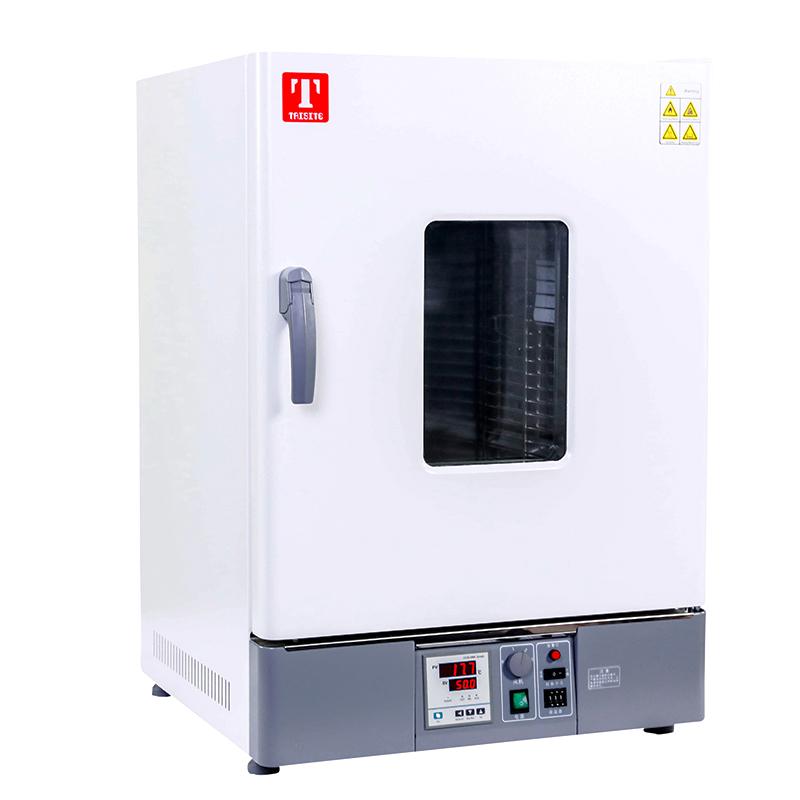

TAISITE GP-230B drying/fostering dual-use box 230L
TAISITE GP-230B drying/foster dual-use box Interior size 600 * 500 * 750mm, volume 230L, is an experimental drying Incubator, foster temperature control RT + 5~ 80 ℃, drying temperature control 80~250 ℃, using nickel-chromium alloy heating wire heating device.
Model：
GP-230B
Similar products
-
SANFA HP-240A Drying Oven/Incubator (dual-use)$ 935.00SE -
HUITAI PH-240A dry culture dual-use box, volume 220L -
Kenton DHG-9230 Precision experimental blast drying oven with independent temperature limiter$ 860.00SE -
Kenton DHG-9230C precision digital thermostatic oven 230L with independent temperature limiter$ 786.00SE -
YIHENG PH-240A Drying Oven/Incubator High temperature Drying Oven Input Power 2450W$ 1084.00SE
TaiSiTe GP-230B Drying/fostering dual-use boxSPEC
TaiSiTe GP-230B Drying/fostering dual-use boxDetails
TaiSiTe GP-230B Drying/fostering dual-use boxPacking list
- SKU
- NB029069
- Temperature range
- Foster: RT + 5~ 80 ℃; drying: 80~250 ℃
- Temperature Fluctuation
- A.±0.5℃；B.±1℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- Foster +/- 1.0 ℃; drying +/- 2.5%
- Volume
- 230L
- Interior size
- 600*500*750mm
- Chamber material
- stainless steel plate
- Shelf (std.)
- 2pcs
- Shelves (max)
- 17pcs
- Load per shelf
- 15kg
- Timer
- 0~9999Min (with Timer waiting)
- Power supply Voltage
- AC220V/13.6A 50/60Hz
- Input Power
- Foster: 0.7Kw; drying: 3.0Kw
- Dimensions
- 735*625*1220mm
- Net Weight
- 84kg
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal Insulation
- aluminum silicate fiber
- Heating mode
- Nickel chromium alloy heating wire
- Exhaust Port
- Should 28mm * 2, top
- Thermostat
- Digital tube double row PID
- Temperature setting method
- Tap the four-button setting
- Temperature representation
- Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
- Operational Features
- Fixed value operation, regular operation, automatic stop
- Program Mode
- optional
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory, constant speed fan
- Temperature sensor
- pt100
- Packing size
- 898*814*1347mm
- Shelf spacing
- 35mm
- Gross Weight
- 100Kg
- Safety Devices
- Over-rise alarm
- Convection mode
- Double duct forced convection
- Shelf (std.)
- 2pcs
- Shelf (std.)
- 4pcs
GP-230B
Drying/fostering dual-use box
Benefits:
Drying, baking, wax melting, heat treatment and bacterial culture are all in one box
High precision, high efficiency, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop. PID thermostat, accurate temperature control.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.
Speed-controlled fans enable the use of lightweight, fine, powdery samples.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.
Design advantages
Figure 1: Heating curve: time unit: minutes, temperature unit: °C
Figure 2,Multi-functionalAble to control the panel
Figure 1 Figure 2
Parameter comparison
| Model | heater | Content volume | Number of partition layers |
| GP-30B/BE | Stainless steel heating tubes | 30L | 6 floors |
| GP-45B/BE | Stainless steel heating tubes | 45L | 7 floors |
| GP-65B/BE | Stainless steel heating tubes | 65L | 9 floors |
| GP-125B/BE | Stainless steel heating tubes | 125L | 13 floors |
| GP-230B/BE | Nichrome heating wire | 230L | 17 floors |
| Other parameters | |||
| manner | Dual air ducts force convection | ||
| Operating temperature range | Incubation RT+5~80°C and drying 80~250°C | ||
| Temperature resolution | 0.1℃ | ||
| Temperature fluctuations | Incubation ± 0.5 °C dry ± 1 °C | ||
| Temperature distribution accuracy | Incubation± 1.0 °C dry ± 2.5% | ||
| Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistance * quality coating | ||
| Insulating materials | Aluminum silicate fiber | ||
| Exhaust outlets | Inner diameter 28mm*1, top | ||
| Temperature control method | Type B: Digital tube double-row PID;BE type: LCD double-row PID | ||
| Temperature setting method | Tap the four buttons to set it | ||
| Temperature representation | Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | ||
| BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display | |||
| timer | 0~9999 minutes (with timed waiting function) | ||
| Run the function | Fixed-value operation, timed operation, automatic stop | ||
| Program mode | Matching | ||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer) | ||
| sensor | pt100 | ||
| Safety devices | Overlift Alarm (BE Type Overlift Arrester) | ||
| clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | ||
| Configurations can be added | (GPBE type) partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage | ||
FAQ
QCan all drying foster dual-use boxes be used for testing in the GB/T 5211.3 standard?
A
Not necessarily, but this GP-230B drying foster dual-use box can be considered.
