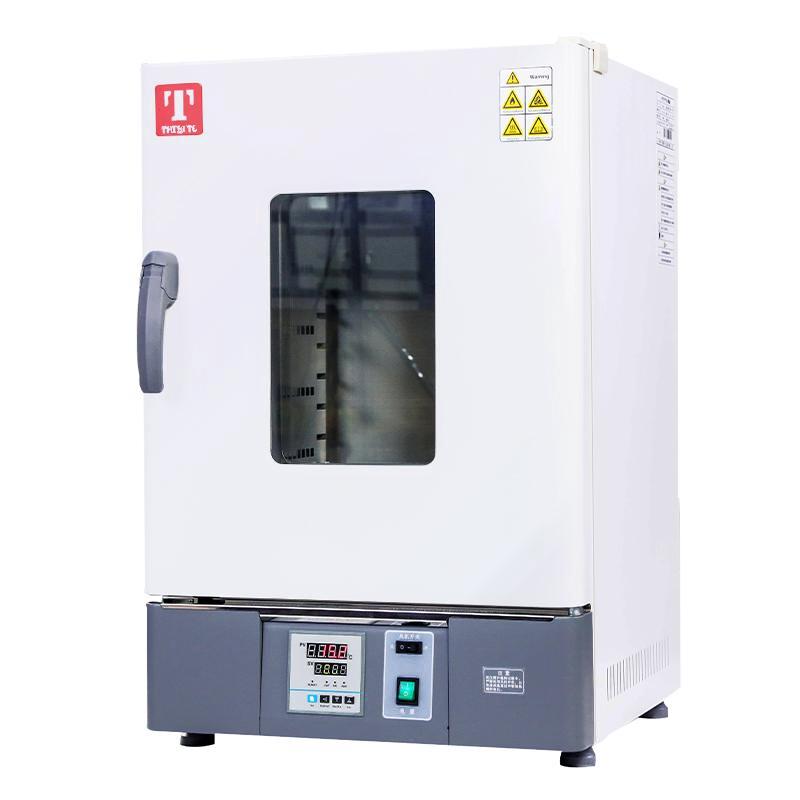

TAISITE GX30B Hot Air Sterilizer 300 ℃/30L

TAISITE GX30B hot air disinfection box adopts dual air duct forced convection, Temperature range RT + 10~300 ℃, is an experimental dry baking sterilizing box, GX30B studio volume is 30L, Power is 0.8KW, using digital tube double row PID temperature control.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

TaiSiTe GX30B Hot air sterilizerSPEC

TaiSiTe GX30B Hot air sterilizerDetails

TaiSiTe GX30B Hot air sterilizerPacking list

SKU
NB029097
Temperature range
RT+10~300°C
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5％
Volume
30L
Interior size
310*310*310mm
Chamber material
stainless steel plate
Shelf (std.)
2pcs
Shelves (max)
6pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC220V/3.6A 50/60Hz
Input Power
0.8Kw
Dimensions
445*440*690mm
Net Weight
32kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube
Exhaust port
Inner diameter 28mm * 1, top
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, speed control fan
Temperature sensor
pt100
Packing size
560*560*830mm
Shelf spacing
35mm
Gross Weight
37Kg
Safety Devices
Overrise alarm
Convection mode
Double duct forced convection
Shelf (std.)
2pcs
Shelf (std.)
4pcs
GX30B
Hot air sterilizer
TAISITE GX30B Hot Air Sterilizer 300 ℃/30L Picture

Benefits:

  • Rapid, safe and reliable sterilization.

  • Convenient operation, fixed value operation, timed operation, automatic stop.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

  • Vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

  • Speed-controlled fans enable the use of lightweight, fine, powdery samples.

  • The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50°C, and the operation is long-lasting for a long time.

Detail design advantages

Figure 1LCD multi-data control panel:Multi-data full-screen operation, power failure memory, power failure compensation (BE model).

Figure 2, multi-functional safety lock: safe and secure.

Figure 3,Furnace temperatureDegree Rise Chart:The temperature rise curve is professional because it is accurate.

Figure 4,partitionThermal Safety Door:It is not hot to stand around the instrument at work.

Tester GX30B Hot Air Disinfection Box Details Figure 1 Tester GX30B Hot Air Sterilizer Details Figure 2 Tester GX30B Hot Air Sterilizer Details Figure 3 Tester GX30B Hot Air Sterilizer Details Figure 4

                          Fig.1 Fig.2 Fig.3 Fig.4

Parameter comparison

ModelRated powerContent volumeNumber of partition layers
GX30B/GX30BE0.8KW30L6 floors
GX45B/GX45BE1.2KW45L7 floors
GX65B/GX65BE1.6KW65L9 floors
GX125B/GX125BE2.3KW125L13 floors
GX230B/GX230BE3KW230L17 floors
Other parameters
mannerDual air ducts force convection
Operating temperature rangeRT+10～300℃
Temperature resolution0.1℃
Temperature fluctuations±1℃
Temperature distribution accuracy±2.5％
Built-inStainless steel plate
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
Temperature control methodType B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting methodTap the four buttons to set it
Temperature representationType B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display
BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer0~9999 minutes (with timed waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
sensorpt100
Safety devicesOverlift Alarm (BE Type Overlift Arrester)
clapboard2 pcs
Partition shelves4 pcs
Configurable (GXBE type)Partition, RS485 interface, printer, Recorder, external communication, remote control, program thermometer, wireless SMS alarm, U disk data storage
power supplyAC 220V 50/60Hz


FAQ
QCan I put 30L samples at about 225 ° C thermostatic?
A This model is suitable for GX30B hot air sterilization box Temperature range 10~ 300 ℃, can accommodate 30L.
