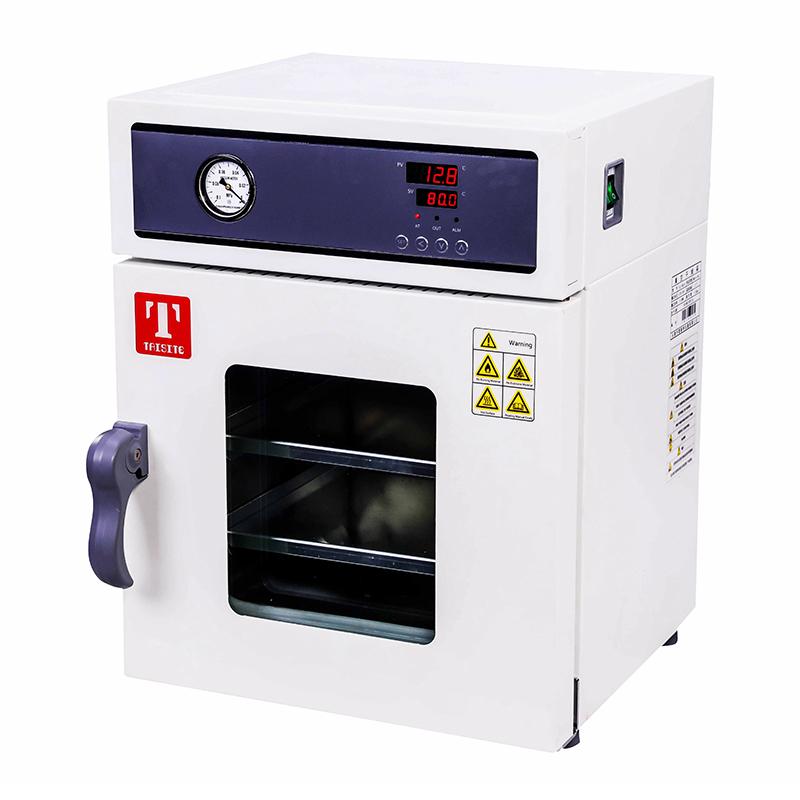

TAISITE DZ-3AIV Vacuum Oven 250 ℃/91L

TAISITE DZ-3AIV vertical Vacuum Oven is a four-wall Heating mode, using stainless steel heating tube heater, equipped with 2 shelves, Shelf spacing 185mm, DZ-3AIV Temperature range RT + 10~250 ℃, Power is 2.0KW, Peripheral with bulletproof tempered Glass observation window.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

TaiSiTe DZ-3IV Vacuum OvenSPEC

TaiSiTe DZ-3IV Vacuum OvenDetails

TaiSiTe DZ-3IV Vacuum OvenPacking list

SKU
NB029111
Temperature range
RT+10~250°C
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5％
Volume
91L
Interior size
450*450*450mm
Chamber material
Carbon steel
Shelf (std.)
2pcs
Shelves (max)
2pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC380V/9.1A 50/60Hz
Input Power
2.0Kw
Dimensions
640*590*780mm
Net Weight
82kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube 4-sided heating
Exhaust port
F12mm
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 3-4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor
pt100
Packing size
769*755*905mm
Shelf spacing
185mm
Gross Weight
105Kg
Safety Devices
Overrise alarm
Heating mode
Decompression, four-wall heating
Shelf (std.)
2pcs
Shelf (std.)
4pcs
vacuum
<133Pa
Heating rate
120min
Viewing Window
Bulletproof Tempered Glass
Vacuum Meter
Pointer
suction port
F12mm
DZ-3IV
Vacuum Oven
TAISITE DZ-3AIV Vacuum Oven 250 ℃/91L Picture

Introduction

It is specially designed for drying heat-sensitive, easily decomposing, and oxidizing substances, and can be filled with inert gas.

Benefits:

  • PID thermostat, accurate temperature control.

  • Adjustable door lock, self-adaptive observation window frame, one-time molding silicone sealing strip to ensure long-term stable sealing.

  • Dedicated function keys enable temperature setting.

  • Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

Detail design advantages

Figure 1Temperature rise graph: time unit: minutes, temperature unit: °C.

Fig. 2, thickened partition and heat-insulating glass: independent thickened detachable partition, thickened heat-insulating glass design, comfortable experiment.

Figure 3,Multi-function control panel.

Tester DZ-3AIV Vacuum Drying Oven Details Figure 1 Tester DZ-3AIV Vacuum Drying Oven Details Figure 2 Tester DZ-3AIV Vacuum Drying Oven Details Figure 3

                                          Fig.1 Fig.2 Fig.3

Parameter comparison

ModelHeating timeBuilt-inRated powerContent volume
DZ-1AIV80mincarbon steel0.8KW24L
DZ-1BCIV80minstainless steel0.8KW24L
DZ-2AIV100mincarbon steel1.4KW52L
DZ-2BCIV100minstainless steel1.4KW52L
DZ-3AIV120mincarbon steel2.0KW91L
DZ-3BCIV120minstainless steel2.0KW91L
Other parameters
mannerDecompression, four-wall heating
Operating temperature range RT+10～250℃
Use the vacuum range﹤133PA
Temperature resolution0.1℃
Temperature fluctuations±1 ℃
ExteriorCold-rolled steel plate, surface resistance * quality coating
Insulating materialsAluminum silicate fiber
heaterStainless steel heating pipes are heated on all sides
Observation windowBulletproof tempered glass
Vacuum gaugePointer
Temperature control methodDigital tube double row PID
Temperature setting methodTap the four buttons to set it
Temperature representationMeasured temperature display: 4-digit digital upper display, set temperature display: 3-4-digit digital lower display
timer0~9999min (with timing waiting function)
Run the functionFixed-value operation, timed operation, automatic stop
Program modeMatching
Additional featuresDeviation correction, menu key locking, power failure compensation, power failure memory
sensorpt100
Safety devicesOverlift alarm
Number of partition layers2 floors
Inhalation portΦ12mm
Exhaust outletsΦ12mm
Configurations can be addedPartitions, Vacuum Pumps, Recorders


FAQ
QVacuum oven, vacuum pump need to buy separately?
A Yes.
QTemperature control at 155 ° C, size 80L up and down drying oven is recommended
A Yes, DZ-3AIV Vacuum oven Temperature range 10~ 250 ℃, capacity 91L, to meet your requirements.
QI want to do a test on the GB/T2679.11 standard, is this Vacuum oven okay?
A Sure
