TAISITE DZ-3BCIV Vacuum Oven 250 ℃/91L

SE
TAISITE DZ-3BCIV Vertical Vacuum Oven Temperature range RT + 10~250 ℃, Temperature Fluctuation +/- 1 ℃, Interior size 450 * 450 * 450mm, Chamber material stainless steel, DZ-3BCIV designed adjustable door lock, Adaptive observation window frame, with over-rise alarm function, Heating time is 120 minutes.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

TaiSiTe DZ-3BCIV Vacuum OvenSPEC

TaiSiTe DZ-3BCIV Vacuum OvenDetails

TaiSiTe DZ-3BCIV Vacuum OvenPacking list

SKU
NB029112
Temperature range
RT+10~250°C
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Temperature Uniformity
±2.5％
Volume
91L
Interior size
450*450*450mm
Chamber material
stainless steel
Shelf (std.)
2pcs
Shelves (max)
2pcs
Load per shelf
15kg
Timer
0~9999Min (with Timer waiting)
Power
AC380V/9.1A 50/60Hz
Input Power
2.0Kw
Dimensions
640*590*780mm
Net Weight
82kg
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube 4-sided heating
Exhaust port
F12mm
thermostat
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Measuring temperature display: 4-digit digital upper display; setting temperature display: 3-4-digit digital lower display
Run function
Fixed value operation, Timer operation, automatic stop
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Temperature sensor
pt100
Packing size
769*755*905mm
Shelf spacing
185mm
Gross Weight
105Kg
Safety Devices
Overrise alarm
Heating mode
Decompression, four-wall heating
Shelf (std.)
2pcs
Shelf (std.)
4pcs
vacuum
<133Pa
Heating rate
120min
Viewing Window
Bulletproof Tempered Glass
Vacuum Meter
Pointer
suction port
F12mm
DZ-3BCIV
Vacuum Oven

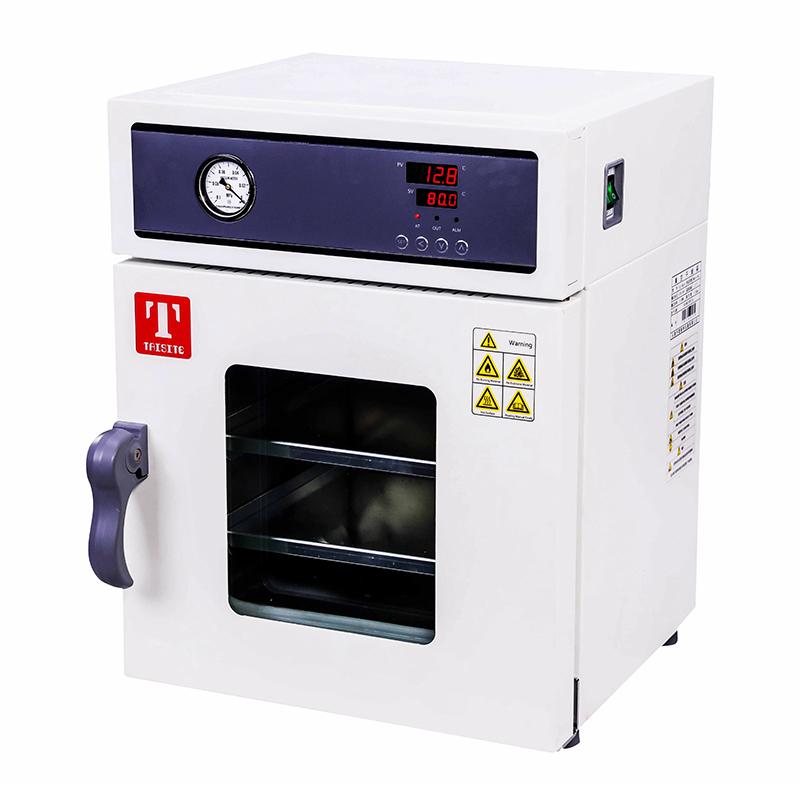

TAISITE DZ-3BCIV Vacuum Oven 250 ℃/91L Picture

Introduction

It is specially designed for drying heat-sensitive, easy-to-decompose, easy-to-oxidize substances, and can be filled with inert gas.

product advantages

  • PID temperature controller, precise temperature control.

  • Adjustable door locks, self-adaptive observation window frames, and one-time molding silicone sealing strips ensure long-term stable sealing.

  • Dedicated function keys for temperature setting.

  • Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

Advantages of detailed design

figure 1,Heating curve: time unit: minute, temperature unit: ℃.

Figure 2. Thickened partitions and heat-insulating glass: independent thickened and removable partitions, thickened heat-insulated glass design, comfortable experiment .

image 3,Multifunctional control panel .

Details of Tester DZ-3BCIV vacuum Drying Oven 1 Details of Tester DZ-3BCIV vacuum Drying Oven 2 Details of Tester DZ-3BCIV vacuum Drying Oven 3

                                          Figure 1 Figure 2 Figure 3

Parameter comparison

modelHeating timeInteriorrated powerInternal volume
DZ-1AIV80mincarbon steel0.8KW24L
DZ-1BCIV80minStainless steel0.8KW24L
DZ-2AIV100mincarbon steel1.4KW52L
DZ-2BCIV100minStainless steel1.4KW52L
DZ-3AIV120mincarbon steel2.0KW91L
DZ-3BCIV120minStainless steel2.0KW91L
Other parameters
WayDecompression, four-wall heating
Operating temperature range RT+10～250℃
Use vacuum range<133 PA
temperature resolution0.1°C
temperature fluctuation±1°C
ExteriorCold-rolled steel sheet with chemical-resistant coating on the surface
Insulation materialAluminum silicate fiber
heaterStainless steel heating tube heating on all sides
Observation windowbulletproof tempered glass
vacuum gaugePointer
temperature control methodDigital tube double column PID
temperature setting methodTouch four buttons to set
Temperature representationMeasured temperature display: 4-digit upper display; set temperature display: 3-4 digital lower display
timer0～9999min (with timing waiting function)
running functionFixed value operation, timing operation, automatic stop
program modeOptional
Additional featuresDeviation correction, menu key lock, power failure compensation, power failure memory
sensorpt100
safety devicesOverheating alarm
Partition layers2 layer
suction portΦ12mm
exhaust ventΦ12mm
configuration can be addedPartition, Vacuum Pump, Recorder


FAQ
QVacuum oven, vacuum pump need to buy separately?
A Yes.
QFind an oven with a temperature control of 155 ° C and a size of about 80L
A The machine DZ-3BCIV Vacuum oven Temperature range 10~ 250 ℃, the maximum can put 91L, properly.
QDo you have the Vacuum oven mentioned in GB/T 2679.11?
A The DZ-3BCIV Vacuum oven will do
