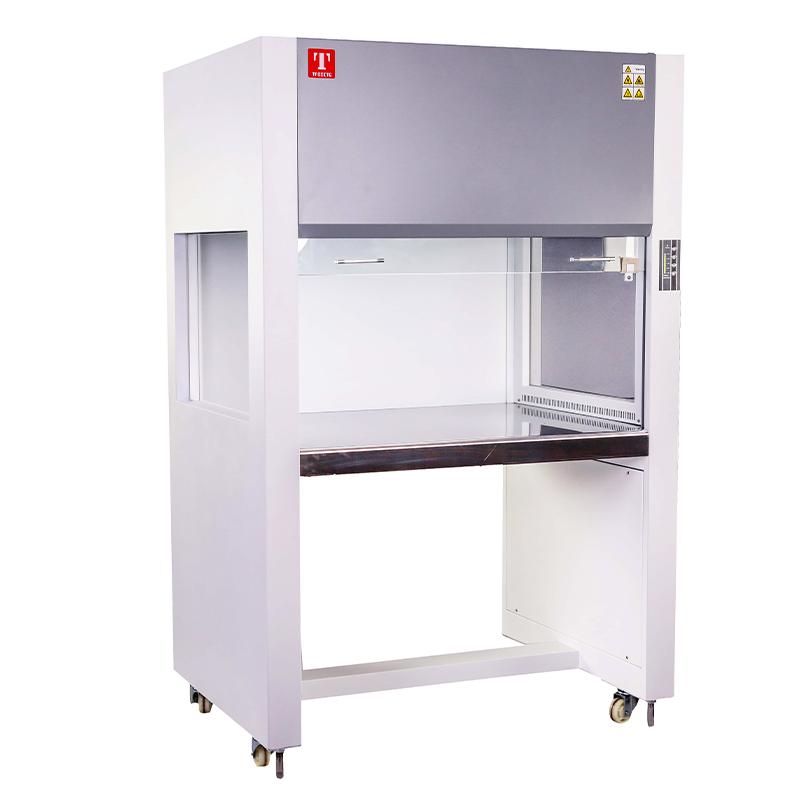

TAISITE CJ-1D Laminar Flow Cabinet Single-Sided, Single Operator
SETAISITE CJ-1D Laminar Flow Cabinet is suitable for single person single-sided workstation, vertical airflow direction, cleanliness level 100, collection efficiency of 0.5um particles is more than 99.9%, colony number ≤ 0.5/dish (φ90mm culture dish), wind speed Initial: 0.6; End: 0.2 (m/sec), wind speed adjustment range 0.2-0.6 (m/sec), noise ≤ 62db
Model：
CJ-1D
Similar products
-
SuJie VD-850 desktop superclean bench single single side$ 758.00SE -
SuJie VD-650 desktop superclean bench single single side$ 626.00SE -
SuJie VS-840U clean workbench, single-sided, vertical laminar flow$ 1000.00SE -
SuJie SJ-CJ-1FD standard clean workbench, single person, single side, vertical flow$ 888.00SE -
BENTING CSW-CJ-1FD single person single vertical air supply Laminar Flow Cabinet standard type
TaiSiTe CJ-1D Laminar flow cabinetSPEC
TaiSiTe CJ-1D Laminar flow cabinetDetails
TaiSiTe CJ-1D Laminar flow cabinetPacking list
- SKU
- NB029135
- type
- Single person single side
- Air flow
- Vertical
- Cleanliness class
- Level 100
- collection efficiency
- 0.5Um particles 99.9% or more
- Average colony count
- ≤ 0.5 pcs/dish (φ90mm culture dish)
- Adjustable Wind Speed Range
- Initial: 0.6; End: 0.2 (m/sec)
- Adjustable Wind Speed Range
- 0.2-0.6（m/sec)
- Noise
- ≤62dB(A)
- Vibration Half-Amplitude
- ≤3um
- Illumrination degree
- ≥300Lx
- Working surface load bearing
- 50kg
- Interior
- stainless steel plate
- Exterior
- Cold rolled steel plate, surface resistance painting
- Work door
- Tempered Glass
- HEPA Filter
- 820*600*50mm
- Primary Filter
- 520 * 490 * 5 each
- Fluorescent lamp
- 20W*①
- UV Lamps
- 20W*①
- Fan
- 300W
- Level adjustment
- Adjustment foot (40mm)
- Controller
- LED Controller
- Fan location
- overhead
- Workspace size
- 780*670*550mm
- Dimensions
- 935*725*1690mm
- Packaging Dimensions
- 1210*890*1755mm
- Maximum Power
- 0.4kw
- Power
- AC220V/1.8A 50/60Hz rated current
- Net Weight
- 151KG
- Gross Weight
- 205KG
CJ-1D
Laminar flow cabinet
Vertical flow, the airflow direction is from the top to the bottom of the work space/horizontal flow, the airflow direction is from the back to the front
Features
1. Low noise, touch the button, multi-level wind speed adjustment
2. Vertical air supply, sliding door to stop at will
3. No F series: integrated structure + LED indicator controller
4. -F series: detachable split structure + LED indicator controller
-FS series: detachable split structure + LCD intelligent controller
5. The detachable split structure can be used on the platform alone
6. Strengthened glass, quasi-closed table top, prevent external airflow from pouring back
Models
| model | Applicable station | Airflow direction | fluorescent light | UV lamp |
| CJ-1D | single sided | vertical | 20W*1 | 20W*1 |
| CJ-1S | single sided | vertical | 20W*1 | 20W*1 |
| CJ-2D | double sided | vertical | 30W*1 | 30W*1 |
| CJ-2S | double sided | vertical | 30W*1 | 30W*1 |
| HS840 | single sided | level | 20W*1 | 20W*1 |
| HS1300 | double sided | level | 30W*1 | 30W*1 |
| Other parameters | ||||
| cleanliness | Level 100 | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| fan | 300W | |||
| level adjustment | Adjustment feet (40mm) | |||
| controller | LED controller | |||
