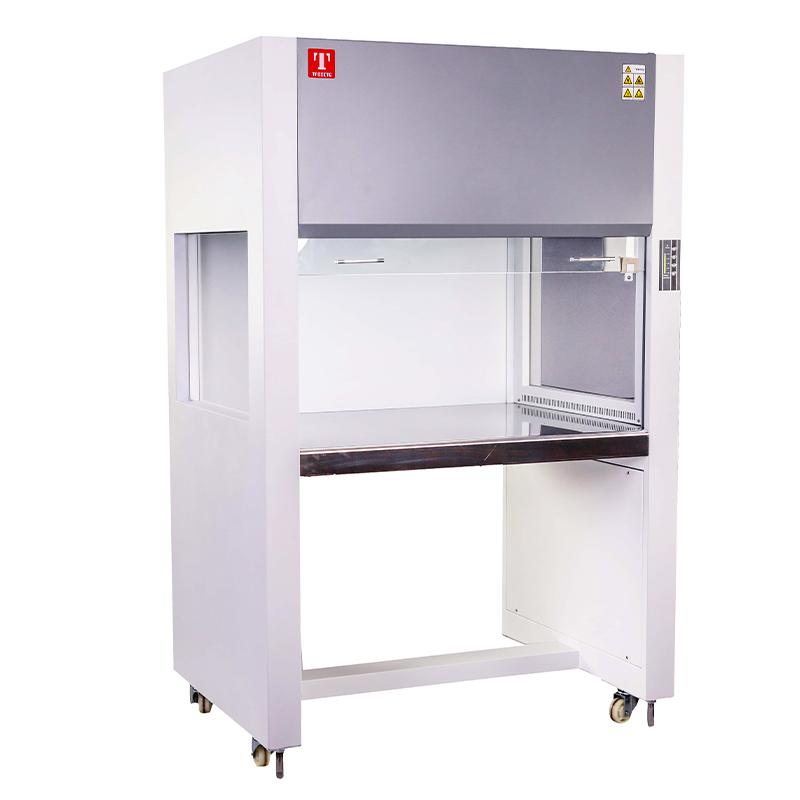

TAISITE CJ-2D Laminar Flow Cabinet double person single side
SETAISITE CJ-2D Laminar Flow Cabinet is suitable for Single-Sided, Dual Operator workstation, vertical airflow direction, cleanliness level 100, collection efficiency 0.5um particles above 99.9%, controller LED controller, fan position overhead, inner size 1310 * 710 * 550mm
Model：
CJ-2D
Similar products
-
SUJIE SJ-CJ-2FD Standard Clean Bench Single-Sided, Dual Operator Vertical Laminar Flow$ 1226.00SE -
SuJie ZNC-1500 double single-sided superclean bench 1400 × 580 × 520mm$ 1563.00SE -
SuJie VD-1300 Desktop Clean Workbench, Double Single Side$ 944.00SE -
SuJie SJ-CJ-2FDQ superclean bench double single-sided, all stainless steel structure$ 1600.00SE -
SuJie SJ-CJ-1FDQ superclean bench single-sided, all stainless steel structure$ 1076.00SE
TaiSiTe CJ-2D Laminar flow cabinetSPEC
TaiSiTe CJ-2D Laminar flow cabinetDetails
TaiSiTe CJ-2D Laminar flow cabinetPacking list
- SKU
- NB029137
- type
- Single-Sided, Two Workstations
- Air flow
- Vertical
- Cleanliness class
- Level 100
- collection efficiency
- 0.5Um particles 99.9% or more
- Average colony count
- ≤ 0.5 pcs/dish (φ90mm culture dish)
- Adjustable Wind Speed Range
- Initial: 0.6; End: 0.2 (m/sec)
- Adjustable Wind Speed Range
- 0.2-0.6（m/sec)
- Noise
- ≤62dB(A)
- Vibration Half-Amplitude
- ≤3um
- Illumrination degree
- ≥300Lx
- Working surface load bearing
- 50kg
- Interior
- stainless steel plate
- Exterior
- Cold rolled steel plate, surface resistance painting
- Work door
- Tempered Glass
- HEPA Filter
- 610*610*50mm
- Primary Filter
- 520 * 490 * 5 two
- Fluorescent lamp
- 30W*①
- UV Lamps
- 30W*①
- Fan
- 300W
- Level adjustment
- Adjustment foot (40mm)
- Controller
- LED Controller
- Fan location
- overhead
- Workspace size
- 1310*710*550mm
- Dimensions
- 1487*733*1690mm
- Packaging Dimensions
- 1660*890*1755mm
- Maximum Power
- 0.8kw
- Power
- AC220V/3.6A 50/60Hz rated current
- Net Weight
- 159KG
- Gross Weight
- 218KG
CJ-2D
Laminar flow cabinet
Vertical flow, the airflow direction is from the top to the bottom of the work space/horizontal flow, the airflow direction is from the back to the front
Features
1. Low noise, touch the button, multi-level wind speed adjustment
2. Vertical air supply, sliding door to stop at will
3. No F series: integrated structure + LED indicator controller
4. -F series: detachable split structure + LED indicator controller
-FS series: detachable split structure + LCD intelligent controller
5. The detachable split structure can be used on the platform alone
6. Strengthened glass, quasi-closed table top, prevent external airflow from pouring back

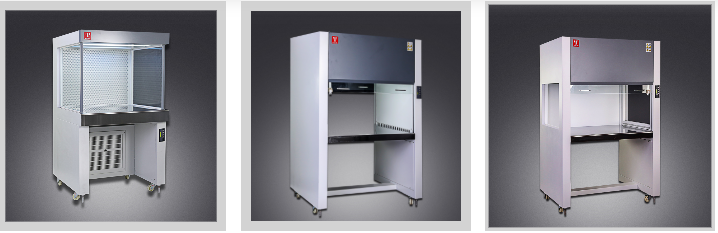

Models
| model | Applicable station | Airflow direction | fluorescent light | UV lamp |
| CJ-1D | single sided | vertical | 20W*1 | 20W*1 |
| CJ-1S | single sided | vertical | 20W*1 | 20W*1 |
| CJ-2D | double sided | vertical | 30W*1 | 30W*1 |
| CJ-2S | double sided | vertical | 30W*1 | 30W*1 |
| HS840 | single sided | level | 20W*1 | 20W*1 |
| HS1300 | double sided | level | 30W*1 | 30W*1 |
| Other parameters | ||||
| cleanliness | Level 100 | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| collection efficiency | More than 99.9% of 0.5um particles | |||
| Colony count | ≤0.5 pieces/dish (φ90mm petri dish) | |||
| wind speed | Initial: 0.6; Final: 0.2 (m/sec) | |||
| Adjustable Wind Speed Range | 0.2-0.6 (m/sec) | |||
| noise | ≤62db | |||
| Vibration and Half Maximum Position | ≤3um | |||
| Illumination | ≥300LX (operation center) | |||
| Working surface load | 50kg | |||
| Interior | stainless steel plate | |||
| Exterior | Cold-rolled steel sheet with chemical-resistant coating on the surface | |||
| fan | 300W | |||
| level adjustment | Adjustment feet (40mm) | |||
| controller | LED controller | |||
