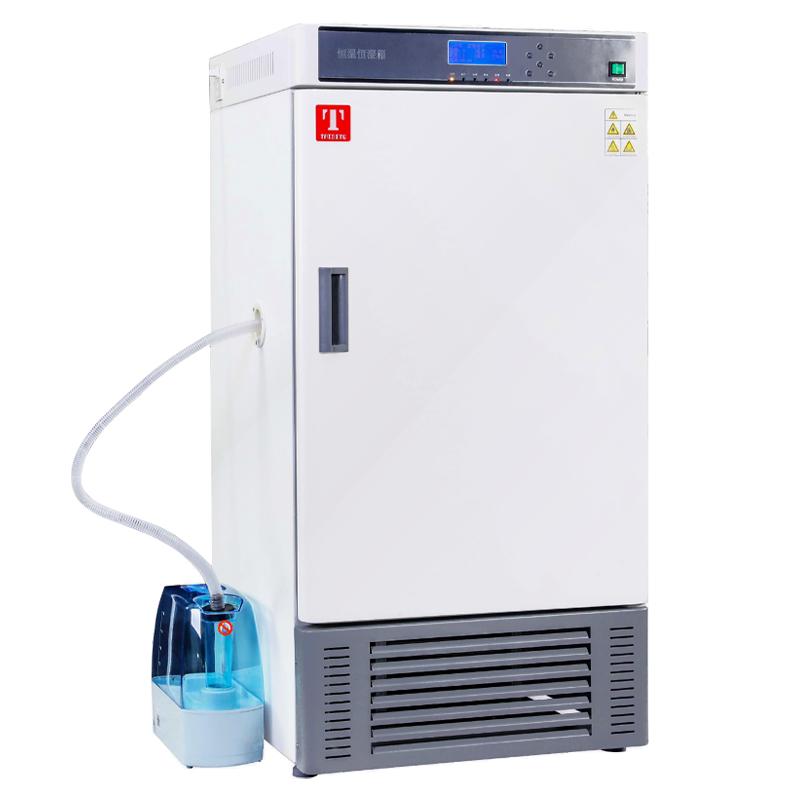

TAISITE HWS-70BX Humidity Chamber 0~65 ℃/70L

SE
Stainless steel inner box, volume 70L, temperature control 0~65 ℃, Humidity 45%~ 90% RH, independent humidification, LCD 30-segment program control, forced air supply, support intelligent defrosting, with over-rise preventer function.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

TaiSiTe HWS-70BX Constant Temperature and Humidity ChamberSPEC

TaiSiTe HWS-70BX Constant Temperature and Humidity ChamberDetails

TaiSiTe HWS-70BX Constant Temperature and Humidity ChamberPacking list

SKU
NB029144
Temperature range
No humidification: 0~65 ℃; Humidification: 10~65 ℃
Temperature Resolution
0.1℃
Temperature Fluctuation
High temperature +/- 0.5 ℃, low temperature +/- 1 ℃
Temperature Uniformity
±1℃
Humidity control range
45~90%R.H
Humidity Deviation
±5%
Input Power
0.7Kw
Power
AC220V/2.3A 50/60Hz
Interior size
420*350*500mm
Dimensions
570*560*1073mm
Shelf (std.)
2pcs
Interior Volume
70L
way
Forced convection
Chamber material
Mirror stainless steel plate
Enclosure Material
Cold rolled steel plate, surface resistance painting
Insulation material
Polyurethane
Heating system
Stainless steel heating pipe
Refrigeration system
Air-cooled airtight compressor
refrigerant
R134A
Defrost structure
automatic
Humidity control mode
automatic
Lead Hole
Inner diameter 52mm each
Controlled external Power
1 external
Temperature control mode
30-Segment LCD program
Temperature representation
Tap the button to set
Temperature representation
Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
Timer
0~99.9h * 30 (with Timer and waiting function)
operation mode
Fixed-value operation, regular operation, automatic stop/appointment start, program operation
Program Mode
Standard
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, overrise preventer, cumulative Timer, loop self-diagnosis, intelligent defrosting
Temperature transducer
PT100
Safety Devices
Over-rise alarm, overload protection, over-rise preventer, cumulative Timer, circuit self-diagnosis
Shelf load bearing
15kg
Shelf (std.)
5pcs
Shelf spacing
60mm
Net Weight
65Kg
Gross Weight
83kg
Shelf (std.)
4pcs
Packing size
720*720*1120mm
HWS-70BX
Constant Temperature and Humidity Chamber
Stainless steel inner box, volume 70L, temperature control 0~65 ℃, Humidity 45%~ 90% RH, independent humidification, LCD 30-segment program control, forced air supply, support intelligent defrosting, with over-rise preventer function.
TAISITE HWS-70BX Humidity Chamber 0~65 ℃/70L Picture

product advantages

  • Independent humidification to achieve humidity control. Dedicated function keys for temperature setting.

  • LCD 30-segment program control, repeated step and step operation.

  • Convenient operation, fixed value operation, timing operation, automatic stop.

  • Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

  • Turbine centrifugal forced air supply, the temperature is more uniform.

  • Power-off protection, parameter memory, call recovery. Compressor overload protection.

Advantages of detailed design

Figure 1. Multi-function control panel

Figure 2. Safety glass and safety lock: safety lock design, and separate safety glass for easy observation


 Details of Tester HWS-70BX Climate Chamber 1      Details of Tester HWS-70BX Climate Chamber 2

                                                                 Figure 1 Figure 2

HWS series Climate Chamber parameter comparison

modelHWS-70B/HWS-70BXHWS-150B/HWS-150BXHWS-250B/HWS-250BX
Wayforced convection
performanceOperating temperature rangeWithout humidification: 0~65℃; with humidification: 10~65℃
temperature resolution0.1°C
temperature fluctuationHigh temperature: ±0.5°C Low temperature: ±1°C
Temperature distribution accuracy±1℃
Humidity range45%~90%RH
humidity fluctuation±5%
compositionInteriorMirror stainless steel plate
ExteriorCold-rolled steel sheet with chemical-resistant coating on the surface
Insulation materialPolyurethane
heaterstainless steel heating tube
rated power0.7KW1.0KW1.4KW
compressorAir-cooled hermetic compressor
RefrigerantR134A
defrost structureB type: manual; BX type: automatic
Humidity control methodautomatic
Lead hole52mm inner diameter
Controlled external power supply1 external
Controllertemperature control method30-segment LCD program
temperature setting methodTouch the button to set
Temperature representationMeasured temperature display: LCD upper display; set temperature display: LCD lower display
timer0~99.9h*30 (with timing waiting function)
running functionFixed value operation, timing operation, automatic stop/scheduled start, program operation
program modeStandard
Additional featuresType B: deviation correction, menu key lock, power failure compensation, power failure memory
BX type: another overheating preventer, cumulative timing, circuit self-diagnosis, intelligent defrosting
sensorPT100
safety devicesType B: Overheating alarm, overload protection; Type BX: Another overheating preventer, cumulative timing, circuit self-diagnosis
SpecificationInner size (width * depth * height mm)420*350*500500*400*750500*500*950
Dimensions (width * depth * height mm)570*560*1073640*620*1260640*710*1463
Outer packing size (width*depth*height mm)720*720*1120790*770*1380800*870*1580
Internal volume70L150L250L
partition load15kg
Partition layers5th floor9 floors12 floors
Partition spacing60mm
Power supply (50/60Hz) rated currentAC220V/2.3AAC220V/3.6AAC220V/5.5A
Net weight/gross weight kg65/8386/106100/127
AccessoryPartition2 pieces
shelf4 pieces
configuration can be addedPartition, RS485 interface, printer, Recorder, external communication, remote control, wireless SMS alarm, U disk data storage


FAQ
QIs this Constant Temperature and Humidity Chamber GB/T6823 compliant?
A The Constant Temperature and Humidity Chamber is suitable for GB/T6823, please consult customer service for detailed application definition
