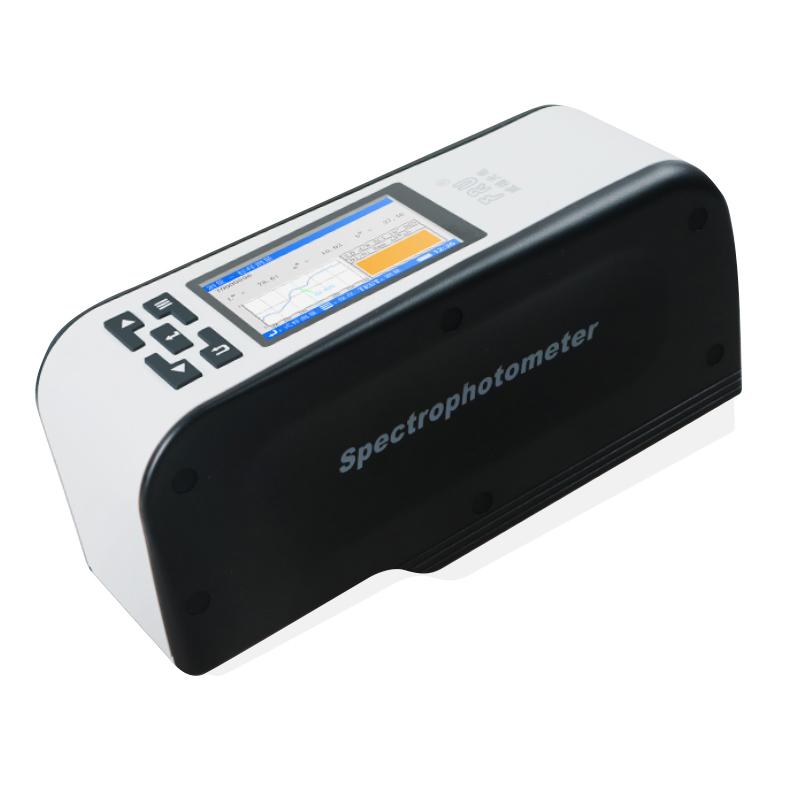

IWAVE IWAVE WS70C Colorimeter

WS70C

Colorimeter

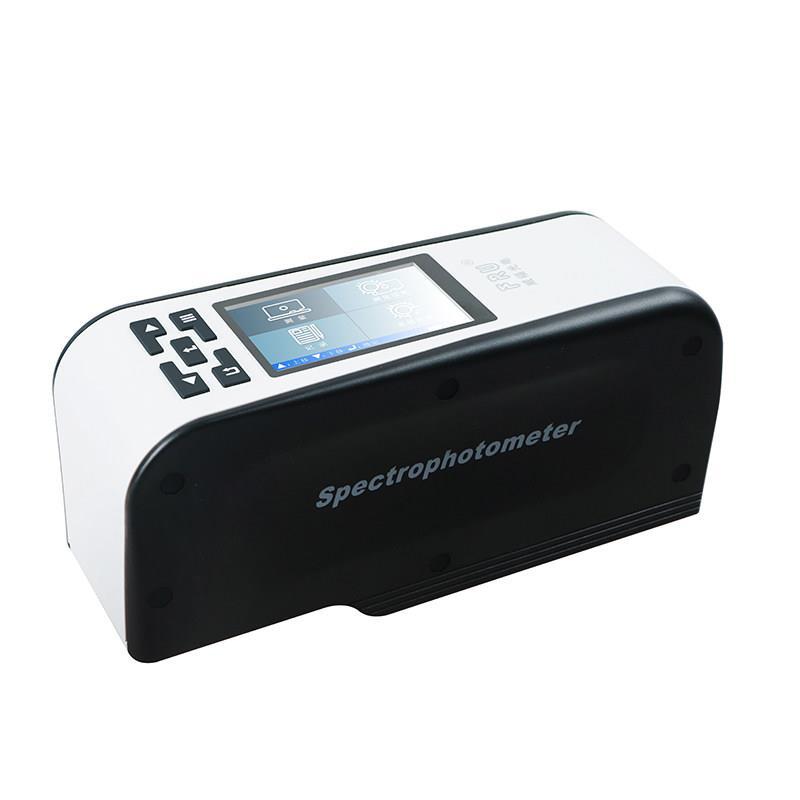

WS70C is a portable Spectrophotometer with 8mm aperture, which is suitable for quality control and color evaluation of different measurement planes in various industries. The WS70C is versatile, portable, and suitable for fast, portable, and precise color control.

How to use: Measure the standard specimen first, then the specimen. The color difference value is displayed on the color LCD display.

Features

1) Accurate data

The self-developed spectral detection core, combined with the standard data of the CHINA Academy of Testing Technology, can achieve more accurate color parameter measurement;

2) The data is consistent

Each Colorimeter is carefully tuned and strictly quality controlled, and up to 24 color blocks (X-Rite standard 24 Color Charts) are used to check the data consistency to ensure the consistency of the data.

3) Humanized design

The ergonomically designed body brings you a more comfortable measurement experience;

TFF color high-definition display and graphical user interface are used to make it easier for you to operate;

The fuselage is small in size, light in weight, and easy to carry;

4) Low power consumption design

Adopt the principle of low-power design, and penetrate the low-power design into each module at any cost;

The number of times a lithium battery charge can be measured is as high as more than 10,000 times, which is 8~10 times the industry average;

Low-power LED light source design, lower power consumption, longer life (20,000 hours-more than 50,000 hours), convenient for long-term mobile and outdoor measurement;

5) Fast measurement

The spectral detection core adopts a high-sensitivity design, and the detection sensitivity is increased by 5 times, which realizes more sensitive and faster measurement, and the measurement interval is < 1.5 seconds, and the measurement speed is among the highest in the industry.

6) Very good stability

The electronic system adopts the mainstream ARM+FPGA architecture, which has the characteristics of large data throughput, stable operation, high system reliability and strong anti-interference ability.

The spectral detection core adopts the relevant double sampling technology to effectively suppress external interference and system noise, which is a professional weak signal detection technology.

7) More accurate spectral data and more accurate LAB values

The 1200-line high-precision diffraction grating is used for light splitting, which can better separate different wavelengths of light waves.

The highly sensitive 2048-pixel CCD sensor is used to detect spectral data more accurately and obtain accurate color information.

8) Richer display content

The measurement interface displays standard sample data, sample data, measurement conditions, reflectance spectrum curves, and color simulation at the same time, so as to realize the presentation of all color information in one measurement;

Multiple color spaces, standard light sources, and chromatic aberration formulas are available to meet the diverse needs of customers;

9) High-performance lithium battery

Low-power design, high-performance lithium battery, full charge can carry out more than 10,000 measurements, convenient for long-term mobile and outdoor measurement.

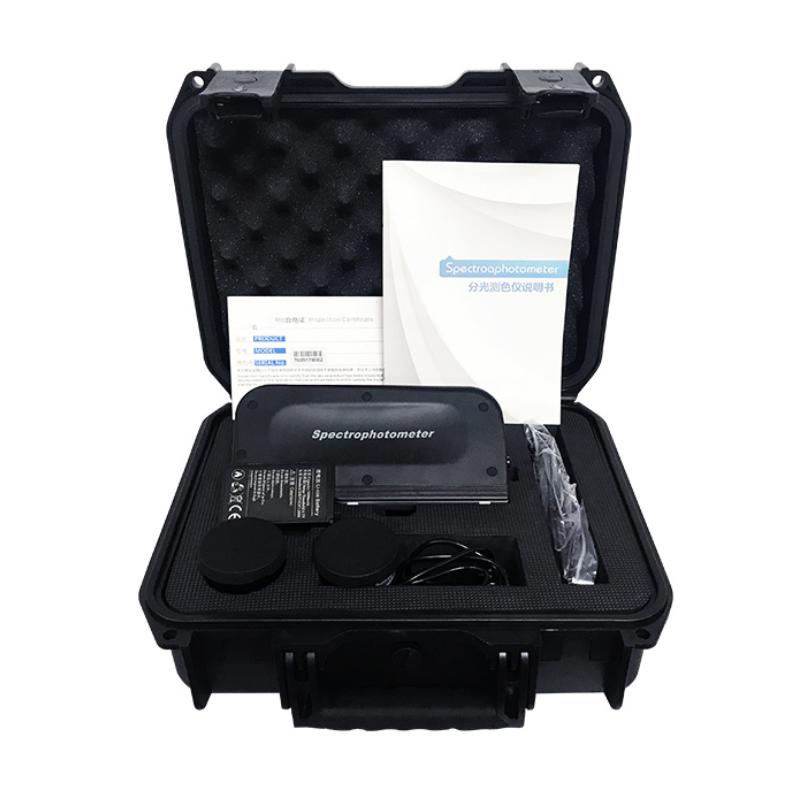

Packing list：Host X1, White Calibration plate X1, Data cable X1, Manual X1, Warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
