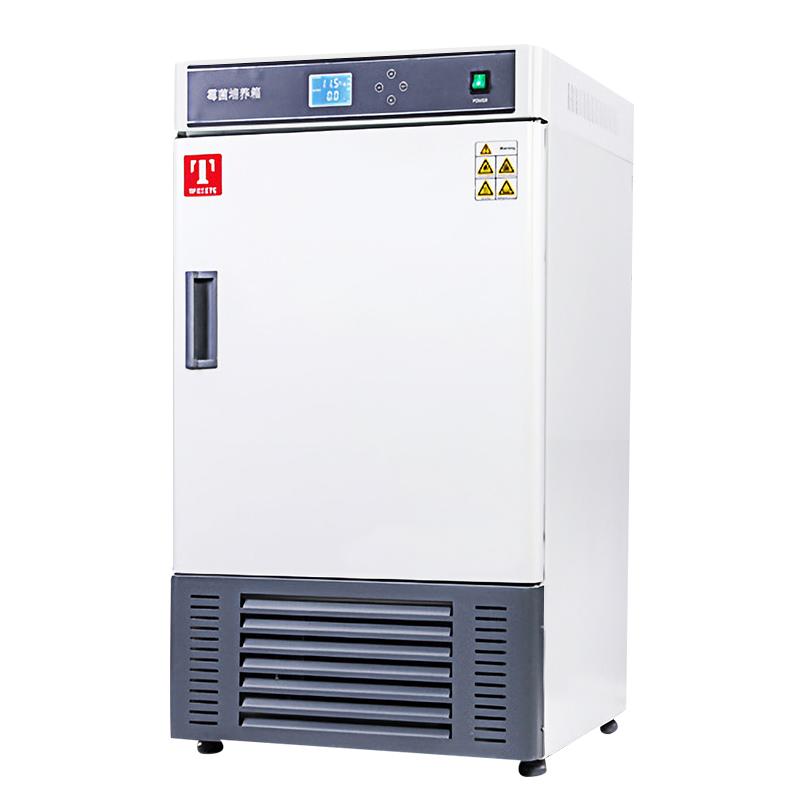

TAISITE MJX-70BX Mold Incubator automatic humidity control 70L

TAISITE MJX-70BX Mold Incubator adopts automatic humidity control. It is a vertical Mold Incubator with a volume of 70L. The Interior size of MJX-70BX is 420 * 350 * 500mm. It adopts liquid crystal program temperature control and has intelligent defrosting., over-rise preventer function.

Model：

MJX-70BX

Certificate

TaiSiTe

Manufacturer authorization

Contact

Details SPEC CAT OI

TaiSiTe MJX-70BX Mildew IncubatorSPEC

TaiSiTe MJX-70BX Mildew IncubatorDetails

TaiSiTe MJX-70BX Mildew IncubatorPacking list

SKU: NB029164

Temperature range: 0~65 ℃ (without humidification); 10~65 ℃ (with humidification)

Temperature Resolution: 0.1℃

Temperature Fluctuation: High temperature: +/- 0.5 ℃ Low temperature: +/- 1 ℃

Temperature Uniformity: ±1℃

Input Power: 0.7KW

Power: AC220V/2.3A 50/60Hz

Liner size: 420*350*500mm

Dimensions: 570*560*1073mm

Shelf (std.): 2 pieces

Volume: 70L

way: Forced convection

Liner material: Mirror stainless steel plate

Enclosure Material: Cold rolled steel plate, surface resistance painting

Thermal insulation material: Polyurethane

heater: Stainless steel heating tube

compressor: Air-cooled closed compressor

refrigerant: R134A

Defrost structure: automatic

Humidity control mode: automatic

Lead Hole: Inner diameter 52mm each

Controlled external Power: 1 external

Temperature Control mode: 30-Segment liquid crystal program

Temperature setting: Touch key settings

Temperature representation: Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display

Timer: 0~99.9h * 30 (with Timer and waiting function)

Run function: Fixed value operation, Timer operation, automatic stop, program operation,

Program Mode: Standard

Additional features: Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer, cumulative Timer, loop self-diagnosis, intelligent defrosting

Temperature sensor: PT100

Safety Devices: Overlift alarm, overload protection, overlift preventer, circuit self-diagnosis

Shelf load bearing: 15kg

Shelf Layers: 5 floors

Shelf spacing: 60mm

Net Weight: 65kg

Gross Weight: 83kg

Shelf (std.): 4 pieces

Packing size: 720*720*1120mm

UV sterilization: Yes.

MJX-70BX

Mildew Incubator

product advantages

Independent humidification to achieve humidity control. Dedicated function keys for temperature setting.
LCD multi-data full-screen operation display, power failure memory, power failure compensation.
Convenient operation, fixed value operation, timing operation, automatic stop.
Auxiliary menu to realize overheating alarm, deviation correction and menu lock.
Turbine centrifugal forced air supply, the temperature is more uniform.
Power-off protection, parameter memory, call recovery. Compressor overload protection.

Advantages of detailed design

Figure 1. Safety lock: safety lock, easy and safe to operate.

Figure 2. Multifunctional control panel.

MJX series

model	rated power	Internal volume
MJX-70BⅢ/MJX-70BX	0.7KW	70L
MJX-150BⅢ/MJX-150BX	1.0KW	150L
MJX-250BⅢ/MJX-250BX	1.4KW	250L
Other parameters
Way	forced convection
Operating temperature range	Without humidification: 0~65℃; with humidification: 10~65℃
temperature resolution	0.1°C
temperature fluctuation	High temperature: ±0.5°C Low temperature: ±1°C
Temperature distribution accuracy	±1℃
Interior	Mirror stainless steel plate
Exterior	Cold-rolled steel sheet with chemical-resistant coating on the surface
Insulation material	Polyurethane
heater	stainless steel heating tube
compressor	Air-cooled hermetic compressor
Refrigerant	R134A
defrost structure	B type: manual; BX type: automatic
Humidity control method	B type: manual; BX type: automatic
Lead hole	52mm inner diameter
Controlled external power supply	1 external
UV sterilization	have
temperature control method	B type: single-segment liquid crystal PID; BX type: 30-segment liquid crystal program
temperature setting method	Touch the button to set
Temperature representation	Measured temperature display: LCD upper display; set temperature display: LCD lower display
timer	B type: 0~99.9h BX type: 0~99.9h*30 (with timing waiting function)
running function	Type B: fixed value operation, timing operation, automatic stop
	BX type: program operation
program mode	B type: optional; BX type: standard
Additional features	Type B: deviation correction, menu key lock, power failure compensation, power failure memory
	BX type: another overheating preventer, cumulative timing, circuit self-diagnosis, intelligent defrosting
sensor	PT100
safety devices	Type B: Overheating alarm, overload protection; Type BX: Another overheating preventer, circuit self-diagnosis
Partition	2 pieces
shelf	4 pieces
configuration can be added	Partition, RS485 interface, printer, Recorder, external communication, remote control, wireless SMS alarm, U disk data storage
