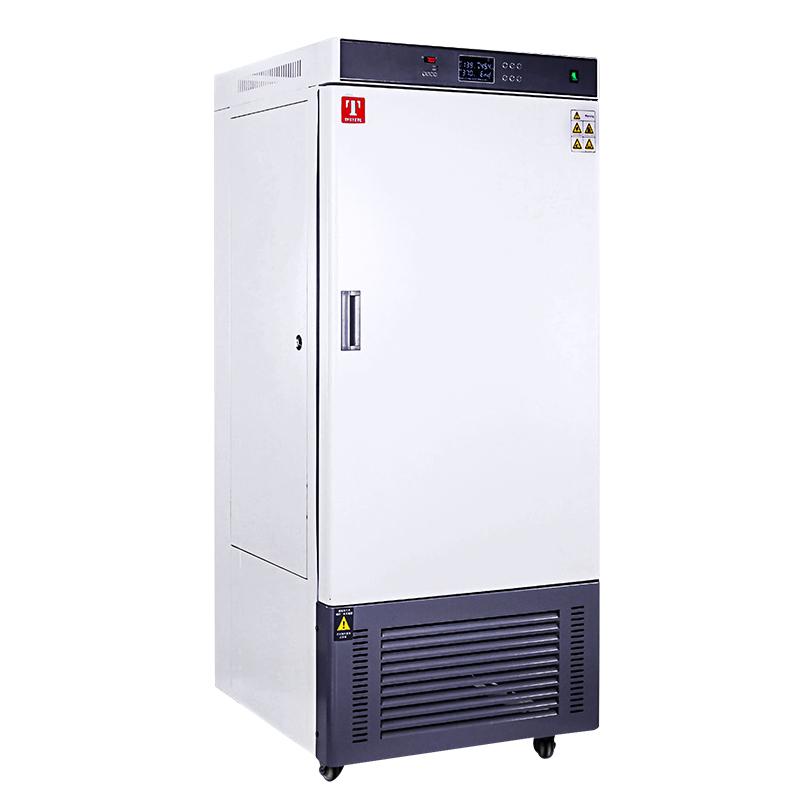

TAISITE GZX300E lighting chamber 300L
TAISITE GZX300E microbial light chamber adopts program temperature control, Temperature range 0~65 ℃, Interior size 550 * 580 * 950mm, GZX300E is three-sided light four window type, air-cooled airtight compressor, with intelligent defrosting, over-rise prevention function.
Model：
GZX300E
Similar products
TaiSiTe GZX300E light chamberSPEC
TaiSiTe GZX300E light chamberDetails
TaiSiTe GZX300E light chamberPacking list
- SKU
- NB029169
- Temperature range
- 0~65 ℃ (without humidification); 10~65 ℃ (with humidification)
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1℃
- Temperature Uniformity
- ±1.5℃
- Input Power
- 1.1KW
- Power supply Voltage
- AC 220V/5.0A 50/60Hz
- Liner size
- 550*580*950mm
- Dimension
- 740*755*1650mm
- Shelf (standard)
- 2pcs
- Volume
- 300L
- Thermostatic mode
- forced convection
- Liner material
- Mirror stainless steel plate
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal Insulation
- Polyurethane
- heater
- Stainless steel heating tube
- Temperature Control mode
- 30-Segment LCD program
- Temperature setting method
- Tap the button to set
- Temperature representation
- Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
- Timer Range
- 0~99.9h * 30 (with Timer and waiting function)
- Operational Features
- Fixed-value operation, regular operation, automatic stop/appointment start, program operation
- Program control function
- Standard
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
- temperature sensor
- PT100
- Safety Devices
- Over-rise alarm, overload protection, circuit self-diagnosis
- Shelf load bearing
- 15kg
- Shelf (max.)
- 6th floor
- Shelf spacing
- 120mm
- Net Weight
- 78kg
- Gross Weight
- 119kg
- Shelf (standard)
- 4pcs
- packing size
- 900*930*1790mm
- Lead Hole
- none
- Illumrination degree
- 0~15000Lx
- compressor
- Air-cooled airtight compressor
- refrigerant
- R134A
- Defrost structure
- automatic
- Lighting mode
- Three-sided lighting
- Illumination level
- Six-level adjustable
GZX300E
light chamber
Benefits:

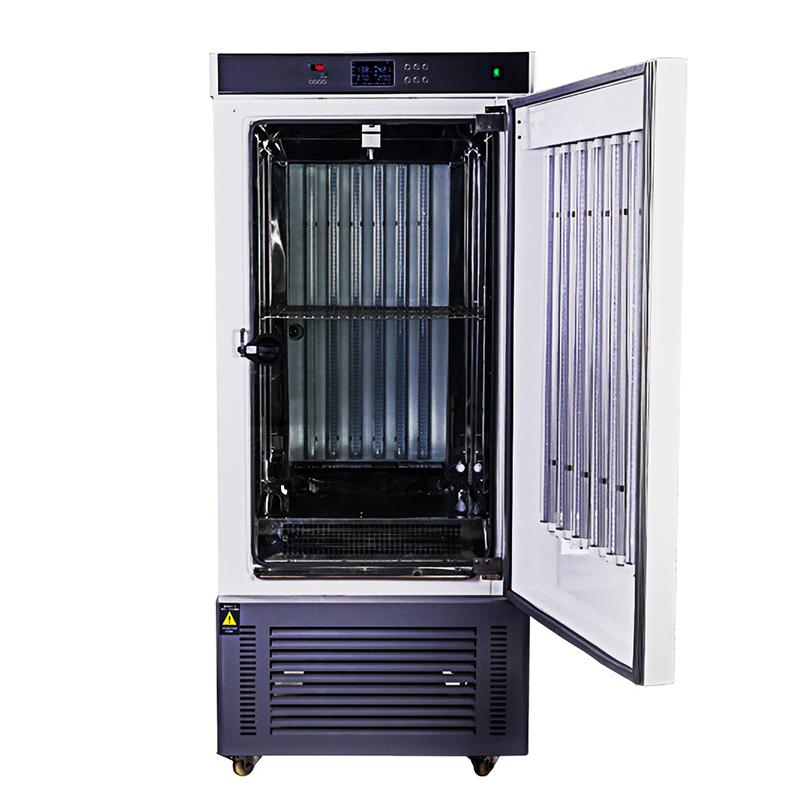

Stable high luminous flux light source, three/four sides of the light, to ensure the stability of the light source.
LCD 30-segment program control, repeated stepping, ladder operation.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Turbine centrifugal forced air supply, more uniform temperature. Power-off protection, parameter memory, incoming call recovery.
Loop self-diagnosis, sensor fault alarm, upper and lower limit over-temperature alarm.
Intelligent cream. Monitor timekeeping. Branded compressors.
Overlift alarm, menu lock, overlift prevention, overload protection, power-off protection.
Detail design advantages
Figure 1Multi-function control panel.
Figure 2,Temperature rise graph: time unit: minutes, temperature unit: °C.

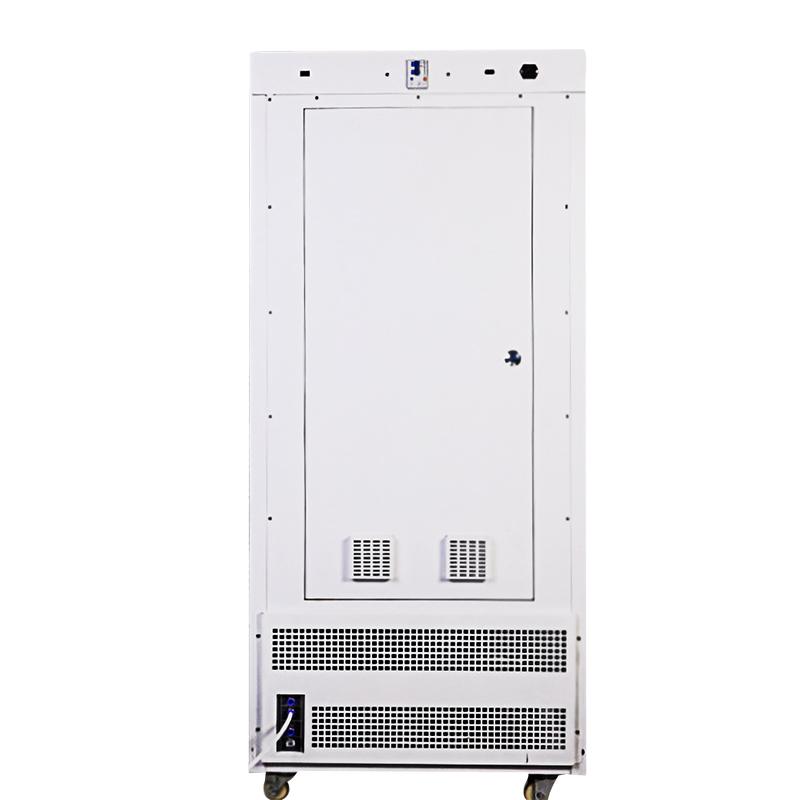

Figure 3, rear side panel: the rear side panel of the product can be opened, humanized design, easy to observe.
Fig.1 Fig.2 Fig.3
Comparison of parameters of GZX light Incubator series
| Model | GZX250E/GZX250EF | GZX300E/GZX300EF | GZX400E/GZX400EF | |
| manner | Forced convection | |||
| Performance | Operating temperature range | No humidification: 0~65°C; With humidification: 10~65°C | ||
| Temperature resolution | 0.1℃ | |||
| Temperature fluctuations | ±1℃ | |||
| Temperature distribution accuracy | ±1.5℃ | |||
| Illuminance | Three-sided illumination 0-15000Lx is adjustable in six levels; The four-sided light is 0-20000Lx, which can be adjusted in six levels | |||
| composition | Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | |||
| Insulating materials | polyurethane | |||
| heater | Stainless steel heating tubes | |||
| Rated power | 1.0KW | 1.1KW | 1.2KW | |
| compressor | Air-cooled hermetically sealed compressor | |||
| Refrigerants | R134A | |||
| Defrost construction | automatic | |||
| Lead holes | not | |||
| Controls | Temperature control method | 30-segment LCD program | ||
| Temperature setting method | Tap the button settings | |||
| Temperature representation | Measured temperature display: LCD upper display; Set temperature display: LCD lower display | |||
| timer | 0~99.9h*30 (with timing waiting function) | |||
| Run the function | Fixed value run, timed run, automatic stop/scheduled start, program run | |||
| Program mode | Standard | |||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory, loop self-diagnosis, intelligent frost | |||
| sensor | PT100 | |||
| Safety devices | Overlift alarm, overload protection, loop self-diagnosis | |||
| Specifications | Inner dimensions (W*D*H mm) | 500*530*950 | 550*580*950 | 590*620*1100 |
| Dimensions (W*D*H mm) | 690*705*1650 | 740*755*1650 | 780*795*1800 | |
| Outer packing size (W*D*H mm) | 850*880*1790 | 900*930*1790 | 940*960*1940 | |
| Content volume | 250L | 300L | 400L | |
| The partition is load-bearing | 15kg | |||
| Number of partition layers | 6 floors | 6 floors | 7 floors | |
| Partition spacing | 120mm | |||
| Power supply (50/60Hz) rated current | AC220V/4.5A | AC220V/5.0A | AC220V/5.5A | |
| Net weight/gross weight kg | 76/117 | 78/119 | 81/122 | |
| accessory | clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | |||
