JENCO PH/EC80 Water Quality Analyzer pH/conductivity /TDS/salinity/temperature

SE
0~14/0.01 pH, 0~10.0ppt, 0~20.0mS/0.01µS, TDS: 0~20.0g/L. Automatic temperature compensation -5.0~60.0 ℃
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

JENCO PH/EC80 Water Quality AnalyzerSPEC

JENCO PH/EC80 Water Quality AnalyzerDetails

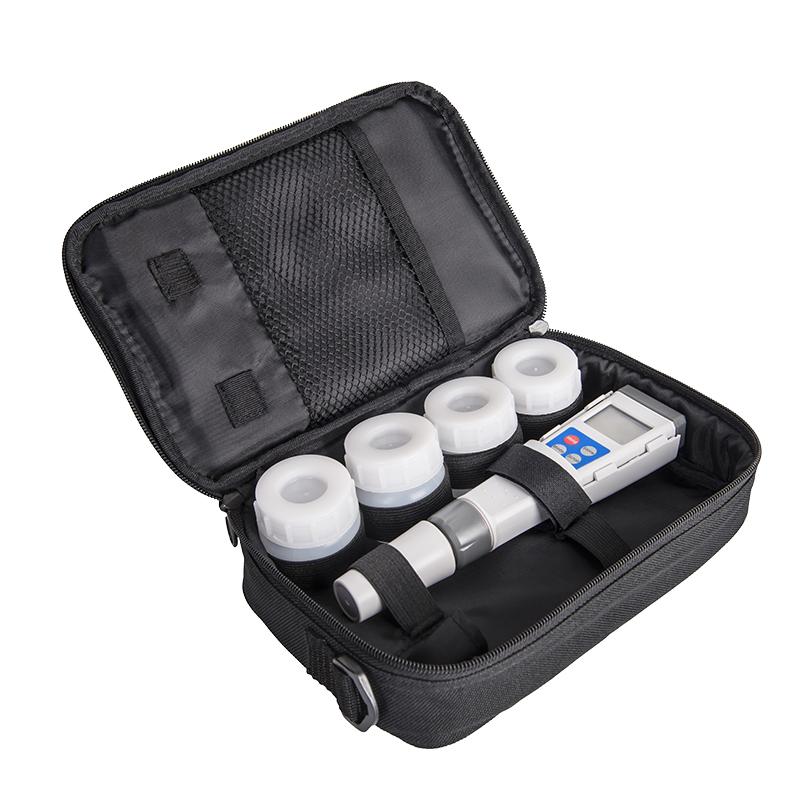

JENCO PH/EC80 Water Quality AnalyzerPacking list

SKU
NB002917
pH Measurement Range
0.00~14.00pH
pH resolution
0.01pH
pH measurement Accuracy
±0.01pH
Conductivity Measurement Range
0uS/cm~20.00mS/cm
EC resolution
1uS/cm
EC measurement Accuracy
±1%FS
TDS range
0mg/L~20.00g/L
TDS resolution
Minimum resolution 1mg/L
TDS measurement Accuracy
±1%FS
Salinity range
0.0~10.0ppt
Salinity range
0.1ppt
Salinity measurement Accuracy
±1%FS
Temperature Measurement Range
-5.0~60.0℃(23~140℉)
Temperature Resolution
0.1℃(0.1℉)
Temperature measurement Accuracy
±0.5℃(±0.9℉)
pH calibrating solution
US (4.01, 7.00, 10.01) ； NIST (4.00, 6.86, 9.18)
pH temperature compensation
automatic
reference temperature
15~ 25 ℃, default 25.0 ℃/0.00 to 4.00%, default 1.91%
TDS conversion factor
0.30~1.00 adjustable, default value 0.65
Data storage
50 sets
Automatic shutdown
10 minutes without operation
Power
4 X LR-44 batteries
Weight
About 110g (without battery)
Dimensions
200*44*25mm
pH temperature compensation range
-5.0~60.0℃
PH/EC80
Water Quality Analyzer
0~14/0.01 pH, 0~10.0ppt, 0~20.0mS/0.01µS, TDS: 0~20.0g/L. Automatic temperature compensation -5.0~60.0 ℃

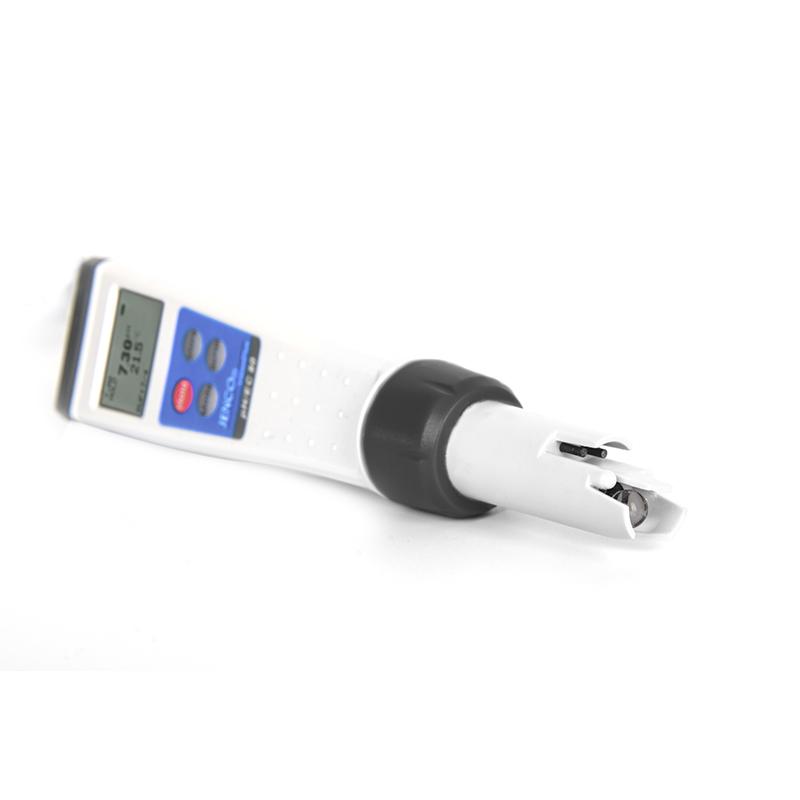

JENCO PH/EC80 Water Quality Analyzer pH/conductivity /TDS/salinity/temperature Picture

Introduction

The JENCO PH/EC80 Water Quality Analyzer is a multi-functional (5-in-1) online test pen that can simultaneously measure and display conductivity, pH, salinity, total dissolved solids, and temperature. Up to 50 entries of memory data can be accessed, allowing users to review changes, switch between Celsius & Fahrenheit temperature units, IP-67 waterproof body, and replaceable electrode programs.

JENCO PH/EC80 Water Quality Analyzer display diagram

Features

  1. Simultaneously measure conductivity, pH, salinity, total dissolved solids, and temperature

  2. Dot matrix LCD display

  3. Automatic temperature compensation

  4. Fahrenheit & Celsius display switching

  5. Automatic shut-down

  6. Interchangeable electrode program

  7. 50 self-material deposits and withdrawals

  8. IP-67 specification waterproof body

  9. Battery life of more than 100 hours

  10. This product complies with EU and RoHS certification

product structure

Structure diagram of JENCO PH/EC80 Water Quality Analyzer

FAQ

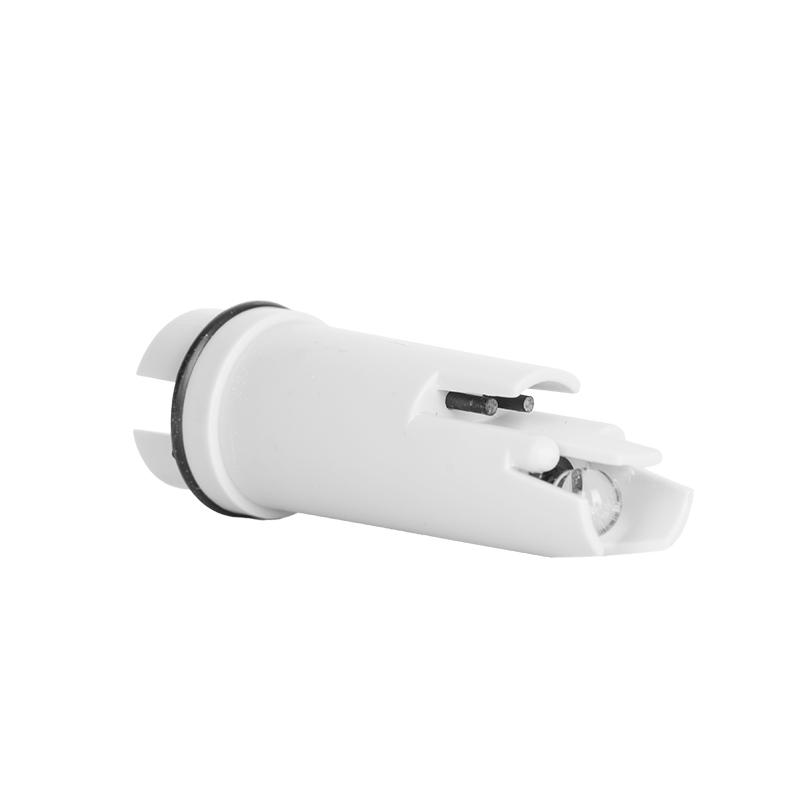

QHow to replace the electrode of PH/EC80?
A Hello, how to replace the electrode: 1. Unscrew the electrode head fixing nut counterclockwise. 2. Unplug the electrode head (aging) from the electrode socket. 3. Insert a new electrode head and ensure that the electrode head is intact The machine contact is good. 4. Put on the electrode head fixing nut and tighten it clockwise.
QHow to choose the PH standard solution group for JENCO PH/EC80 Water Quality Analyzer?
A Hello, the selection method of PH standard solution group is as follows: 1. Press the "Scroll" button for more than 5 seconds in the pH measurement world to enter the "standard solution group selection mode". 2. Press the "Store" key again to select the 7.00 group (7.00/4 01/10.01); press the "Scroll" key to select the 6.86 group (6.86/4 00/9.18). 3. Press the "Mode" button to exit the "Standard Solution Group Selection Mode" and enter the pH measurement mode.
QWhat is the TDS coefficient of PH/EC80 STIP-scan? Can it be adjusted?
A Hello, it can be adjusted. It is adjusted within the range of 0.30~ 1.00. The default value is 0.65.
QHow long is the battery life of this PH/EC80 Water Quality Analyzer?
A Hello, the battery life can reach more than 100 hours.
QIs the JENCO PH/EC80 automatically warmed? How many water quality parameters can be tested?
A Hello, yes, PH/EC80 is a 5-in-1 Water Quality Analyzer, which can simultaneously test conductivity, acid alkalinity, salinity, total solids dissolved, and temperature value.
