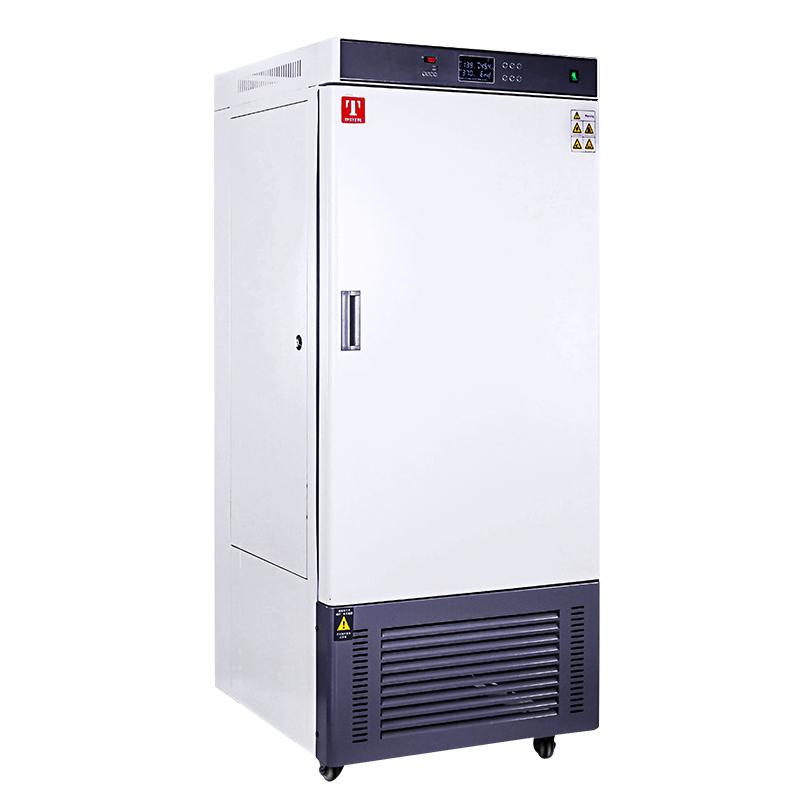

TAISITE GZX250EF light chamber 4-sided light 250L
TAISITE GZX250E light chamber is a 4-sided light large screen type, Illumrination degree range 0-20000Lx is adjustable in six levels, GZX250EF Interior size 500 * 530 * 950mm, volume is 250L, is a stainless steel chamber microbial light chamber.
Model：
GZX250EF
Similar products
TaiSiTe GZX250EF light chamberSPEC
TaiSiTe GZX250EF light chamberDetails
TaiSiTe GZX250EF light chamberPacking list
- SKU
- NB029171
- Temperature range
- 0~65 ℃ (without humidification); 10~65 ℃ (with humidification)
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1℃
- Temperature Uniformity
- ±1.5℃
- Input Power
- 1.0KW
- Power supply Voltage
- AC 220V/4.5A 50/60Hz
- Liner size
- 500*530*950mm
- Dimension
- 690*705*1650mm
- Shelf (standard)
- 2pcs
- Volume
- 250L
- Thermostatic mode
- forced convection
- Liner material
- Mirror stainless steel plate
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal Insulation
- Polyurethane
- heater
- Stainless steel heating tube
- Temperature Control mode
- 30-Segment LCD program
- Temperature setting method
- Tap the button to set
- Temperature representation
- Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
- Timer Range
- 0~99.9h * 30 (with Timer and waiting function)
- Operational Features
- Fixed-value operation, regular operation, automatic stop/appointment start, program operation
- Program control function
- Standard
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
- temperature sensor
- PT100
- Safety Devices
- Over-rise alarm, overload protection, circuit self-diagnosis
- Shelf load bearing
- 15kg
- Shelf (max.)
- 6th floor
- Shelf spacing
- 120mm
- Net Weight
- 76kg
- Gross Weight
- 117kg
- Shelf (standard)
- 4pcs
- packing size
- 850*880*1790mm
- Lead Hole
- none
- Illumrination degree
- 0~20000Lx
- compressor
- Air-cooled airtight compressor
- refrigerant
- R134A
- Defrost structure
- automatic
- Lighting mode
- 4-sided lighting
- Illumination level
- Six-level adjustable
GZX250EF
light chamber
Benefits:
Stable high luminous flux light source, three/four sides of the light, to ensure the stability of the light source.
LCD 30-segment program control, repeated stepping, ladder operation.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.
Turbine centrifugal forced air supply, more uniform temperature. Power-off protection, parameter memory, incoming call recovery.
Loop self-diagnosis, sensor fault alarm, upper and lower limit over-temperature alarm.
Intelligent cream. Monitor timekeeping. Branded compressors.
Overlift alarm, menu lock, overlift prevention, overload protection, power-off protection.
Four-sided light source, more uniform light. Imported compressors.
Detail design advantages
Figure 1Multi-function control panel.
Figure 2,Temperature rise graph: time unit: minutes, temperature unit: °C.
Figure 3, rear side panel: the rear side panel of the product can be opened, humanized design, easy to observe.
Fig.1 Fig.2 Fig.3
Comparison of parameters of GZX light Incubator series
| Model | GZX250E/GZX250EF | GZX300E/GZX300EF | GZX400E/GZX400EF | |
| manner | Forced convection | |||
| Performance | Operating temperature range | No humidification: 0~65°C; With humidification: 10~65°C | ||
| Temperature resolution | 0.1℃ | |||
| Temperature fluctuations | ±1℃ | |||
| Temperature distribution accuracy | ±1.5℃ | |||
| Illuminance | Three-sided illumination 0-15000Lx is adjustable in six levels; The four-sided light is 0-20000Lx, which can be adjusted in six levels | |||
| composition | Built-in | Stainless steel plate | ||
| Exterior | Cold-rolled steel plate, surface resistant coating | |||
| Insulating materials | polyurethane | |||
| heater | Stainless steel heating tubes | |||
| Rated power | 1.0KW | 1.1KW | 1.2KW | |
| compressor | Air-cooled hermetically sealed compressor | |||
| Refrigerants | R134A | |||
| Defrost construction | automatic | |||
| Lead holes | not | |||
| Controls | Temperature control method | 30-segment LCD program | ||
| Temperature setting method | Tap the button settings | |||
| Temperature representation | Measured temperature display: LCD upper display; Set temperature display: LCD lower display | |||
| timer | 0~99.9h*30 (with timing waiting function) | |||
| Run the function | Fixed value run, timed run, automatic stop/scheduled start, program run | |||
| Program mode | Standard | |||
| Additional features | Deviation correction, menu button locking, power failure compensation, power failure memory, loop self-diagnosis, intelligent frost | |||
| sensor | PT100 | |||
| Safety devices | Overlift alarm, overload protection, loop self-diagnosis | |||
| Specifications | Inner dimensions (W*D*H mm) | 500*530*950 | 550*580*950 | 590*620*1100 |
| Dimensions (W*D*H mm) | 690*705*1650 | 740*755*1650 | 780*795*1800 | |
| Outer packing size (W*D*H mm) | 850*880*1790 | 900*930*1790 | 940*960*1940 | |
| Content volume | 250L | 300L | 400L | |
| The partition is load-bearing | 15kg | |||
| Number of partition layers | 6 floors | 6 floors | 7 floors | |
| Partition spacing | 120mm | |||
| Power supply (50/60Hz) rated current | AC220V/4.5A | AC220V/5.0A | AC220V/5.5A | |
| Net weight/gross weight kg | 76/117 | 78/119 | 81/122 | |
| accessory | clapboard | 2 pcs | ||
| Partition shelves | 4 pcs | |||
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
