IMT-310A Offset Printing ink Spot Color Proofing Machine (Fixed)

SE
Used for Printing ink spot color proofing, printing material size 290 × 250mm, manually adjust the width of the uniform ink, the width of the color bar is 40mm, fixed Printing ink transfer, one-time uniform ink transfer, full width ink extraction.
Model：
Contact
Details SPEC Con CAT
Similar products

IMT IMT-310A Printing ink spot color proofing machine (fixed)SPEC

IMT IMT-310A Printing ink spot color proofing machine (fixed)Details

IMT IMT-310A Printing ink spot color proofing machine (fixed)Packing list

SKU
NB029179
Proofing effective area
40 * 200mm (4 pieces), 60 * 220mm (3) 100 * 220mm (2 pieces), optional
Print material size
290×250mm
Proofing method
automatic
Proofing speed
400, 550, 700rpm, the gear speed can be changed to 0-1000 rpm.
Proofing speed
10/15/20rpm, gear speed variable frequency speed regulation 0~30rpm
Ink leveling time
15~ 800S adjustable
Proofing pressure
-1 to + 1mm manual adjustment, can be automatically adjusted according to the wear condition of the rubber roller or the error of the old and new rubber rollers
Proofing pressure
Manual adjustment on the outer cover side
Cots Specifications
ø67 × 229MM (developing area up to 229 × 210mm)
Dimensions
525*430*280mm
Weight
About 75KG
Printing size
190 * 600mm (full circumference)
Dimensions
700*570*570mm
Weight
140KG
IMT-310A
Printing ink spot color proofing machine (fixed)
Used for Printing ink spot color proofing, printing material size 290 × 250mm, manually adjust the width of the uniform ink, the width of the color bar is 40mm, fixed Printing ink transfer, one-time uniform ink transfer, full width ink extraction.

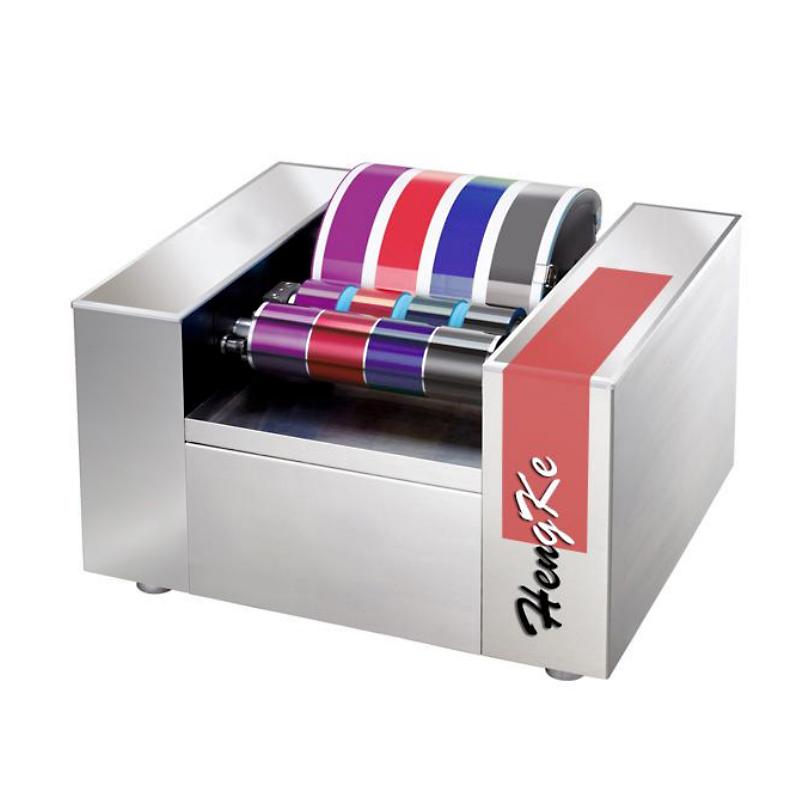

IMT-310A Offset Printing ink Spot Color Proofing Machine (Fixed) Picture

The offset printing spot color proofing machine is designed and produced by imitating the Principle of the printing machine. The pressure of the proofing machine is adjustable and the range of substrates is wide. It is suitable for packaging and printing production, paper production enterprises, ink production enterprises and scientific research institutions. use. The spot color proofing machine can accurately predict . The correct ratio of the ink is determined by continuously comparing with the color of the standard sample. After the spot color is matched correctly, it will be mass-produced on the printing machine according to the ratio, so that the color matching work is completely transferred to the pre-press work.

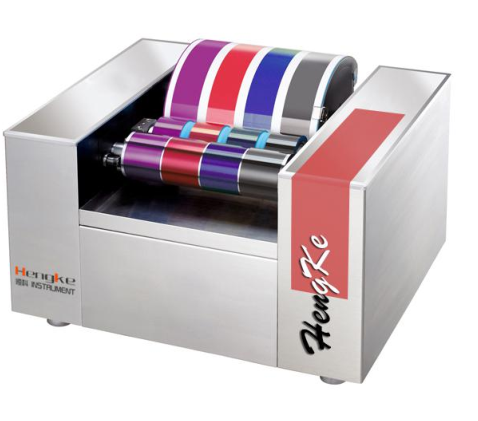

Internason IMT-310A Offset Ink Spot Color Proofer (Fixed) Details Figure 1

Standards

 GB/T 8941, ISO2813, ISO 2469, ISO 9416, GB/T 7973, GB/T 7974 GB/T 12911, GB/T7706, ASTM D 6531

Model comparison

modelIMT-310AIMT-IGT309A
FeaturesInk spot color proofingInk spot color proofing, ink transfer rate, calculation of ink layer thickness
color bar width40mm25mm, 35mm, 50mm
Ink distribution pressure adjustmentBy manually adjusting the widthSpring loaded way
Ink Transfer Rate CalculationCan'tCan
Ink film calculationCan'tCan
Ink transfer methodfixed direct transfersplit direct transfer
ink cleaningFixed cleaning (cannot be removed for cleaning)Separate cleaning (can be easily removed for cleaning)
Ink distribution and ink transferDistribute ink and transfer at one timeOne ink distribution and two transfers
Ink taking methodFull-width ink transfer (large deviation in lateral uniformity)Mid-section ink transfer (reduce lateral uniformity deviation)
FAQ
QHow big is the roller of IMT-310A offset plate Printing ink spot color proofing machine?
A Hello, it is φ 67x229mm.
QIs there a GB/T22365 standard offset plate inks spot color Proofer?
A This IMT offset plate inks the spot color Proofer!
