IMT-IGT309A offset plate inks Spot Color Proofer (Separate) Printability Tester

SE
Separate and directly transfer inks, use spring pressure to even ink, support inks Spot Color proofing, inks transfer rate, calculation of ink layer thickness, color bar width is 25mm, 35mm, 50mm, mid-section ink extraction.
Model：
Contact
Details SPEC Con CAT
Similar products

IMT IMT-IGT309A Offset plate inks Spot Color ProoferSPEC

IMT IMT-IGT309A Offset plate inks Spot Color ProoferDetails

IMT IMT-IGT309A Offset plate inks Spot Color ProoferPacking list

SKU
NB029180
Instrument function
Printing ink spot color proofing, Printing ink transfer rate, Calculating ink layer Film thickness
Proofing method
Automatic ink leveling (ink leveling time can be adjusted according to your own needs)
Proofing pressure
0--700N adjustable.
Proofing pressure
0--200N adjustable.
Proofing material Film thickness
NO1 disc (0.01-1.6) mm, NO2 disc (0.5-2.1) mm, NO3 disc (1.0-2.6) mm, the choice of printing disc is based on the specific needs of customers.
Proofing speed
0.4M/s~ 1.0m/s, 1 step step speed regulation.
Proofing speed
0.2M/s~ 0.60m/s 11 steps speed regulation
Roller width
700mm
Secondary roll width
700mm
Substrate roll width
560mm
Color ribbon width
25mm, 35mm, 50mm (optional)
Ink transfer system
Separate transfer method
Proofing method
Strong pressure series
Ink extraction method
Displacement mid-section ink extraction method
Printing ink transfer method
Printing disk transfer
Color development method
Semi-automatic
Cleaning method
Separate cleaning, can be easily taken out for cleaning
Printing ink
Plain offset Printing ink, UV Printing ink
IMT-IGT309A
Offset plate inks Spot Color Proofer
Separate and directly transfer inks, use spring pressure to even ink, support inks Spot Color proofing, inks transfer rate, calculation of ink layer thickness, color bar width is 25mm, 35mm, 50mm, mid-section ink extraction.

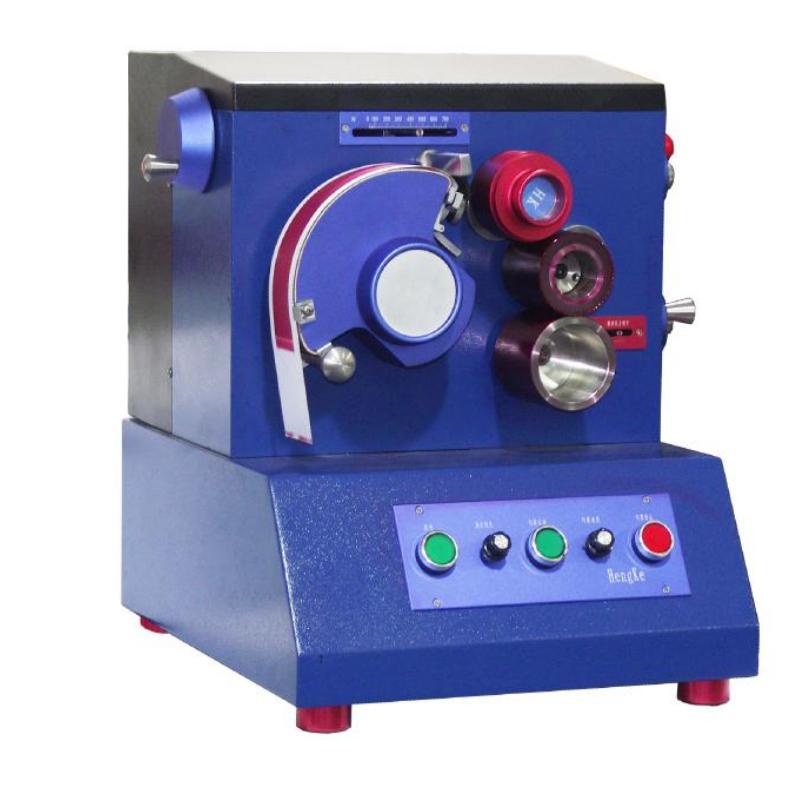

IMT-IGT309A offset plate inks Spot Color Proofer (Separate) Printability Tester Picture

The offset printing spot color proofing machine is designed and produced by imitating the Principle of the printing machine. The pressure of the proofing machine is adjustable and the range of substrates is wide. It is suitable for packaging and printing production, paper production enterprises, ink production enterprises and scientific research institutions. use. The scientific research of spot color proofing machine accurately predicts . The correct ratio of the ink is determined by continuously comparing with the color of the standard sample. After the spot color is matched correctly, it will be mass-produced on the printing machine according to the ratio, so that the color matching work is completely transferred to the pre-press work.

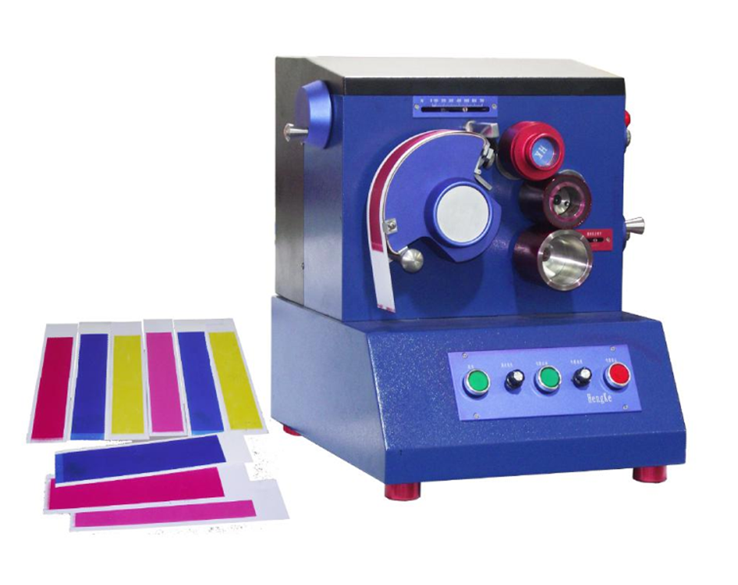

Internex IMT-IGT309A Offset Ink Spot Color Proofer (Separate Type) Details Figure 1

Standards

 GB/T 8941, ISO2813, ISO 2469, ISO 9416, GB/T 7973, GB/T 7974 GB/T 12911, GB/T7706, ASTM D 6531

Model comparison

modelIMT-310AIMT-IGT309A
FeaturesInk spot color proofingInk spot color proofing, ink transfer rate, calculation of ink layer thickness
color bar width40mm25mm, 35mm, 50mm
Ink distribution pressure adjustmentBy manually adjusting the widthSpring loaded way
Ink Transfer Rate CalculationCan'tCan
Ink film calculationCan'tCan
Ink transfer methodfixed direct transfersplit direct transfer
ink cleaningFixed cleaning (cannot be removed for cleaning)Separate cleaning (can be easily removed for cleaning)
Ink distribution and ink transferDistribute ink and transfer at one timeOne ink distribution and two transfers
Ink taking methodFull-width ink transfer (large deviation in lateral uniformity)Mid-section ink transfer (reduce lateral uniformity deviation)
FAQ
QWhat is the ink leveling speed of this Printing ink spot color proofer?
A Hello, it is 0.4m/s-1.0m/s, with one step speed regulation.
QThis offset plate inks spot color Proofer can be applied to GB/T22365?
A OK
