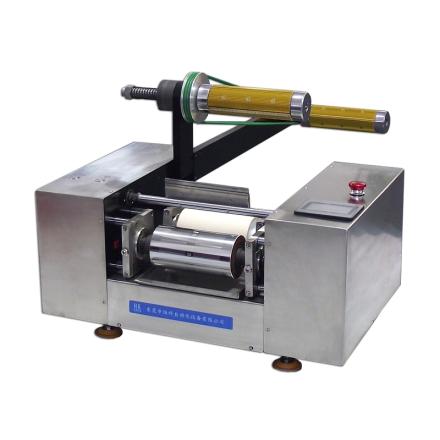

IMT IMT-301A Gravure Printing ink spot color proofing machine (pneumatic) Specifications
Search
Brand：IMT
Model：IMT-301A
Name：Gravure Printing ink spot color proofing machine (pneumatic)
Specifications
| Power | AC220V, 50HZ-60HZ |
| Complete-built unit power | 220V/50Hz |
| Proofing pressure | Pneumatic pressure, the pressure is adjustable from 0 to 1kpa |
| Pressure regulating switch | Pure bronze, diameter 40mm |
| Proofing speed | 0-300R/min touch screen adjustable |
| Number of screens | Standard one layer version (depth 20um, 25um, 30um, 35um, 40um, 45um) |
| Color bar size | 65X45mm/P, a total of 6 sets of Cube angles of 90 degrees |
| Screen Specifications | ø110X200mm Roller circumference 345.4mm, roller width 190mm |
| Cots Hardness | 60 (adhesive film diameter 220mm) |
| Grayness | 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%. Can be customized upon request. |
| Proofing effective area | 110*160mm |
| die | Inner diameter 90mm Outer diameter 95mm |
| Printing size | 190X600mm (full circumference) |
| Dimensions | 700*570*570mm |
| Weight | 140KG |
Packing list
completeness-built unit X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. The equipment is not artificially caused by product quality problems, and the manufacturer provides warranty services during the warranty period;
2. During the warranty period, the manufacturer will respond within 12 hours after receiving the notice of equipment failure, if it cannot be solved by telephone, the corresponding maintenance plan will be arranged according to the specific situation, or returned to the factory for maintenance, or appointed technicians to the scene to solve.
3. Provide paid services outside the warranty period;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29181/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
