IMT-IGTA1 printing surface strength Tester

IMT-IGTA1 printing surface strength Tester is suitable for the determination of dry hair surface strength. It is a special instrument used to detect the surface strength of Spreader paper and non-Spreader paper
Model：
Contact
Details SPEC CAT

IMT IMT-IGTA1 Printing surface strength TesterSPEC

IMT IMT-IGTA1 Printing surface strength TesterDetails

IMT IMT-IGTA1 Printing surface strength TesterPacking list

SKU
NB029182
test area
10±0.05cm²
Precision
0.1s
Measurement range
（0.2~3.5）m/s
pendulum elevation
165°
Printing disk
Φ65mm×10mm, Φ65mm×20mm
pendulum speed
（20~125）cm/s
proofing pressure
0~700N
Sector characteristic size
Fan angle Fan angle 155 °
Radius radius
85Mm, width 35mm
Rubber pad specifications
320×35×1.5mm
Paper pad specification
305×35×1.5mm
Dimension
420*260*355mm
IMT-IGTA1
Printing surface strength Tester

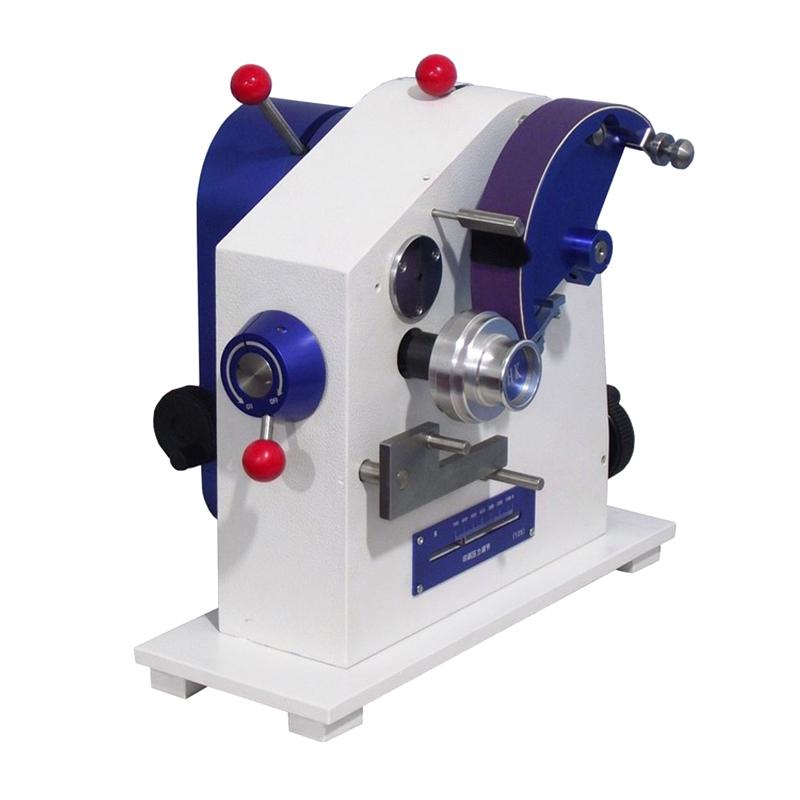

IMT-IGTA1 printing surface strength Tester Picture

Paper printing surface strength Tester is a special instrument used to detect the surface strength of coated paper and non-coated paper, which reflects the adaptability of paper printingA very important physical indicator is the instrument often used in printing paper mills, printing factories and ink factories to control the adaptability of printing.

Standard basis

GB/T 22365-2008、GB/T2679 、ISO 3782、QB/T 1020

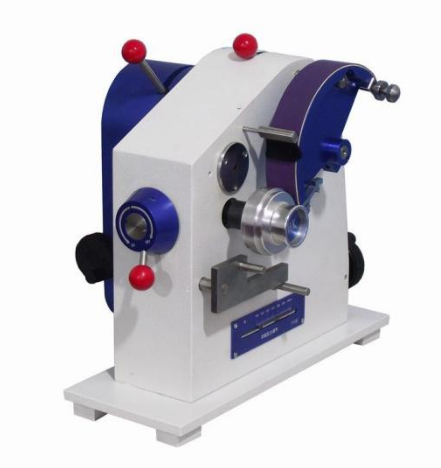

Detail Figure 1 of the Internesen IMT-IGTA1 Printed Surface Strength Tester

FAQ
QGB/T22365-2008 Are you satisfied?
A We meet this standard, but it is the second method in this standard, pendulum pulling.
QDoes the IMT printing surface strength meter meet the GB/T22365 standard?
A The IMT-IGTA1 printing surface strength meter can refer to
