Brand：IMT
Model：IMT-Tensile 01

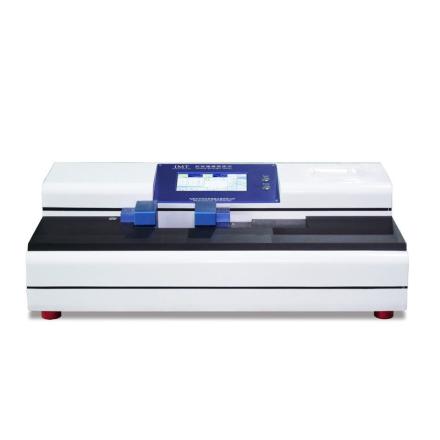

Name：Tensile strength Tester (horizontal high precision)
Specifications
| Power resolution | 1/100000 |
| Data analytics sampling | Sampling frequency 400 times/sec |
| 力值Accuracy | ±0.1%(20～100％FS) |
| Error of indication | ≤±0.5% |
| displacement resolution | ≤0.01mm |
| Force Resolution | 0.01N |
| Clamping method | Pneumatic automatic clamping (external air source is required), with its own pneumatic clamp to ensure stable Clamping Force, and its own test button on the clamp, which is easy to operate. |
| clamping pressure | 0.2 - 0.7Mpa (adjustable) |
| Specimen size range | The positioning of the 1-25mm style is variable, and the size of the cutting style can be adjusted according to different test requirements. |
| Force range | 0.4~ 100%FS |
| Elongation Measurement range | 45~260mm |
| Test speed Accuracy | （1～10）mm/min；±0.1mm/min |
| stretching speed | 1~ 500mm/min stepless speed change |
| return speed | 1~ 500mm/min stepless speed change |
| Force range | 0.1~300N |
| Sensing System Protection | Rapid sensor protection device PROTEC SYSTEM |
| Drive screw | Taiwan, China single column structure precision ball screw |
| Human Machine Interface | 7.0In touch screen operation platform, switch between Chinese and English |
| function | Tension resistance, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index. |
| printout | Modular integrated thermal printer |
| Dimensions | 650*500*400mm |
| Weight | About 50kg |
Packing list
Host X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. The equipment is not artificially caused by product quality problems, and the manufacturer provides warranty services during the warranty period;
2. During the warranty period, the manufacturer will respond within 12 hours after receiving the notice of equipment failure, if it cannot be solved by telephone, the corresponding maintenance plan will be arranged according to the specific situation, or returned to the factory for maintenance, or appointed technicians to the scene to solve.
3. Provide paid services outside the warranty period;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29185/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
