Brand：IMT
Model：IMT-Tensile 02

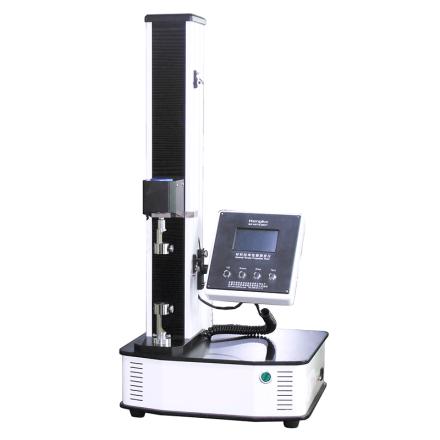

Name：Tensile strength Tester (vertical high precision)
Specifications
| Power resolution | 1/100000 |
| Data analytics sampling | Sampling frequency 400 times/sec |
| 力值Accuracy | ±0.1%(20～100％FS) |
| Error of indication | ≤±0.5% |
| displacement resolution | ≤0.1mm |
| Force Resolution | 0.01N |
| Specimen size range | 1-25mm |
| Force range | 0.4~ 100%FS |
| Elongation Measurement range | 45~260mm |
| Test speed Accuracy | （1～10）mm/min；±0.1mm/min |
| stretching speed | 1~ 500mm/min stepless speed change |
| return speed | 1~ 500mm/min stepless speed change |
| Force range | 0.1~300N |
| Test function | Tension resistance, tensile strength, tensile index, breaking length, elongation, energy absorption, energy index, etc |
| Heat sink | The front cover sheet metal is slotted by wire cutting process, and a heat dissipation channel is reserved. |
| Sensing System Protection | Rapid sensor protection device PROTEC SYSTEM |
| limit protection | High-precision distance limit switch is external, which can be adjusted instantly according to different material requirements |
| Drive screw | Taiwan, China single column structure precision ball screw |
| Human Machine Interface | 5.0In touch screen operating platform, free conversion of Chinese and English, automatic printing data, with Linear dispersion analysis function. |
| software program | Can be linked to the computer for computer control test, print the report and output it by computer |
| printout | Modular integrated thermal printer |
| Dimensions | 650*500*400mm |
| Weight | About 50kg |
Packing list
Host X1, operation manual X1, certificate of conformity X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. The equipment is not artificially caused by product quality problems, and the manufacturer provides warranty services during the warranty period;
2. During the warranty period, the manufacturer will respond within 12 hours after receiving the notice of equipment failure, if it cannot be solved by telephone, the corresponding maintenance plan will be arranged according to the specific situation, or returned to the factory for maintenance, or appointed technicians to the scene to solve.
3. Provide paid services outside the warranty period;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29186/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
