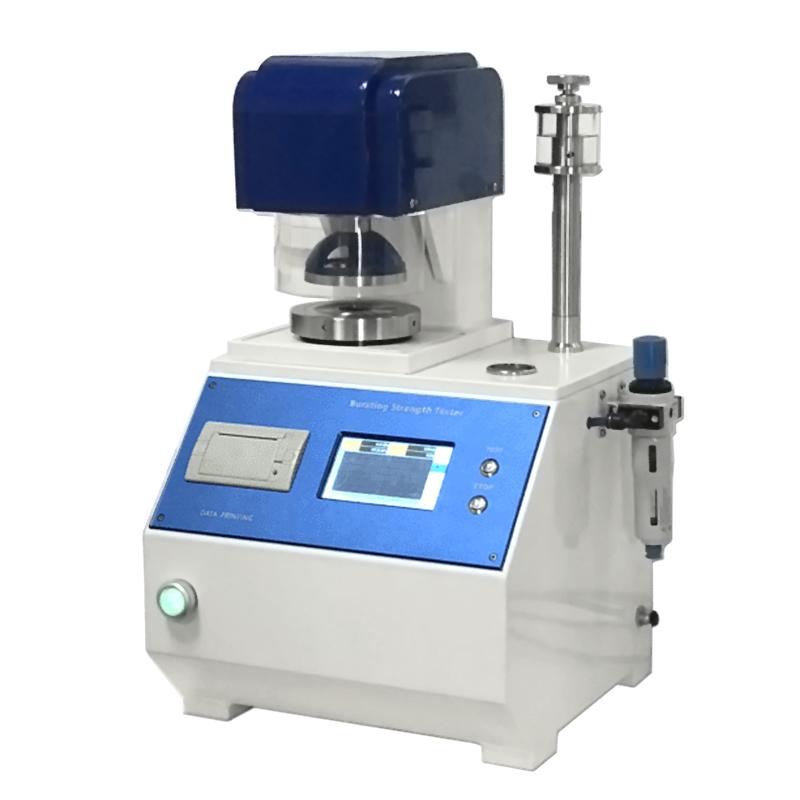

MT-Burst 01P Bursting Strength Tester (Paper type)

MT-Burst 01P

Burst Strength Tester (Paper type)

The paper burst Tester is used to detect the burst strength and burst index of paper, and is suitable for cardboard, kraft paper, cardboard, corrugated paper, gray board paper and other paper.

Standards

 GB/T454, QB/T1057, ISO2758

Features

Measuring head control: intelligent control pressure relief system

System power supply: fully enclosed solid-state power supply

Drive structure: all-steel chain drive, preventing the detection deviation caused by the deviation of the compression amount, improving the detection stability and life

Deformation monitoring: chord length 41mm, three-dimensional semicircular full-window observation window, hollow design, can watch the blasting process of the sample in real time.

Intelligent water and air filter system: Install an intelligent water and air filter device, which can filter the moisture in the compressed air and prevent the parts in the air circuit from rusting.

At the same time improve the service life of the solenoid valve, protect the circuit and prevent short circuit (unique in CHINA)

Oil quantity adjustment system: fully enclosed, anti-damage and anti-collision, high stability

Film convex height detection: with standard film convex height detection tools, very few manufacturers in CHINA currently have this convex film detection

Body structure: The two wings of the body are reinforced with thickened steel plates to prevent displacement and deformation of the upper and lower fixtures during testing.

Human-machine interface: touch screen control, Huang Zhiming system, separate program control for replacing the film, which is easier than the traditional method.

Packing list：completeness-built unit X1, operation manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
