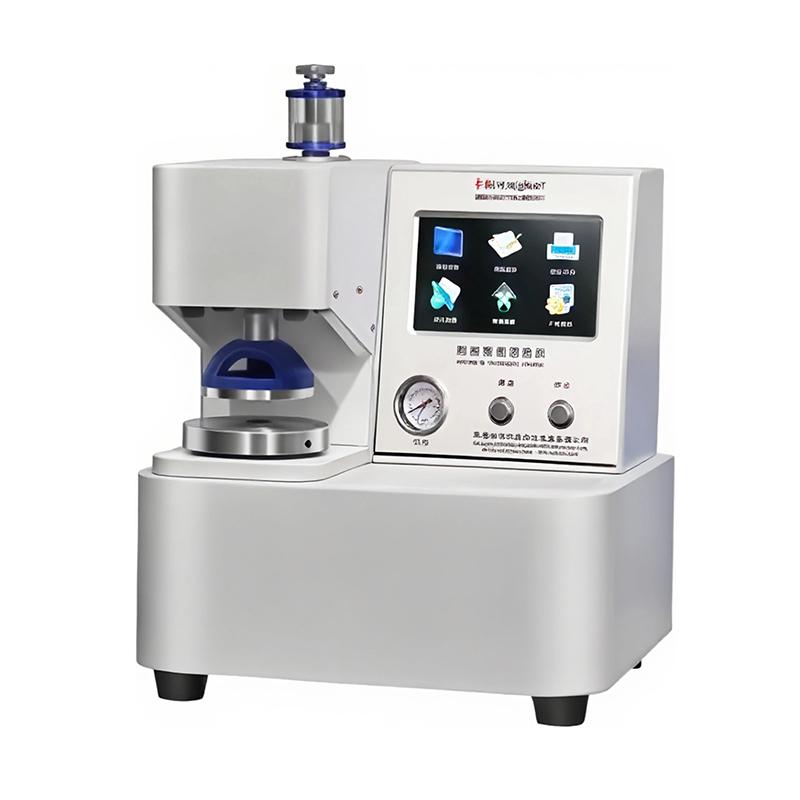

IMT-201BT Paper Bursting Strength Tester
SEIMT-201BT Paper Bursting Strength Tester is used to detect the bursting strength and bursting index of paper. It is suitable for Cardboard, Kraft Paper, Cardboard, Corrugated Paper, Greyboard Paper and so on.
Price: Please contact customer service
Model：
IMT-201BT
IMT
Manufacturer authorization
Similar products
-
PUYUN PY-H602B Automatic Burst Strength Tester (paper type) ≤ 1600Kpa paper breaking resistance$ 1392.00SE -
YINUO YN-NPY1600 Microcomputer Burst Strength Tester (touch screen) ≤ 1600Kpa paper breaking resistance$ 1700.00SE -
HENGPIN HP-NPD1600Q Paper Burst Tester, in line with GB/T454 and ISO2758$ 2169.00SE -
MT-Burst 01P Bursting Strength Tester (Paper type) -
YANTE YT-NPY5600Q paper Burst Strength Tester Cardboard corrugated fibreboard$ 2345.00SE
IMT IMT-201BT Paper Burst Strength TesterSPEC
IMT IMT-201BT Paper Burst Strength TesterDetails
IMT IMT-201BT Paper Burst Strength TesterPacking list
- SKU
- NB029192
- Measuring range
- 50 ~ 1400kpa
- Error of indication
- ≤±0.5%
- resolution
- 0.01kpa
- deformation error
- ≤1mm
- Concentricity of Upper/Lower plates
- ≤0.25mm
- Film resistance
- Raise 9mm, 30 ± 5kPa
- Hydraulic system
- Fully enclosed, anti-collision, high stability
- Oil delivery speed
- 95±5mL/min
- Upper clamp ring aperture
- F (30.5 ± 0.1) mm
- Display
- 5-Inch LCD touch screen display, real-time display of test data, touch screen
- Clamping Force
- 100 ~ 1200Kpa
- unit conversion
- Kg / cm2kpalbf / in2
- printout
- Modular integrated thermal printer
- Weight
- 45Kg
- Lower clamp ring aperture
- F (33.1 ± 0.1) mm
IMT-201BT
Paper Burst Strength Tester
Paper Burst Strength Tester is used to detect the bursting strength and bursting index of paper, suitable for cardboard, kraft paper, cardboard, corrugated paper, gray board paper and other
Standards
GB/T454, QB/T1057, ISO2758
FAQ
QIs the accuracy of IMT-201BT paper Burst resistance tester high?
A
Hello, the accuracy is ≤ ± 0.5%.
QDoes the paper Burst resistance tester meet the specifications of JJG (Light Industry) 61?
A
Model IMT-201BT paper Burst resistance tester
