IMT-FOLD01 MIT Folding Tester

SE
IMT-FOLD01 MIT Folding Tester is used for the detection of the folding times and folding resistance of Paper, mainly used for the ability of Paper resistance to folding fatigue such as Cardboard, kraft paper, cardboard, corrugated paper, grey board paper, etc. It is suitable for Paper production enterprises, Cardboard carton production enterprises, mass supervision bureaus, scientific research institutions and so on.
Model：
Contact
Details SPEC Con CAT
Similar products

IMT IMT-FOLD01 MIT Folding TesterSPEC

IMT IMT-FOLD01 MIT Folding TesterDetails

IMT IMT-FOLD01 MIT Folding TesterPacking list

SKU
NB029193
Measuring range
0~99999 times
folding angle
0 °~ 142 ° stepless adjustable
folding speed
10~2000CPM
spring tension
4.91~14.72N
Folding collet
The tension change caused by swirl/spin eccentricity is not greater than 0.343N.
Folding head width
19±1mm
Folding radius
0.38±0.02mm
reproducibility
about10%(WHEN30T),about8%(WHEN3000T)
Specimen length
≥140mm
Collet distance
9.5mm
Folding mouth gap distance
0.25mm/0.5mm/0.75mm/1.00mm
Human Machine Interface
5.in LCD display, real-time display of test data
printout
Modular integrated thermal printer
Operating Environment
Temperature (0~35) ℃, humidity < 85%
Power
AC220V，50Hz
IMT-FOLD01
MIT Folding Tester

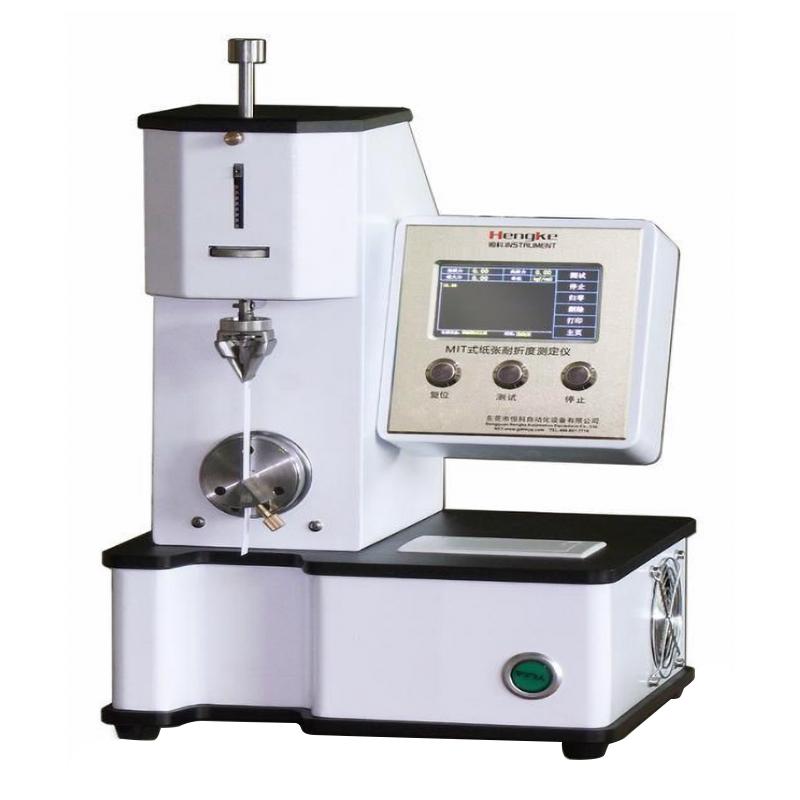

IMT-FOLD01 MIT Folding Tester Picture

The paper folding endurance Tester is used to of paper. Manufacturers, cardboard carton manufacturers, Quality Supervision Bureau, scientific research institutions etc.


FAQ
QWhat is the sample length of the MIT Folding tester?
A Hello, the sample length is ≥ 140mm.
QCan this IMT MIT Folding tester correspond to GB/T2679.5?
A Yes, please refer to the NBchao standards page for specific standards.
