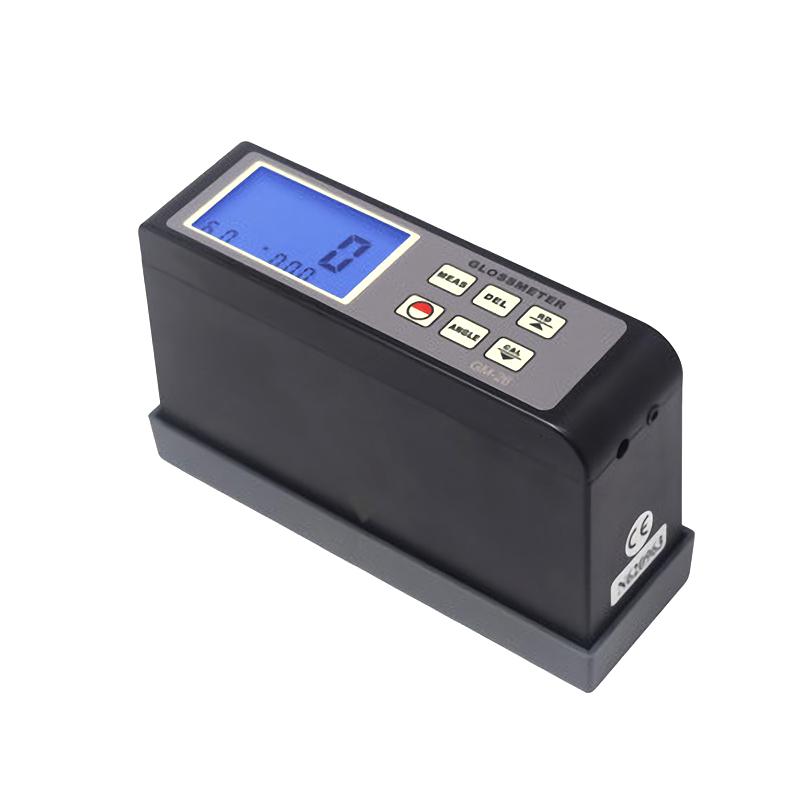

LANDTEK GM-26 Integrated Glossmeter 20 °/60 °

LANDTEK GM-26 Glossmeter is a 20 °/60 ° dual angle Glossiness Meter, measurement Gloss range of 0.1~ 200GU, with single measurement, continuous measurement of a variety of Measurement mode, GM-26 with blue backlit LCD backlit display, measurement Stability of +/- 0.4GU.

Model：

GM-26 (integrated)

Certificate

LANDTEK

Manufacturer authorization

Contact

Details SPEC VIDEO CAT OI

LANDTEK GM-26 (integrated) GlossmeterSPEC

LANDTEK GM-26 (integrated) GlossmeterDetails

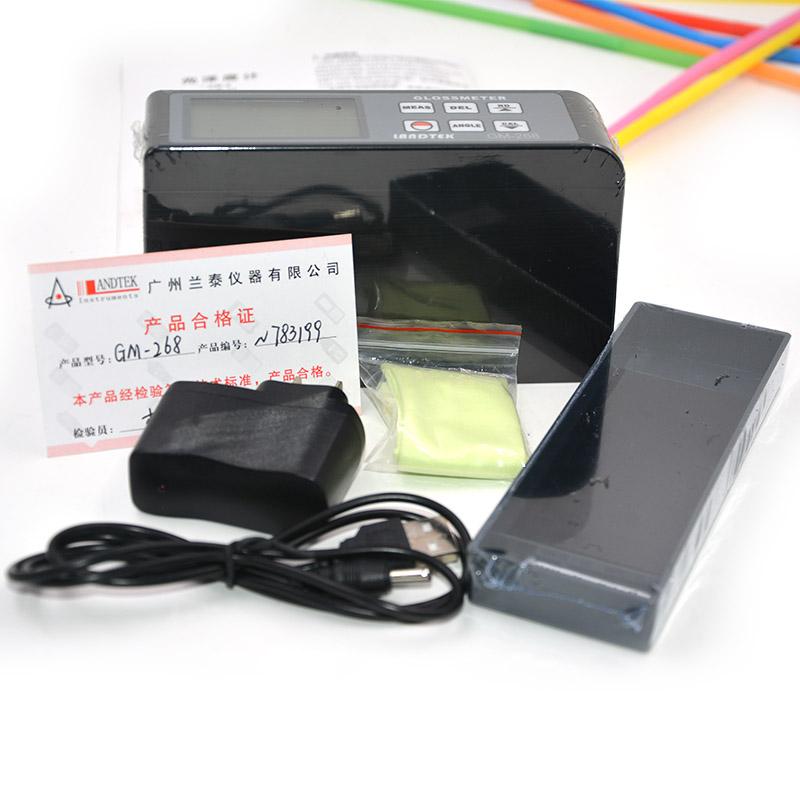

LANDTEK GM-26 (integrated) GlossmeterPacking list

SKU: NB029270

Measurement angle: 20°/60°

Measurement range: 0~200GU

Repeatability: ±0.5GU

Measuring Area: 7*14mm

error of indication: ±1.2GU

Measurement mode: Single measurement, continuous measurement

Graduation: 0.1GU

Standards: ASTM D523、ASTM D1455、ASTM C346 、ASTM C584、 ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、 Gb9754、 GB/T13891、GB7706、GB 8807

Interface: USB interface, RS-232, Bluetooth

Data storage: 254 groups

Display: Blue backlight, 4-digit display, 10 mm LCD

Operating language: Chinese

Dimension: 140*45*75mm

Weight: 305G (including battery)

Power Supply: Built-in rechargeable 3.7V + ion battery

software: RS232 software

Operating temperature: 0~40℃

Stability: ±0.4GU

Relative Humidity: <85%RH

Measurement port shape: ellipse

GM-26 (integrated)

Glossmeter

Description

Gloss Meter GM-26 provides 20/60 degree measurement, repeatability ± 0.5 GU, range: 0.1-200, widely used for gloss measurement of flooring, plastics, automotive coatings, etc.

Features

* Comply with international ASTMD-523, DIN67530, JISZ8741, TAPPIT480 and GB8807 standards. The technical parameters are in line with the standard of JJG696-2002.

* Precise structure, sturdy and durable structure, light appearance, easy to carry.

* Fully intelligent design, fast measurement. Accurate measurement and good repeatability.

* Up to 254 sets of data can be stored for instant viewing or imported to a computer.

* Built-in rechargeable lithium-ion battery.

* There is a backlit display, which is convenient for use in low-light environments.

* RS-232 data cable output, connected with PC.

* Bluetooth Bluetooth data output options available.

Meets standards

LANDTEKGloss meterGM-26 complies with international ASTMD-523, ASTMD1455, ASTM C346, ASTMC584, ASTM D2457, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, Gb9754, GB/T13891, GB7706 and GB 8807 standards. The technical parameters are in line with the standard of JJG 696-2002.

Product Applications

LANDTEK GM-26 gloss Tester is widely used in the maintenance of flooring, quality control of surface cleaning, gloss measurement of stones and tiles, inspection of spray paint, quality control of paint, ink and polished metal surfaces, inspection of paint protective layer, wax film, automobile body paint, plastic moldings, detergents, cleaners, masonry industry, and building exterior evaluation.

GM26 gloss meter real picture

LANDTEK GM-26 (All-in-one) Gloss Meter Details Figure 1

LANDTEK GM-26 (All-in-one) Gloss Meter Details Figure 2

LANDTEK GM-26 (All-in-one) Gloss Meter Details Figure 3

LANDTEK GM-26 (All-in-one) Gloss Meter Details Figure 4

LANDTEK GM-26 (All-in-one) Gloss Meter Details Figure 5
