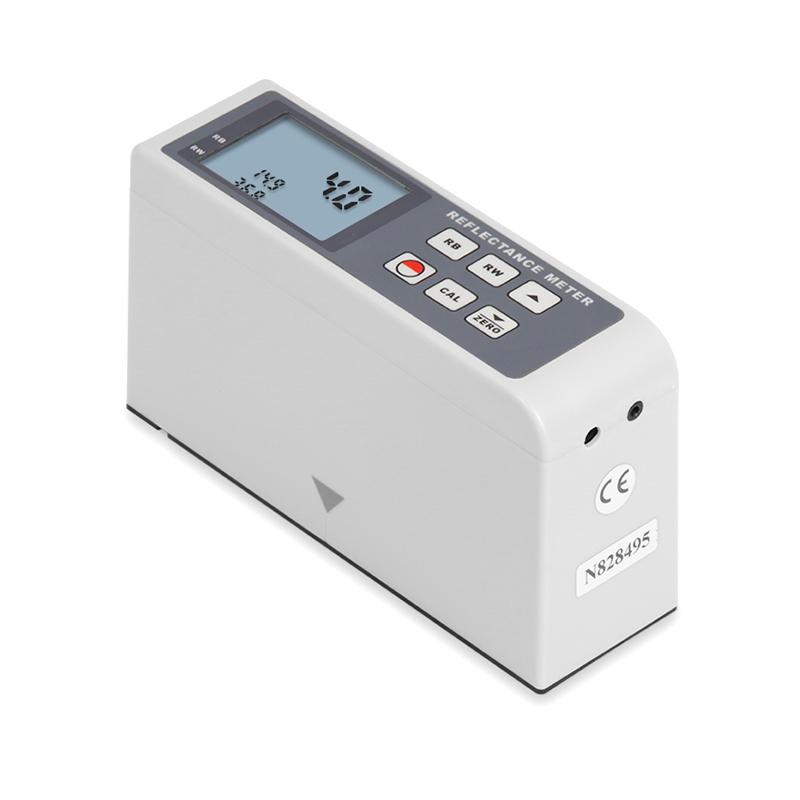

AMITTARI ARM-216 hiding ratio 450nm Light source reflectance meter

ARM-216 (customized)

Reflectance

Indication interval 0~100, resolution 0.1, error of indication +/- 1, measurement aperture 7 * 14mm ellipse, Light source 450nm.

An Miao ARM-216 customized opacity meter adds a 450nm light source to the original ARM-216 reflectance meter.

The reflectance meter can measure the transparency of various coatings, grease, thin films, plastic products, and organic products; it can also measure the reflectivity of solid surfaces (such as three-dimensional movie screens). It is widely used in the inspection and management of product quality or standardization in coatings, pigments, inks, plastics, printing and dyeing, leather, film projection and other industries.

Features

* Its technical indicators have reached the requirements of the international standard ISO3906-1980 (E) for reflectivity, and it can meet the international standards ISO3906-1980 (E), ISO3905, ISO2814, and fully comply with the national standards GB/T13452.3-92, GB9270- 88. GB5211.17-88 requirements for the instrument.

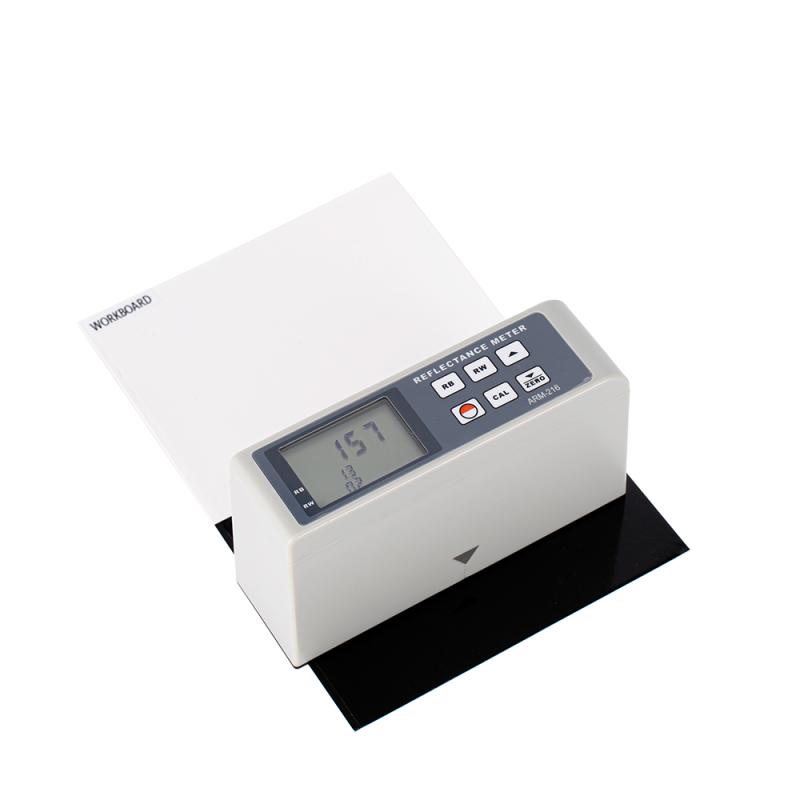

* This instrument consists of a host, a standard board (one black and one black), a working ceramic board (one black and one black), etc.

* When the reflected light of the sample acts on the surface of the photocell, an electric signal is generated and input to the DC amplifier for amplification, and the reading is displayed.

* Use USB data line output to communicate with PC.

* Provide Bluetooth data output option.

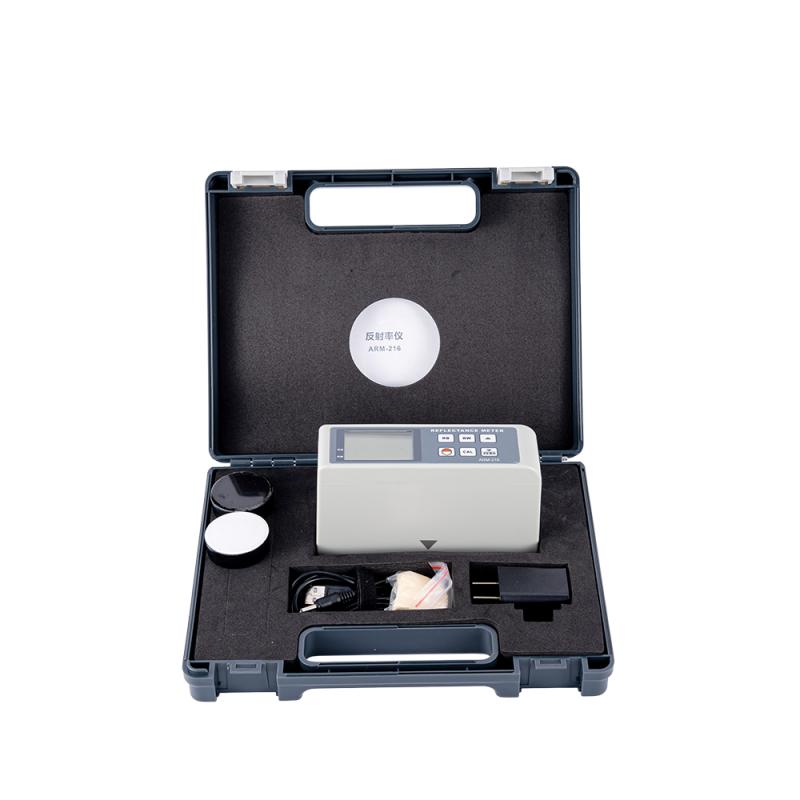

Packing list：Host x1, black and white standard board x1, black and white working board x1, power adapter x1, Optical inspection cleaning cloth x1, portable case x1, instruction manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
