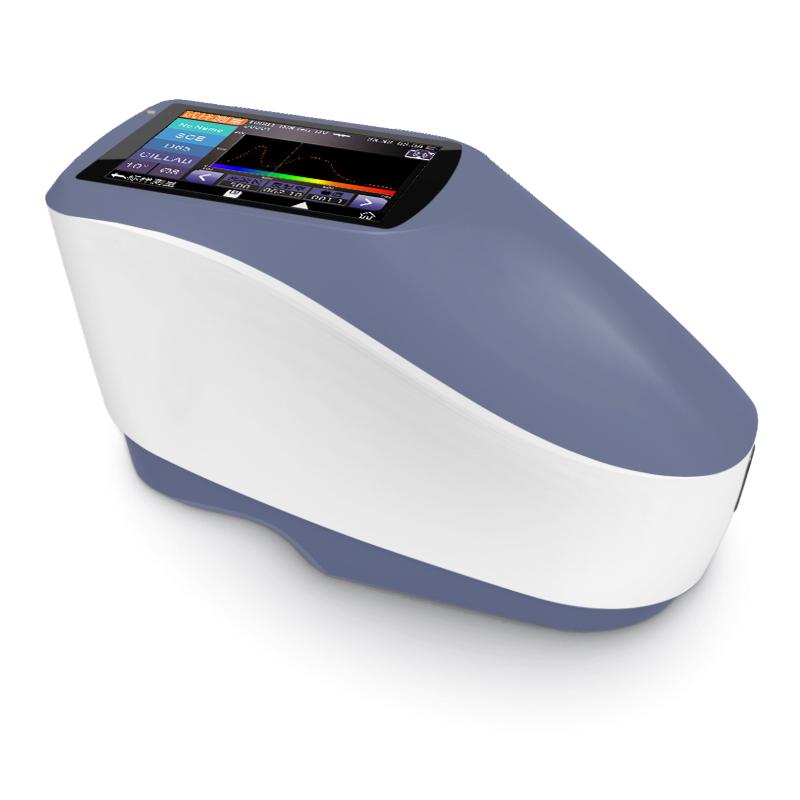

SANCHI YS3020 Grating Colorimeter Standard with φ 10mm measurement caliber
YS3020（Φ10mm）
3NH YS3020（Φ10mm） Color difference meterSPEC
3NH YS3020（Φ10mm） Color difference meterDetails
3NH YS3020（Φ10mm） Color difference meterPacking list
- SKU
- NB029280
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception); SCI/SCE measurement; conforms to CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- Φ48mm
- Lighting source
- Combined LED Light source
- spectroscopy
- Concave grating spectroscopy
- Sensor
- 256 pixel dual array CMOS image sensor
- Wavelength range
- 400~700nm
- wavelength interval
- 10nm
- Light spectrum Bandwidth
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- Φ10mm
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color Space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
- Chroma indicator
- WI, YI, TI, homochromatic index MI, colour fastness, discoloration fastness, force, coverage
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,TL83,TL84,U30,CWF,U35
- display mode
- Light spectrum/data, sample chromatic values, color difference values/plots, pass/fail results, Color bias
- Measurement time
- Approximately 1.0s (approximately 2.6s for simultaneous SCI/SCE testing)
- Spectroscopic reflectance Repeatability
- MAV/SCI, standard deviation within 0.1% (400~700nm: within 0.2%)
- Inter-instrument Agreement
- ΔE*ab<0.2
- Measurement mode
- Single measurement, average measurement (2~ 99 times)
- positioning method
- camera positioning
- Dimensions
- 184*77*105mm
- Weight
- Approx. 600g
- Battery life
- Lithium battery, 5000 cycles in 8 hours
- Lighting source life
- More than 3 million measurements in 5 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- Interface
- USB/RS-232, Bluetooth ® 4.0 Dual Mode (2.1 Compatible)
- data storage
- 1000 master standards, 20,000 samples (one data can include SCI/SCE at the same time)
- Operating language
- Simplified Chinese, English
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- Light spot size
- Φ8mm
- Repeatability of chromatic value
- MAV/SCI,ΔE*ab 0.04以内
Introduction
3NH YS3020 grating Spectrophotometer is a domestic (CN) grating Spectrophotometer independently developed by 3nh company with independent intellectual property rights, with many types of light sources, a single 4mm aperture, USB/Bluetooth 4.0 dual mode, high precision, standard storage capacity, for accurate color analysis and transmission in the laboratory, SCI and SCE reflectance data for accurate measurement of samples/fluorescence samples, and can accurately measure and express various color difference formulas and color indices in a variety of color spaces.
Features
1. D/8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;
2. Adopt a combination of high life and low power consumption LED light source, including UV/exclusion UV measurement;
3. The beautiful appearance is well combined with the structural design in line with human mechanics;
4. Standard Φ 4mm caliber, suitable for more samples to be measured, and simultaneous measurement of SCI and SCE;
5. Measure the spectrum of the sample, the Lab data is accurate, which can be used for color matching and accurate color transmission;
6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;
7. USB/Bluetooth 4.0 dual communication mode (compatible with 2.1), wider adaptability;
8. Super dirt-resistant, stable, high-reflectivity standard whiteboard;
9. Large-capacity storage space, which can store more than 20,000 pieces of test data;
10. Camera framing positioning;
11. The PC software has powerful function extensions.
Application
YS3020 grating Spectrophotometer It can easily realize the accurate transmission of color, and can also be used as a testing equipment for accurate color matching system. It is widely used in plastic electronics, paint and ink, textile and garment printing and dyeing, printing and paper products, automobiles, cosmetics and food industries, and is widely used in scientific research institutions and laboratories.
Functional interface
Product display diagram
