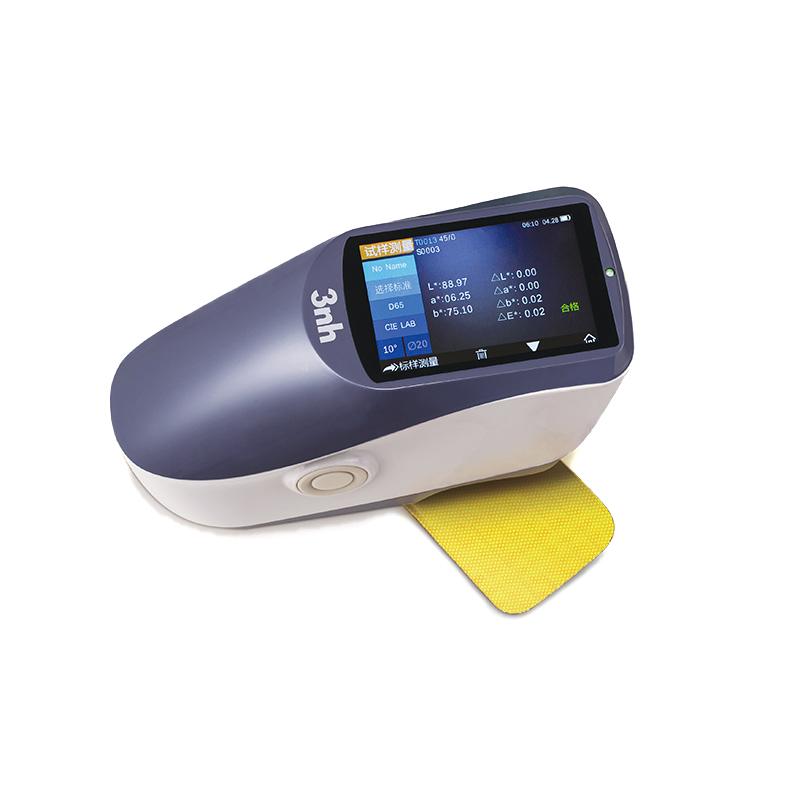

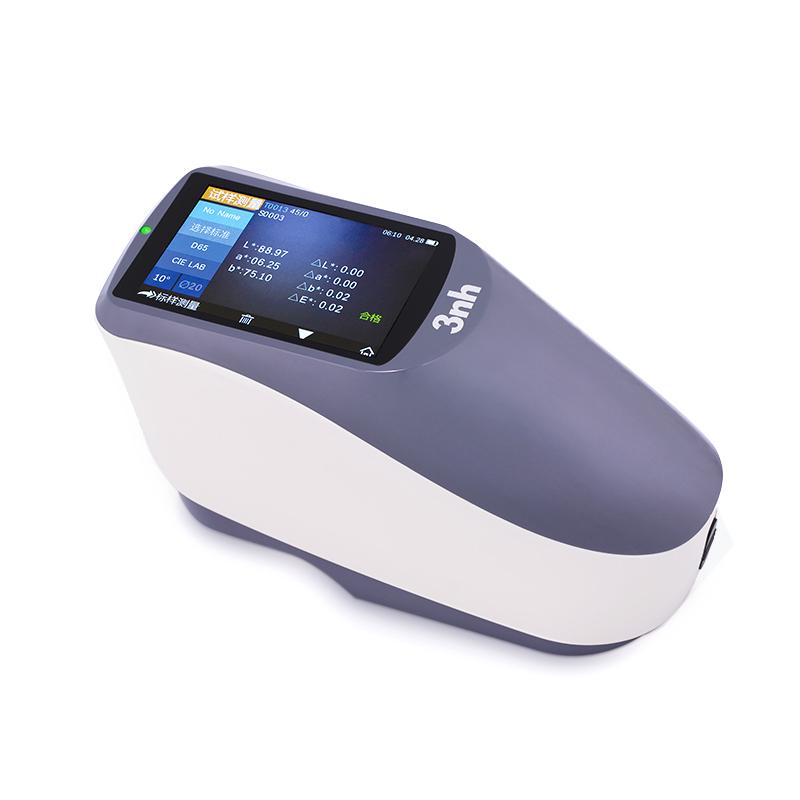

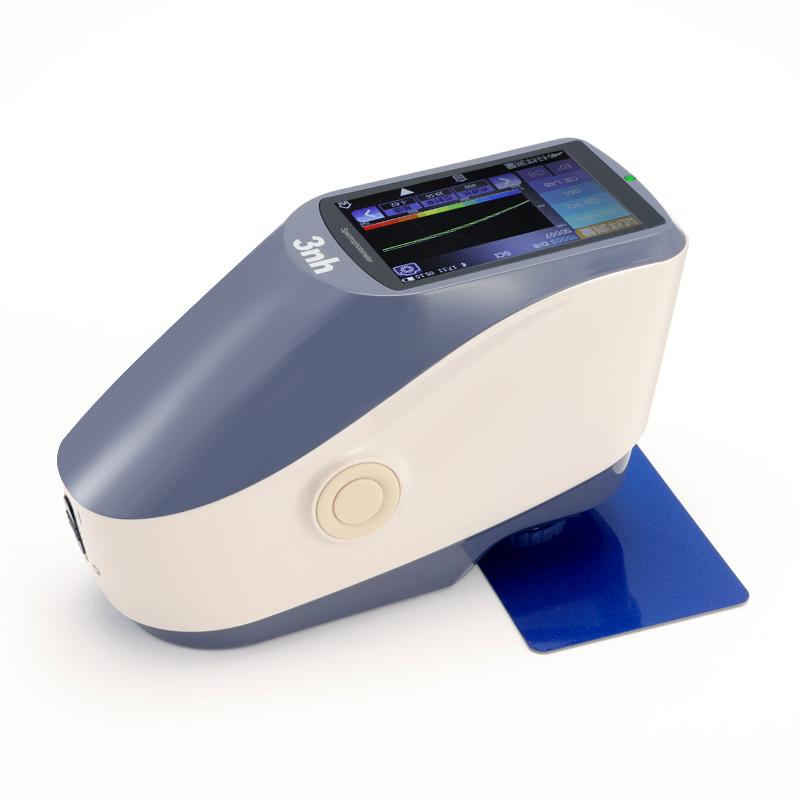

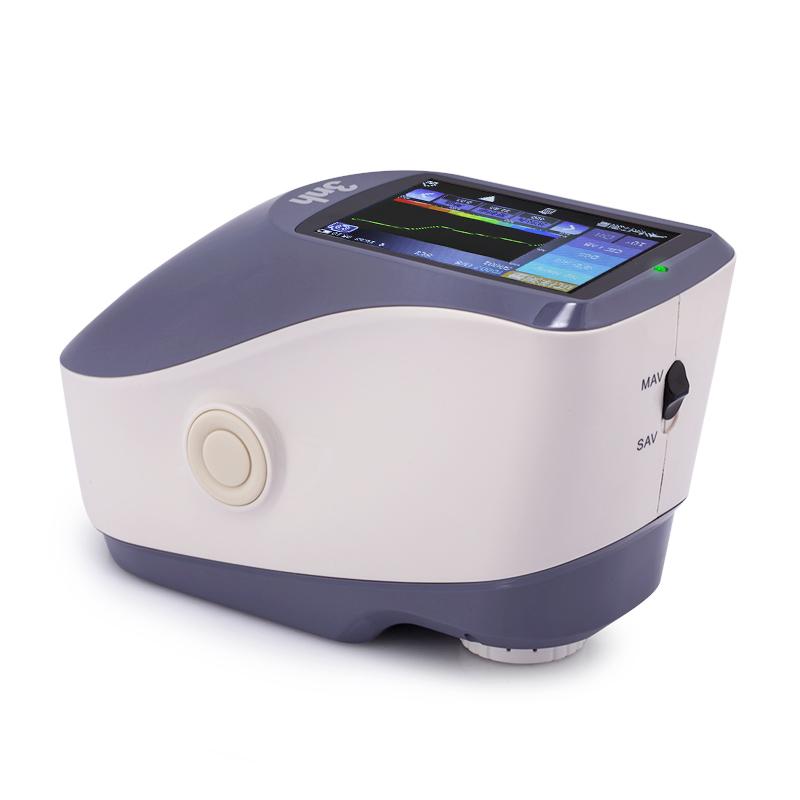

3NH YS4510 Colorimeter measurement aperture φ 4mm

YS4510（Φ4mm）

Raster Colorimeter

4Mm measurement aperture, 45/0 lighting mode, for arc surface, small area test, integrating ball φ 48mm, combined LED Light source, touch screen, with PC software, chromatic value Repeatability Delta E * ab 0.05.

YS4510 Universal Spectrophotometer adopts CIE No.15 45/0 (45-degree ring illumination, 0-degree reception) geometric optical structure, adopts concave grating spectroscopic method, and can accurately measure sample reflectance and various chromaticity data. Users can customize a single Φ8, Φ4, or Φ2mm measurement caliber according to sample requirements, which is used for accurate color measurement and quality control in industries such as traffic road signs, plastic electronics, paint inks, textile and garment printing and dyeing, printing, and ceramics.

Under the 45/0 geometric optical lighting conditions recommended by CIE, the instrument can accurately measure the reflectance data of samples/fluorescent samples, and can accurately measure and express various color difference formulas and color indices in various color spaces. With the help of this instrument, accurate color transfer can be easily achieved, and it can also be used as a testing device for an accurate color matching system. The instrument is also widely used in the quality control of color difference of various products. The instrument is equipped with high-end color management software, which can be connected to a computer to achieve more functional expansion.

The grating spectrometer can easily achieve accurate color transfer, and can also be used as a detection device for an accurate color matching system; it is used for accurate color measurement and quality control in industries such as traffic road signs, plastic electronics, paint inks, textile and garment printing and dyeing, printing, and ceramics.

Features

a. The beautiful appearance is well combined with the structural design in line with human mechanics;

b.45/0 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

c. Using a combined LED light source with long life and low power consumption, including UV / excluding UV (some models);

d. Φ2/4/8mm single customized caliber can be selected at will, adapting to more tested samples;

e. Measure the sample spectrum, the Lab data is accurate, and can be used for color matching and accurate color transfer;

f. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS Detector, etc.;

g. USB communication mode, wider adaptability;

h. Super dirt-resistant and stable standard whiteboard;

i. Large-capacity storage space, which can store more than 20,000 test data

j. Two standard observer angles, multiple light source modes, multiple color systems, and chromaticity indicators that meet multiple standards to meet the needs of various customers for color measurement;

k. PC-side software has powerful function extensions;

l. Built-in standard polygon tolerance setting and specific traffic road sign color gamut, especially suitable for judging the brightness factor and chromaticity performance of traffic road signs.

Packing list：host X1, power adapter X1, data cable X1, correction box X1, manual X1, certificate X1, warranty card X1, correction box X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
