CHNSPEC CS-610B Portable Colorimeter 6mm measurement caliber

CS-610B（6mm）

Colorimeter

6Mm measurement diameter, φ 40mm integrating ball, SCI and SCE dual Measurement mode, can design pre-positioning plate, chromatic value Repeatability Delta E * ab 0.02, support camera framing, with metrology authentication book, can be equipped with Colorschemer studio, does not contain UV Light source.

Introduction

ChromatographyCS-610 seriesThe Spectrophotometer is a Spectrophotometer with a universal D/8 lighting condition, which can not only measure the color difference between the sample and the standard sample, but also analyze the color value of the measurement object, and is equipped with a variety of measurement light sources.CS-610SpectrophotometerColor space with a variety of measurements.

CS-610 series Spectrophotometer is a portable color measurement analyzer, including CS-610A and CS-610B modelsCS-610BThe caliber can be customized according to the actual needs of customers. In addition to being light to carry and easy to operate, CS-610 spectrophotometry is designed based on ergonomics, easy and convenient operation, and has a novel and fashionable appearance. In addition, the setting of the pre-positioning plate is adopted, which eliminates the need to use standard blackboards and whiteboards in the calibration process of traditional Colorimeters and Colorimeters. Compared with the traditional color Detector, the performance has been greatly improved, and it has the characteristics of superior performance and high cost performance among similar products at home and abroad. Widely used in factory and laboratory operations, this Spectrophotometer is sufficient for excellent color measurement in quality control in almost all application areas.

Benefits:

· Obtained domestic (CN) metrology certification

· Large-capacity storage space

· Extra-large TFT display

· Novel and stylish design based on ergonomics

· Simple operation mode, simple operation interface

· The pre-positioning plate design can easily cope with the CS-610A/B Spectrophotometer test alignment

· CS-610A/B adopts LED light source, which has a longer service life.

· Low-power design, high-capacity rechargeable battery configuration

· Simultaneous measurement of SCI (including specular reflection) and SCE (elimination of specular reflection)

· USB data is transferred, and the PC software controls the color data

· It can be connected to a micro printer for printing

· It has a camera framing function

CS-610 Spectrophotometer application

●Can be used in the laboratory, factory or field operation, enough to achieve excellent color measurement in quality control in almost all application areas;

●Lower price, get high-performance spectroscopic color management tools, to meet the urgent needs of small and medium-sized enterprises for high-end instruments;

●Built-in software with all the necessary color equations, standard light sources for different tasks, and a large number of industry- and application-specific indicators;

●The operating system supports bilingual interface in Chinese and English, and CHNSpec provides customized services for interface language according to the actual needs of customers.

Features

● Professional horizontal design, without any moving parts, avoids the jitter of CS-610A/B Spectrophotometer when handheld, and makes the test more accurate

● USB data transfer, PC software for host computer operation, so that your color control is more free

● Large storage space: 100 sets of standard samples can be stored, and the maximum number of test records under each group of standard samples is 200

● CS-610A/B Spectrophotometer can measure SCI and SCE at the same time, and display SCI/SCE data through LCD panel.

● 610A and 610B use 10mm, 4mm and 6mm measuring aperture respectively, and 610B can customize the caliber size according to user requirements.

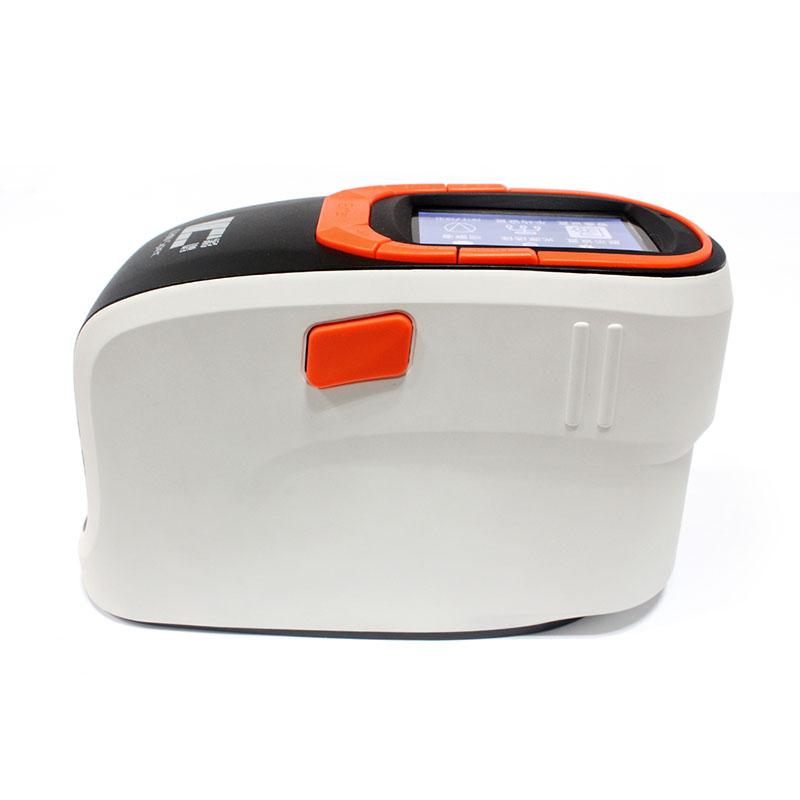

Actual picture of the product

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
