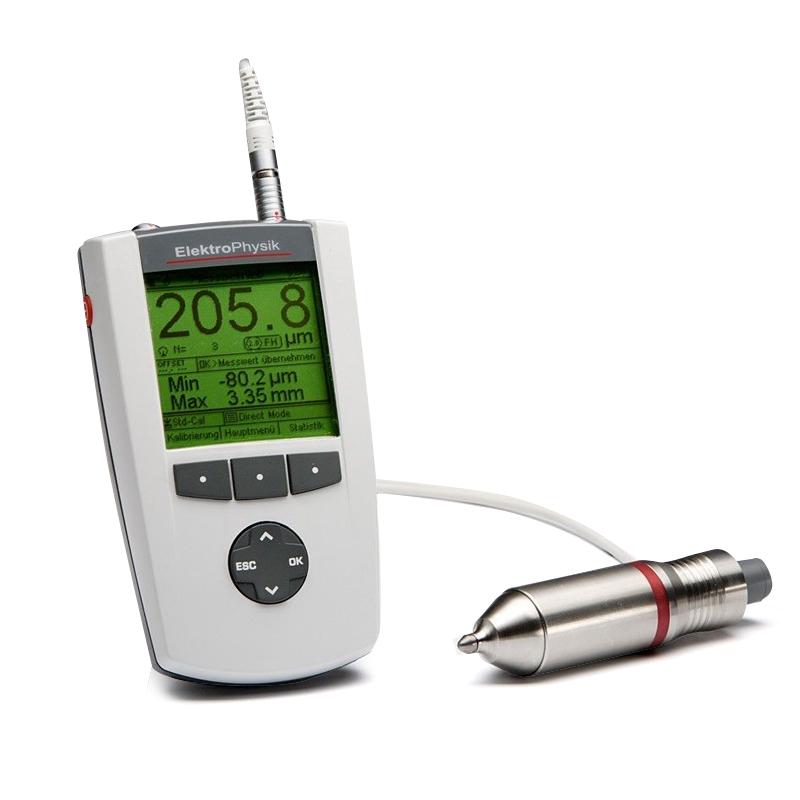

EPK MiniTest 7200 FH10 high-precision wall Thickness Gauge 24mm range model

MiniTest 7200 FH10(24mm)

Wall Thickness Gauge host

Features

• Suitable for measuring non-magnetic materials

• Measure thicknesses up to 24mm

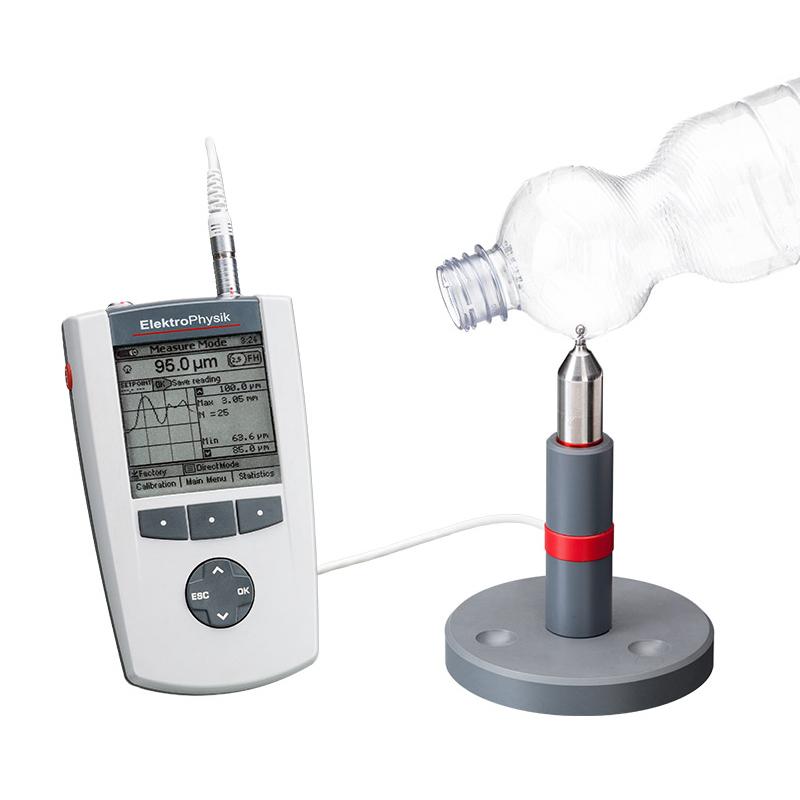

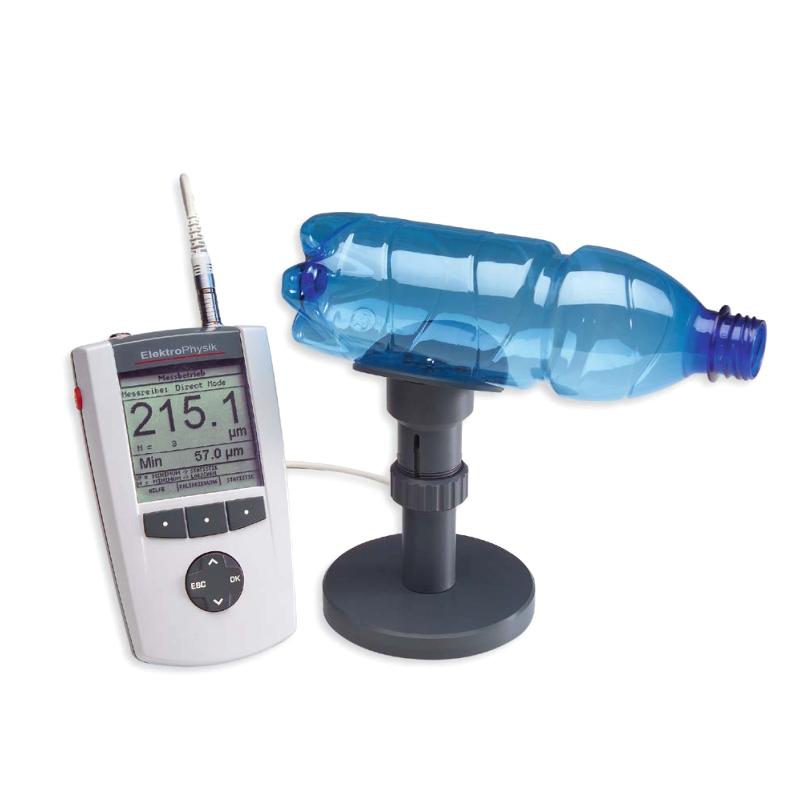

• Suitable for packaging materials such as bottles,glass or plastic containers

• For composites, in aviation or steamComplex shapes of aluminum in the automotive industry ortitanium parts

• Menu-based user interface

• Contextual online help

• S PC statistical process control

• Very accurate through digital signal processing

Extendable measuring range up to 24 mm

High-precision wall thickness measurement

MiniTest 7200 FH/MiniTestThe 7400 FH is a portable thickness measurementtool for accurate measurement of thicknesses up to 24 mmmaterials. Portable and compact form factor makes:It can be carried out both at the production site and in the laboratoryOperate. Both models can be re-various non-...Magnetic materials are carried out simply, non-destructively andHigh-precision thickness measurements, regardless of themsize, shape, and material.

They are accurate measurements of sharp angles, small radiiand the workpiece with complex shapesTool.

The MiniTest 7200 FH can be displayed when:Front Measurements, Maximum Minimum, Offsetmode and automatically store up to 100,000data.

The MiniTest 7400 FH offers except:All the work of the MiniTest 7200 FHIn addition, there are statistical charts and charts, real-time trendsPotential graphs for up to 200 batch groupslibrary, and the storage amount is increased to automatic storageUp to 240,000 pieces of data, such as per group1,200 pieces of data.

SIDSP ® technology ensures higher precisionMiniTest 7200 FH/MiniTestThe 7400 FH features a built-in number of sensorsWord Signal Processing (SIDSP ®). placeThere is a measurement signal that is digitized within the sensorGenerated, fully digitalized. OnlyThe processed values are transferred to the hostDisplay, statistical analysis, and storage.

Two probes are available

In order to achieve the most accurate reading possible,Two optional probes are available, and the probes are easyReplace and harden the top, use a variety of gaugesGrid steel balls can cover different thicknessesSurround. The FH 4 probe uses common steel ballsIt is used with a measuring range from 0 to 6 mmMagnetic steel balls can measure up to 9 mm.

The FH 10 probe is measured using ordinary steel ballsThe range is from 0 to 13 mm while using magnetismBalls can be measured up to 24 mm. twoThe probes are interchangeable, and:Two host models can be connected.

FH 4 probe(0 to 6 mm standard, 9 mm optional)

A protective sleeve containing a shield for the magnetic field of the probe and

– 3 high-precision standardsApprox. 0.25 mm, 1 mm, 3 mm

– FH 4 probe holder, spring device

– Diameter 1.5 mm and 2.5 mm steelBeads (100 each)

– Diameter 4 mm steel balls (50 pcs)

– Zero point correction standard for diameter 1.5mm, 2.5 mm and 4 mm steel balls

(1 per ball)

FH 10 probe(0 to 13 mm standard, 24 mm optional)

A protective sleeve containing a shield for the magnetic field of the probe and

– 3 high-precision standards,Approx. 1 mm, 3 mm, 8 mm

– FH 10 probe holder, spring device

– 2.5 mm diameter steel balls (100 pieces)

– 4 mm diameter steel balls (50 pieces)

– 6 mm diameter steel balls (25 pieces)

– Zero point correction standard for diameter 2.5mm, 4 mm and 6 mm steel balls

(1 per ball)

Professional reference ball design

MiniTest 7400 FH/MiniTestThe 7200 FH uses specially treated reference steelBead. The results of such a design of steel balls can be improved0.5% of the measurement reproducibility. ginsengThe size of the steel ball is 1mm,1.5mm、2.5mm、4.0 mm(FH4), and 2.5mm, 4 mm, 6mmand 9mm (FH 10). Measuring range alsoIt can be expanded by magnetic steel balls to:It measures very thick wall thicknesses, such as aluminum orengine parts made of titanium, or veryThick plastic products.

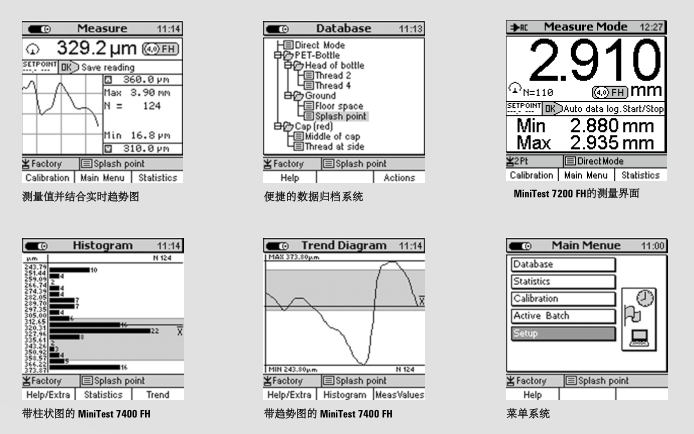

Innovative menu control and data archiving

MiniTest 7200 FH/MiniTestThe 7400 FH is controlled by an easy-to-understand menuoperations, and data archiving,and the application class of ordinary computersLike.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
