TOKI TOKI TVB-25L Rotational Viscometer viscosity up to 30000000mP.s

SE
TVB-25L Rotational Viscometer standard M1~ M4 four rotors, measurement viscosity of 30000000mP.s, is an experimental digital Viscometer, TVB-25L with automatic zero correction and deviation correction function, support remote operation.
Model：
Contact
Details SPEC VIDEO CAT
Similar products

TOKI TVB-25L Rotational viscometerSPEC

TOKI TVB-25L Rotational viscometerDetails

TOKI TVB-25L Rotational viscometerPacking list

SKU
NB029318
Rotor specification
M1~M4
Rotor speed
0.01~100rpm
step
1001 steps, step 0.1rpm
Measurement mode
Manual, automatic stop time, automatic stop viscosity
Measurement memory
5 ways per mode
Viscosity display
%，mPa.s，Pa.s，kPa.s，cP/P
Measurement Accuracy
±1%F.S
Repeatability
±0.2%F.S
Measuring temperature
10~60℃
Interface
RS232C，USB
input signal
Measurement start signal (no Voltage contact)
Output signal
Measurement signal, beep signal, measurement end signal (when automatically stopped) Output signal is open collector electrode
Operating temperature
0~40℃
Allowable Relative Humidity
< 90% no condensation
Power
AC100- 230V；50-60Hz
power consumption
Less than 20W
Rotor material
stainless steel
Host size
105*220*320mm
Base size
290*300*450mm
Weight
About 8Kg (including bracket)
Range file
M、2.5M、5M
Torque
67.37μN·m、168.4μN·m、336.9μN·m
Measurement range
15~6000000mP.s、25~15000000mP.s、50~30000000mP.s
TVB-25L
Rotational viscometer

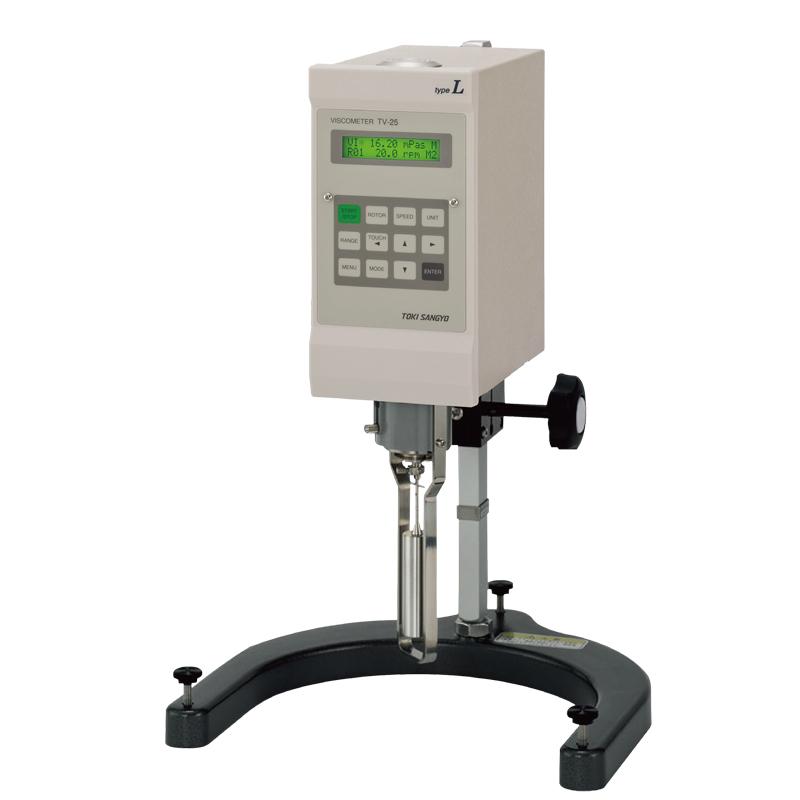

TOKI TOKI TVB-25L Rotational Viscometer viscosity up to 30000000mP.s Picture

Introduction

The combination of "torque balance servo method" and "pivot-free structure" achieves good linearity and reproducibility of data. Automatic range adjustment derived from dynamic range makes the program measurement function more convenient to use.

The "pivot-free structure" that does not use jewel bearings ensures reliable linearity and reproducibility of viscosity values ​​over a wide measurement range.

The dynamic range is the biggest charm of TV-25/35 viscometer.

With one viscometer, the viscosity range can be expanded up to 8 times without having to replace the spindle, and the viscosity can be measured continuously.

Features

◆Torque balance servo method

Using torque balance and servo method, zero position measurement method is adopted. Even within a wide measuring range, it is not affected.

◆Multiple measurement ranges

The wide dynamic range enables multi-weight range measurement. The measurement range can be expanded up to 8 times, and continuous measurement is possible without replacing the rotor.

◆No pivot structure

A flexible hinge system replaces pivots and gems, resulting in a pivot-free structure.

◆Rotation speed

Increasing at a speed of 0.1 rpm, any rotation speed can be set between 0.1 and 100.0 rpm.

◆Automatic zero point correction and deviation correction

This automatic feature makes instrument calibration easy.

◆Measurement mode memory

Manual mode, automatic stop (time, viscosity) mode, each mode has 5 memory modes.

◆Auto stop

The measurement time and viscosity value can be automatically terminated.

◆Remote operation

The viscometer can be remotely operated to start and end measurement using external input signals. In addition, the output signal (collector open circuit) can be used to confirm the status of the viscometer by lighting and beeping.

◆Upper and lower limit alarms

When the upper and lower limit settings are exceeded, a buzzer will sound.

◆Preheating

The measurement can be started automatically after preheating according to the preset preheating time. The time until the measurement starts is displayed as a countdown.

◆Data exchange

It is interchangeable with conventional viscometer data and complies with JIS and ISO standards.

plan

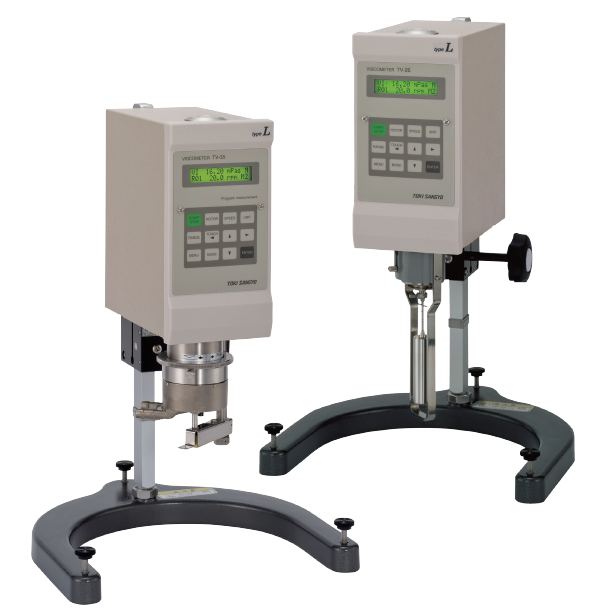

Toki Industrial TVB-25L Rotational Viscometer details picture 1

FAQ
QWhat is the Rotor velocity of this Viscometer?
A Hello, the speed is 0.01~ 100rpm.
QDoes the rotational viscometer meet the ASTMD3794 specification?
A Model TVB-25L rotational viscometer
