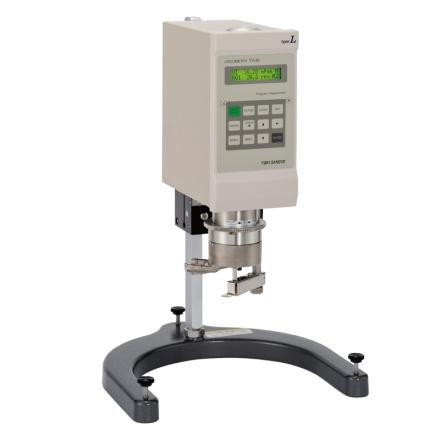

Specifications
| Rotor specification | H2、H3、H4、H5、H6、H7 |
| Rotor speed | 0.01~100rpm |
| step | 1001 steps, step 0.1rpm |
| Measurement mode | Manual, automatic stop time, automatic stop viscosity, program mode (up to 40 segments) |
| Measurement memory | 5 ways per mode |
| Viscosity display | %，mPa.s，Pa.s，kPa.s，cP/P |
| Measurement Accuracy | ±1%F.S |
| Repeatability | ±0.2%F.S |
| Measuring temperature | 10~60℃ |
| Interface | RS232C，USB |
| input signal | Measurement start signal (no Voltage contact) |
| Output signal | Measurement signal, beep signal, measurement end signal (when automatically stopped) Output signal is open collector electrode |
| Operating temperature | 0~40℃ |
| Allowable Relative Humidity | < 90% no condensation |
| Power | AC100- 230V；50-60Hz |
| power consumption | Less than 20W |
| Rotor material | stainless steel |
| Host size | 105*220*320mm |
| Base size | 290*300*450mm |
| Weight | About 8Kg (including bracket) |
| Range file | M、2.5M、5M |
| Torque | 718.7μN·m、1437.4μN·m、5749.6μN·m、2156.1μN·m |
| Measurement range | 100~40000000mP.s、100~80000000mP.s、400~320000000mP.s、150~120000000mP.s |
Packing list
Viscometer X1, certificate of conformity, warranty card, manual
After-sales instructions
Warranty days: 365 days
Where to buy Dongji Nissan viscometer products from the North and South Tide Mall,During the warranty periodFailure or damage caused by non-human factorsFree repairs.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29321/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
