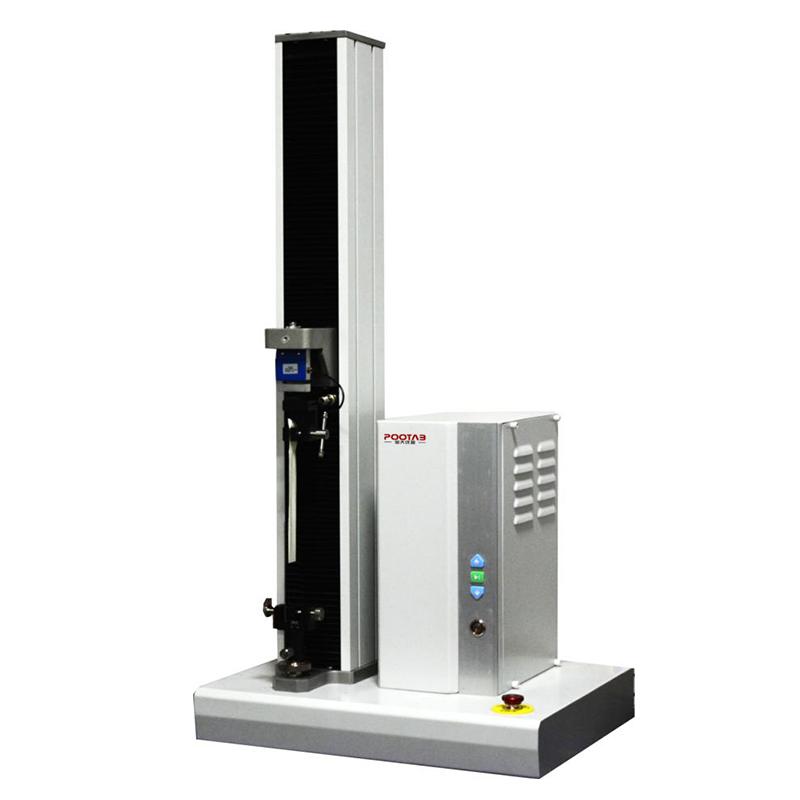

Baoda PT-6081BPL Computer Peel strength Tester 20kg
PT-6081BPL(20kg)
Perfect PT-6081BPL(20kg) Peel strength TesterSPEC
Perfect PT-6081BPL(20kg) Peel strength TesterDetails
Perfect PT-6081BPL(20kg) Peel strength TesterPacking list
- SKU
- NB029445
- Capacity selection
- 20kg
- Force Precision
- <±1%
- force resolution
- 1/500000
- force resolution
- 1/10000
- Measurement range
- 1~100%F.S
- Precision indication
- Better than +/- 1%
- Test speed range
- 0.5~500mm/min
- effective travel
- ≤ 650mm (without fixture)
- Test space
- Φ120mm
- Force unit
- Measurement units including SI units, users can also customize the required units
- shutdown mode
- Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing
- test project
- Can do tension, pressure and fatigue test (optional function)
- Dimensions
- 570*470*1200mm
- Weight
- Approx. 70kg
- Power system
- Stepping motor
- Power supply Voltage
- 1PH，AC220V，50Hz，10A或指定
Introduction
PT-6081BPL Computerized Peel Strength Tester is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, and is used for peel strength testing of various adhesive products in different ways. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength.
Meets standards
ASTM D903、GB/T2790、GB/T2791、GB/T2792、CNS11888、JIS K6854、JIS PSTC7
Software Introduction
The professional testing software conforms to the relevant provisions of more than 30 national standards such as GB228-87 and GB228-2002, and can be tested and processed according to GB, ISO, JIS, ASTM, DIN and a variety of standards provided by users, and has good scalability.
