Baoda PT-6081BPL Computer Peel strength Tester 50kg

Baoda PT-6081BPL computer Peel strength Tester capacity of 50kg, is a better than +/- 1% experimental Tensile Tester, effective Test space in 120mm diameter range, PT-6081BPL standard 180 ° disbonding fixture, with upper and lower limit safety setting function.
Certificate
Contact
Details SPEC CAT

Perfect PT-6081BPL(50kg) Peel strength TesterSPEC

Perfect PT-6081BPL(50kg) Peel strength TesterDetails

Perfect PT-6081BPL(50kg) Peel strength TesterPacking list

SKU
NB029446
Capacity selection
50kg
Force Precision
<±1%
force resolution
1/500000
force resolution
1/10000
Measurement range
1~100%F.S
Precision indication
Better than +/- 1%
Test speed range
0.5~500mm/min
effective travel
≤ 650mm (without fixture)
Test space
Φ120mm
Force unit
Measurement units including SI units, users can also customize the required units
shutdown mode
Upper and lower limit safety settings, emergency stop button, program power and elongation settings, test piece damage sensing
test project
Can do tension, pressure and fatigue test (optional function)
Dimensions
570*470*1200mm
Weight
Approx. 70kg
Power system
Stepping motor
Power supply Voltage
1PH，AC220V，50Hz，10A或指定
PT-6081BPL(50kg)
Peel strength Tester

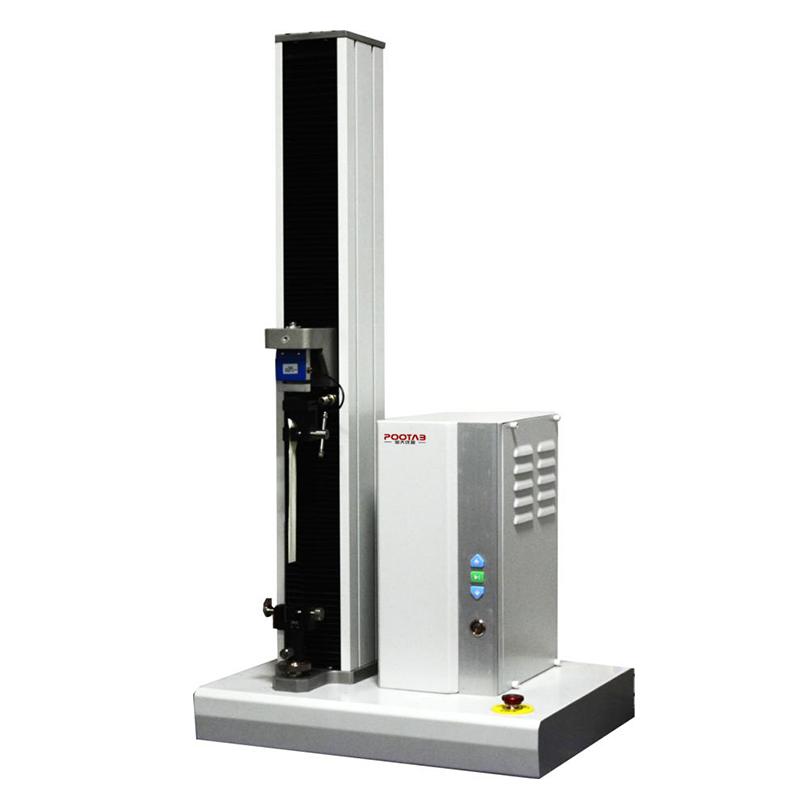

Baoda PT-6081BPL Computer Peel strength Tester 50kg Picture

Introduction

PT-6081BPL Computerized Peel Strength Tester is a test instrument designed and developed by the company for the adhesive tape and adhesive industry, and is used for peel strength testing of various adhesive products in different ways. Different fixtures can be used to do peel tests such as 180°, 90°, T-shaped and floating roller method (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength.

Meets standards

ASTM D903、GB/T2790、GB/T2791、GB/T2792、CNS11888、JIS K6854、JIS PSTC7

Software Introduction

The professional testing software conforms to the relevant provisions of more than 30 national standards such as GB228-87 and GB228-2002, and can be tested and processed according to GB, ISO, JIS, ASTM, DIN and a variety of standards provided by users, and has good scalability.

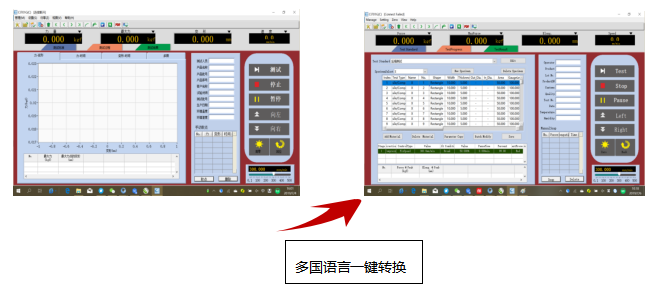

Baoda Instrument PT-6081BPL(50kg) Computerized Peel Strength Tester Details Figure 1

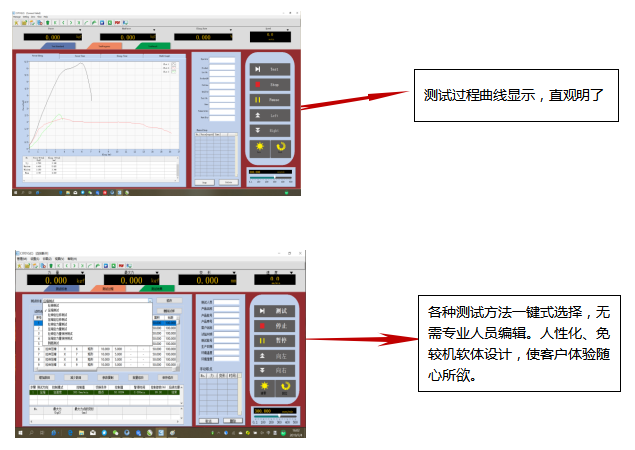

Baoda Instrument PT-6081BPL(50kg) Computerized Peel Strength Tester Details Figure 2

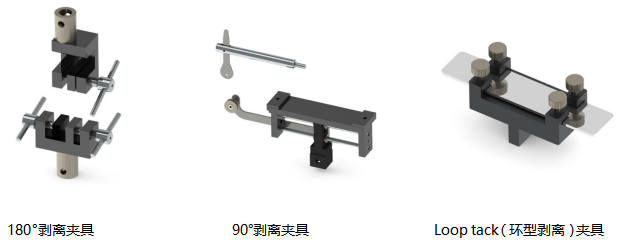

Peel fixture type

Baoda Instrument PT-6081BPL(50kg) Computerized Peel Strength Tester Details Figure 3

FAQ
QMeet YY/T0148 Peel strength tester
A PT-6081BPL (50kg) Peel strength tester, please refer to it.
