IWAVE WT13 Tri-channel Transmittance meter Visible/UV/IR light

WT13

Transmittance meter

Introduction

The measurement principle of the light transmittance meter is to use a light source to irradiate the measured transparent substance, and the sensor detects the incident light intensity of the light source and the light intensity after passing through the measured substance respectively, and the ratio of the transmitted light intensity to the incident light intensity is the transmittance rate, expressed as a percentage.

Features

1) This instrument is suitable for the light transmittance measurement of all transparent and translucent parallel plane samples (such as automobile glass, architectural glass, plastic sheet and mobile phone glass, etc.).

2) The three-channel model integrates three light transmittance measurements of visible light, infrared light and ultraviolet light.

3) The instrument has automatic calibration and manual calibration functions, and automatically calibrates to 100% light transmittance after starting up. When performing manual calibration operations, the LCD will display prompt information in time, and the operation is simple and clear.

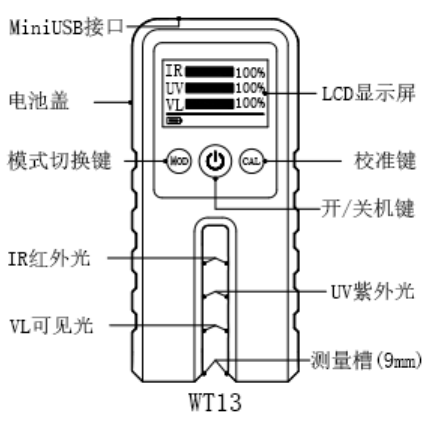

Product Structure

Packing list：Host X1, No. 7 dry battery X4, instruction manual X1, test piece X1, certificate warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
