IWAVE WN700S Portable Colorimeter measurement caliber 11mm/6mm

SE
11Mm and 6mm double measurement aperture, can measure whiteness and yellowness value, SCI and SCE double light-containing mode, concave Diffraction grating mode, Repeatability Delta E < 0.05.
$3304.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

IWAVE WN700S ColorimeterSPEC

IWAVE WN700S ColorimeterDetails

IWAVE WN700S ColorimeterPacking list

SKU
NB029457
Lighting method
CIE recommended lighting reception method: d/8
Color space
CIEL * a * b *, CIEL * C * h, CIEL * u * v *, HunterLab, CIEXYZ, Yxy, reflectance, CMYK, YI yellowness, Gantz whiteness, ISO brightness (R457 whiteness), Taube whiteness, z whiteness, sRGB
Observation light source
A,C,D50,D55,D65,D75,F1,F2(CWF),F3,F4,F5,F6,F7,F8,F9,F10,F11(TL84),F12(U30)
lighting source
Combination LED
Color difference formula
ΔE*ab,ΔE*Ch,ΔE*uv, ΔE*Hunter,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00,ΔE*sRGB,ΔE*BFD,ΔE*FMCII
Measurement caliber
F11mm / F6mm
Sensors
Linear array CMOS@256 pixels
Spectroscopic method
Diffraction grating
Viewing Angle
CIE 2 ° / 10 °
Wavelength range
400~700nm
wavelength spacing
10nm
Measurement time
2.5s
Reflectance Measurement Range
0~200%
Accuracy of repeability
△ E < 0.05 (the average of 30 measurements of the whiteboard)
Inter-station difference
ΔE * from < 0.3
Light source life
More than 50,000 hours
Battery life
More than 10000 measurements
Display
TFT True Color 2.8 inches @(16:9)
Data storage
Store 100 master standards and 16,000 samples
Operating Temperature
0℃-40℃（32℉-104℉）
Storage environment
-20℃-50℃
Humidity range
Relative Humidity below 85%, no condensation
Weight
340g
Dimensions
180*76*60mm
Packing size
400*240*340mm
Light spot size
8mm/4mm
Light-containing method
SCI / SCE
WN700S
Colorimeter
11Mm and 6mm double measurement aperture, can measure whiteness and yellowness value, SCI and SCE double light-containing mode, concave Diffraction grating mode, Repeatability Delta E < 0.05.

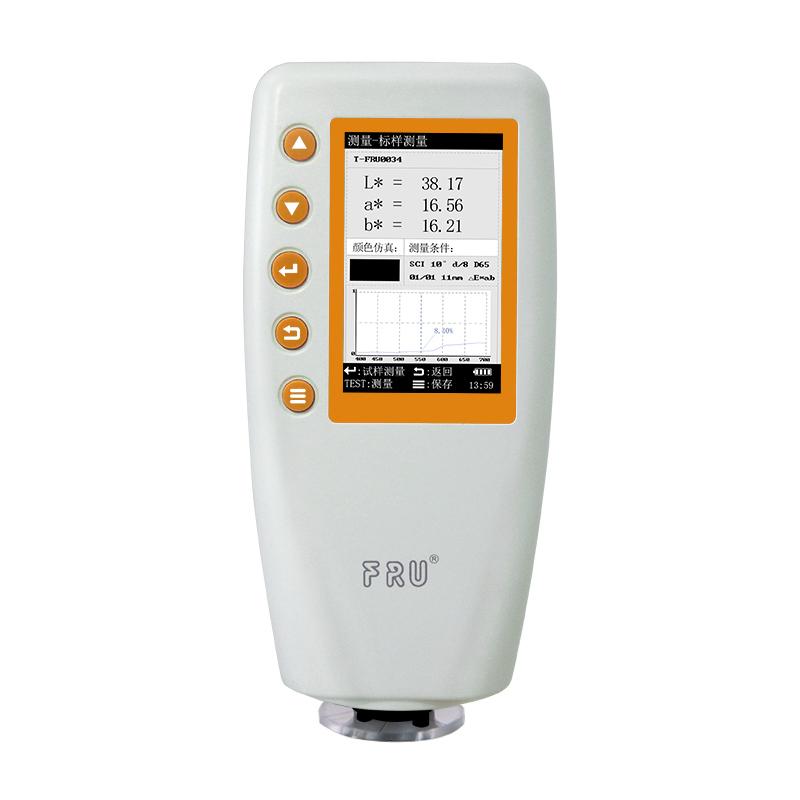

IWAVE WN700S Portable Colorimeter measurement caliber 11mm/6mm Picture

Introduction

This Spectrophotometer is a professional Spectrophotometer developed and produced according to the relevant standards of the International Commission on Illumination CIE and national standards. It adopts new imported key components and is carefully designed. It is accurate and stable, easy to operate, easy to learn and economical. Affordable and other features.

This Spectrophotometer is suitable for color measurement, color analysis, color quality control, Color difference control, color difference analysis, sample inspection, production line inspection, also suitable for auxiliary color matching of injection molding, ink, paint, spraying, etc.

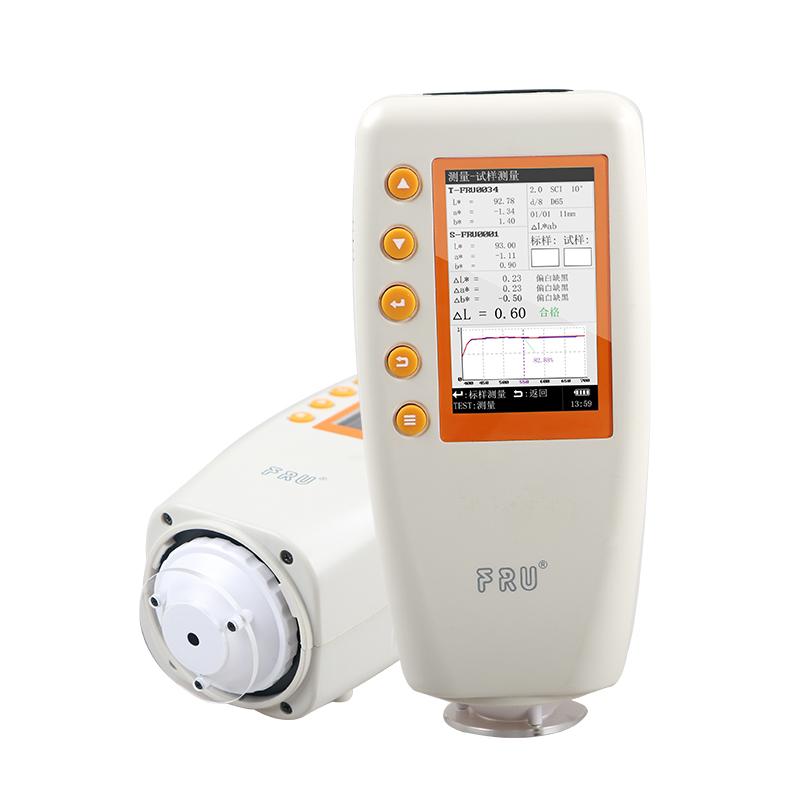

Product Structure

Details of IWave WN700S Spectrophotometer 1

Up key: move the cursor on the page; adjust the value of the activated item;

Down key: move the cursor on the page; adjust the value of the activated item;

Confirm key: confirm or activate the selected item on the page; quickly switch between "standard sample measurement" and "sample measurement";

Back key: return to the previous page;

Function key: display function menu/save settings;

Display: display measurement results, etc.;

Measurement key: to measure;

Measuring port: optical channel for measurement;

Switch key: open (I) or close (O) of the instrument;

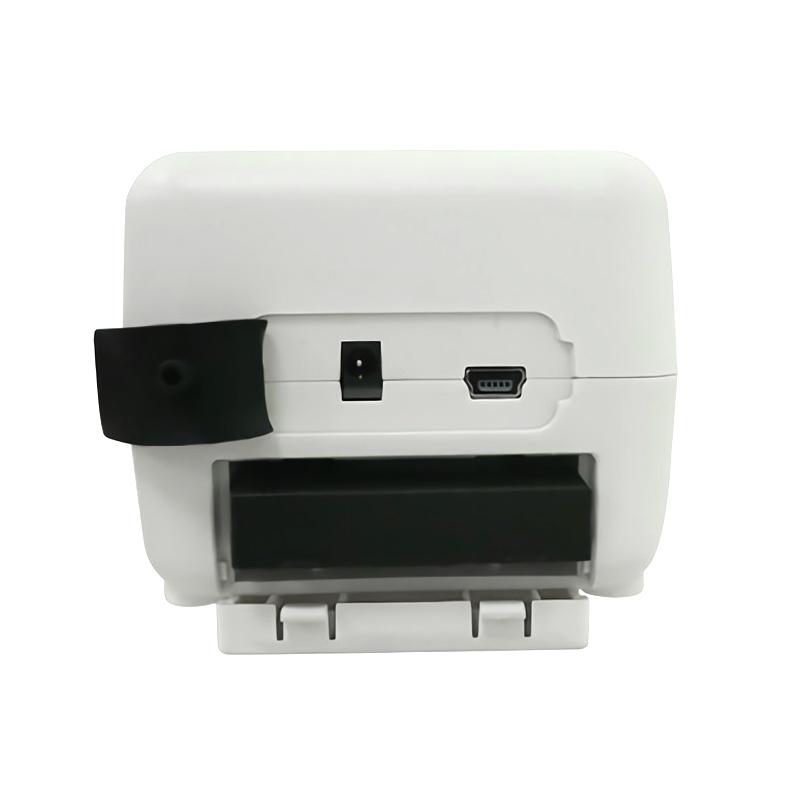

Printing interface: connect to a printer to print measurement data;

Battery compartment cover: the outer cover of the compartment where the special lithium battery is placed;

DC power interface: the interface of a dedicated power adapter.

FAQ
QWhich one is the color difference of pearlescent pigment?
A This one is fine.
