TIME3100 pocket Surface Roughness Tester

TIME3100 pocket Surface Roughness Tester is an update of the original TIME3100 model. Appearance is upgraded to white. Measurement range is Ra: 0.05-10 μm, Rz: 0.1-50 μm. TIME3100 is widely used in the detection of various metal and Non-metallic machined surfaces. Piezoelectric crystal Sensors are used.
Model：
Certificate
Contact
Details SPEC OI
Similar products

TIME TIME3100 Pocket surface roughness meterSPEC

TIME TIME3100 Pocket surface roughness meterDetails

TIME TIME3100 Pocket surface roughness meterPacking list

SKU
NB029468
Display mode
digital explicit
Measurement parameters
Ra、Rz
Measurement range
Ra:0.05~10μm；Rz:0.1~50μm
Error of indication
≤±15％
Indication variability
<12％
Sampling length
0.25mm、0.8mm、2.5mm
evaluation length
1.25mm、4mm、5mm
Stroke length
6mm
Power Supply
3.6V lithium-ion battery
Dimensions
110×70×24mm
Product Weight
160g
Operating Conditions
0℃- 40℃
Applicable standards
GB1031-83
Sensor type
piezoelectric crystal
TIME3100
Pocket surface roughness meter

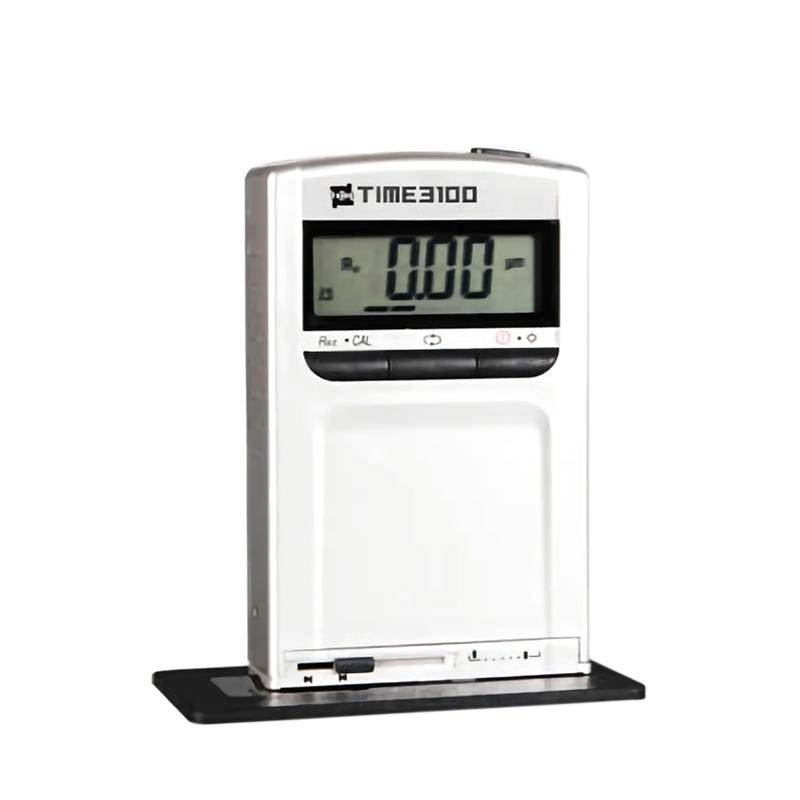

TIME3100 pocket Surface Roughness Tester Picture

Introduction

Times TIME3100 pocket surface roughness Tester, it has the characteristics of high measurement accuracy, wide measurement range, easy operation, easy to carry, stable work, etc., can be widely used in the detection of various metal and non-metal processing surfaces, the portable roughness meter is a pocket instrument integrated with the sensor host, with handheld characteristics, more suitable for use in the production site.


FAQ
QDo you have the pocket surface roughness meter required by the QB/T2693 standard?
A This TIME3100 pocket surface roughness instrument will do.
