KairDa NDT360 Ultrasonic Thickness Gauge Specifications

Search

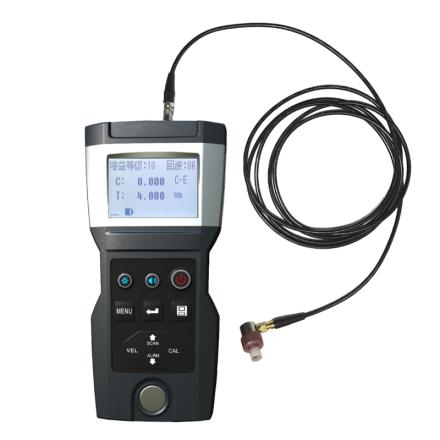

KAIRDA NDT360 Ultrasonic Thickness Gauge 0.15~ 300mm

Brand:KairDa

Model:NDT360

Name:Ultrasonic Thickness Gauge

DetailsContact
Specifications
Measuring range 0.15~ 300 mm (45 #steel)
Measurement error 0.03mm ∈ 0.3% * H
Display resolution 0.001mm
unit system mm
Calibrated Probe calibrated, two point calibrated
Measurement mode Single point measurement, scan measurement, upper limit scan, lower limit scan, limit scan, difference measurement, over limit alarm
Measurement speed 2~ 4 times/second
Storage Capacity 1000 sets of measurement results, including Film thickness measurement, measurement speed, measurement time and other related information
Sound speed range 1~19999 m/s
Display Chinese and English menus can be switched, FSTN LCD display, backlight with cold light source lighting
Data Interface Bluetooth/Mini-USB interface, virtual serial communication, data transmission with PC or smart end point device
Operating Temperature -10 ~ 50 °C
Storage temperature -30 ~ 60 °C
Power Built-in 3.7V rechargeable lithium-ion battery (Charging time is about 3 to 4 hours)
Host size 157mm*78mm*37mm
Body material ABS + PC alloy
Weight About 260g
Anti-measurement sound speed function support
operating frequency 2MHz3MHz5MHz15MHz
Calibrating block 4.000mm (steel)
Gain range 16 gears gain adjustable
Display content Film thickness, speed of sound, coupling state, effective echo number, power state, time, etc
Data printing Optional portable Bluetooth thermal printer
Automatic shutdown Standby timeout (can be set) automatic shutdown, underVoltage (less than 3.4V) automatic shutdown
Instrument case material High impact ABS (IK08), waterproof and dustproof (IP67)
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days

1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;

2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;


[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29482/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
