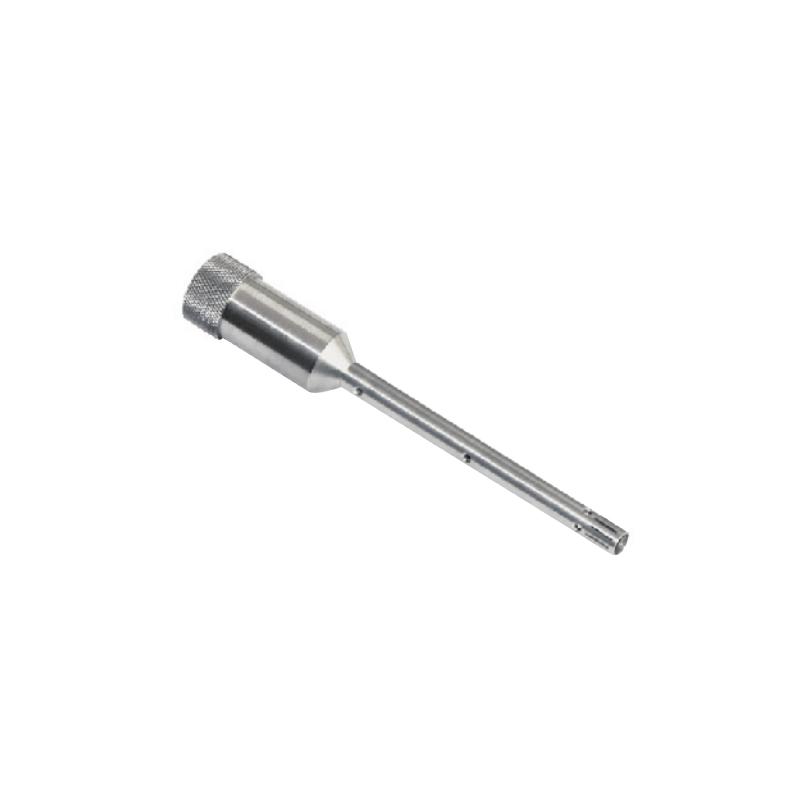

ANGNI 10G Homogenizer Processing capacity 30~250ml
The ANGNI 10G homogenizer head is the optional head of the AD145S-P ultra-fine homogenizer, with a diameter of 10mm and a suitable viscosity of 200cp. The overall length of the 10G homogenizer head is 178mm, and the rotor line speed is up to 13m/s.
Model：
10G
AN 10G Homogenizing headSPEC
AN 10G Homogenizing headDetails
AN 10G Homogenizing headPacking list
- SKU
- NB029492
- Processing Capacity
- 30~250mL
- Rotor maximum linear velocity
- 13m/s
- Work head specification
- Φ10mm
- Work head material
- SS316
- Max. Processing Viscosity
- 200mPa·s
- Applicable maximum temperature
- 120℃
- overall length
- 178mm
- Bearing material
- PTFE
- Minimum immersion liquid height
- 20mm
- Maximum immersion liquid height
- 110mm
10G
Homogenizing head
Oni 10G homogenizer is an optional working head for the AD145S-P ultra-fine homogenizer, with a diameter of 10mm, a viscosity of 200cp, an overall length of 10G homogenizing head of 178mm, and a rotor linear speed of 13m/s.
Homogenization head selection table
| specification | Throughput | Maximum viscosity | Maximum linear speed | Minimum/maximum immersion liquid length | Head length | Maximum temperature | Contact material material |
| 6G | 0.2-10 ml | 100 cP | 8 m/s | 18/60mm | 125mm | 120 ℃ | SS316L、PTFE |
| 8G | 1-60 ml | 100 cP | 10 m/s | 20/85mm | 148mm | 120 ℃ | SS316L、PTFE |
| 10G | 30-250 ml | 200 cP | 13 m/s | 20/110mm | 178mm | 120 ℃ | SS316L、PTFE |
