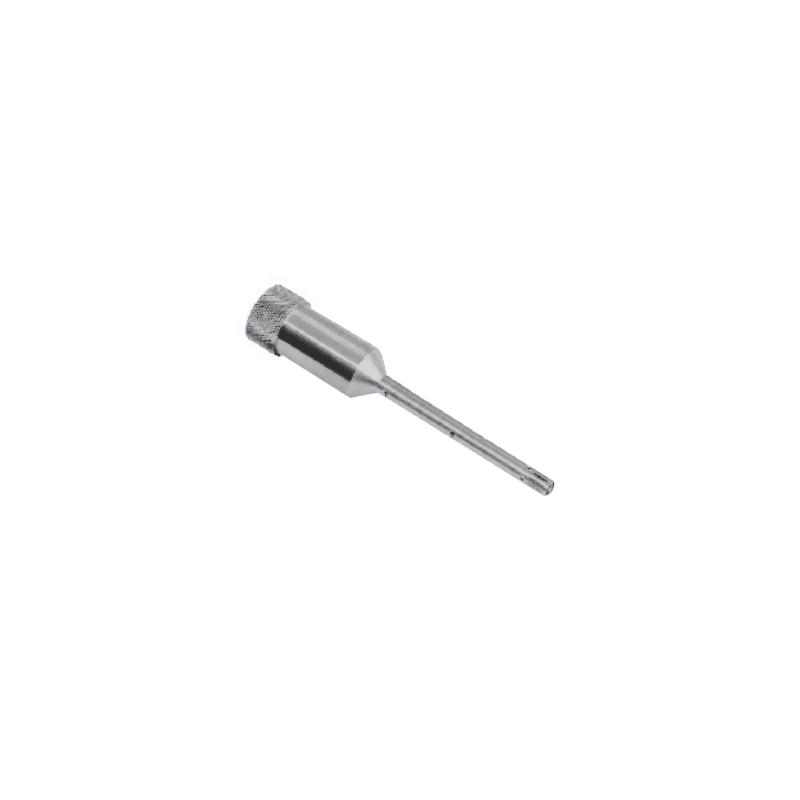

ANGNI 8G homogenizing head Processing capacity 1~ 60ml
The ANGNI 8G homogenizer head is the optional head of the AD145S-P ultra-fine homogenizer, with a diameter of 8mm and a suitable viscosity of 100cp. The overall length of the 8G homogenizer head is 148mm, and the rotor line speed is up to 10m/s.
Model：
8G
AN 8G Homogenizing headSPEC
AN 8G Homogenizing headDetails
AN 8G Homogenizing headPacking list
- SKU
- NB029493
- Processing Capacity
- 1~60mL
- Rotor maximum linear velocity
- 10m/s
- Work head specification
- Φ8mm
- Work head material
- SS316
- Max. Processing Viscosity
- 100mPa·s
- Applicable maximum temperature
- 120℃
- overall length
- 148mm
- Bearing material
- PTFE
- Minimum immersion liquid height
- 15mm
- Maximum immersion liquid height
- 85mm
8G
Homogenizing head
The 8G homogenizer is an optional head for the AD145S-P ultra-fine homogenizer, with a diameter of 8mm, a viscosity of up to 100cp, an overall length of 148mm and a rotor linear speed of 10m/s.
Homogenization head selection table
| specification | Throughput | Maximum viscosity | Maximum linear speed | Minimum/maximum immersion liquid length | Head length | Maximum temperature | Contact material material |
| 6G | 0.2-10 ml | 100 cP | 8 m/s | 18/60mm | 125mm | 120 ℃ | SS316L、PTFE |
| 8G | 1-60 ml | 100 cP | 10 m/s | 20/85mm | 148mm | 120 ℃ | SS316L、PTFE |
| 10G | 30-250 ml | 200 cP | 13 m/s | 20/110mm | 178mm | 120 ℃ | SS316L、PTFE |
