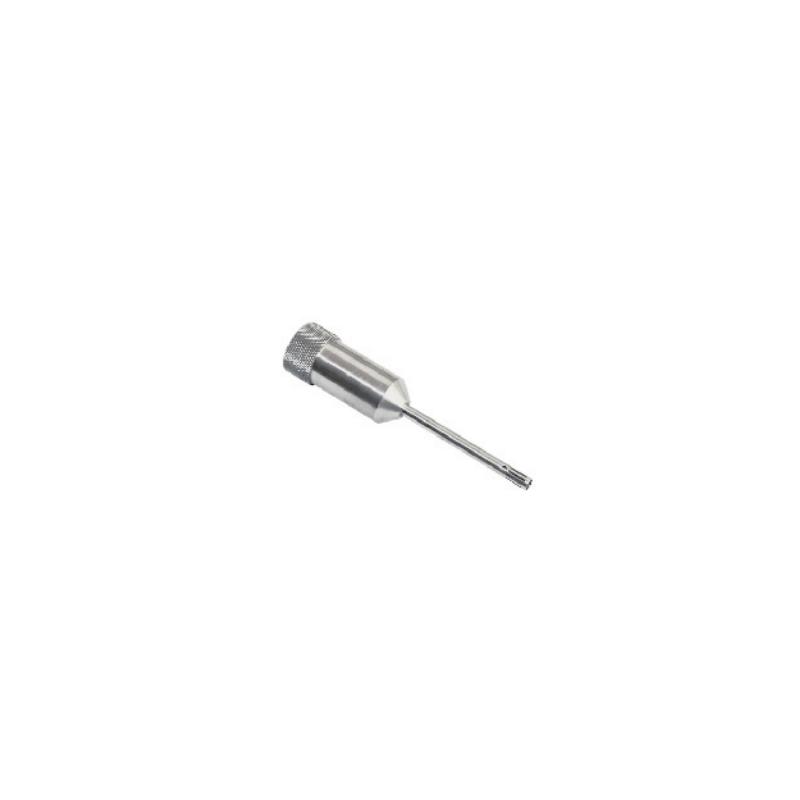

ANGNI 6G Homogenizer Processing capacity 0.2~ 10ml
The ANGNI 6G homogenizer head is the optional head of the AD145S-P ultra-fine homogenizer, with a diameter of 6mm and a suitable viscosity of 100cp. The overall length of the 6G homogenizer head is 123mm, and the rotor line speed is up to 8m/s.
Model：
6G
AN 6G Homogenizing headSPEC
AN 6G Homogenizing headDetails
AN 6G Homogenizing headPacking list
- SKU
- NB029494
- Processing Capacity
- 0.2~10mL
- Rotor maximum linear velocity
- 8m/s
- Work head specification
- Φ6mm
- Work head material
- SS316
- Max. Processing Viscosity
- 100mPa·s
- Applicable maximum temperature
- 120℃
- overall length
- 123mm
- Bearing material
- PTFE
- Minimum immersion liquid height
- 12mm
- Maximum immersion liquid height
- 60mm
6G
Homogenizing head
Oni 6G homogenizer is an optional working head for the AD145S-P ultra-fine homogenizer, with a diameter of 6mm, a viscosity of up to 100cp, an overall length of 123mm and a rotor linear speed of 8m/s.
Homogenization head selection table
| specification | Throughput | Maximum viscosity | Maximum linear speed | Minimum/maximum immersion liquid length | Head length | Maximum temperature | Contact material material |
| 6G | 0.2-10 ml | 100 cP | 8 m/s | 18/60mm | 125mm | 120 ℃ | SS316L、PTFE |
| 8G | 1-60 ml | 100 cP | 10 m/s | 20/85mm | 148mm | 120 ℃ | SS316L、PTFE |
| 10G | 30-250 ml | 200 cP | 13 m/s | 20/110mm | 178mm | 120 ℃ | SS316L、PTFE |
