TianDiXingHuo ZTT-101A Multi-angle reverse reflection mark Measurement Instrument Specifications

Search

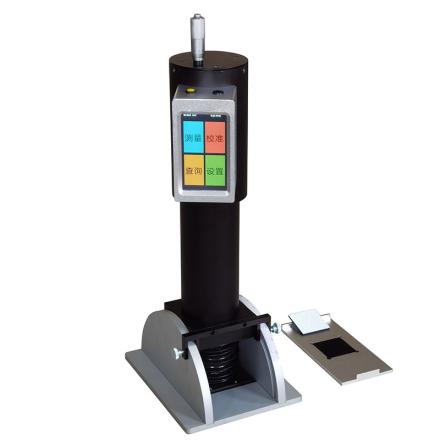

XINGHUO ZTT-101A Multi-angle reverse reflection mark Measurement Instrument, touch screen version voice broadcast

Brand：TianDiXingHuo

Model：ZTT-101A

Name：Multi-angle reverse reflection mark Measurement Instrument

DetailsContact
Specifications
Observation angle α Continuously adjustable from 0.2 ° to 2.0 °, reading Accuracy is 0.002 °
Incident angle β Continuously adjustable in the range of -40 °~ + 40 °, the reading index is 1 °
Light source Color temperature 2856K (A Light source)
Detector Silicon diode, filter corrected to CIE standard Light spectrum optical efficiency V (λ) for photometric observer
Measurement range 0~9999cd·lx-1·m-2
Power Lithium battery Power , Continuous Working time more than 30h, can be internal and outdoor measurement
Opening Angle of Detector Aperture to Sample 12′
data storage 10,000 test messages
Resolution 0.1 cd·lx-1·m-2
Once calibrated (maximum) 9 pairs of angles
Display 4.5 "854x480 (touch screen)
charging method 220V AC 50HZ；   DC8.4V
operating temperature -15℃ ~ +50℃
Operating Humidity 10~90%, no condensation
Computer Connectivity TF memory card
Power Lithium battery (6600mAh)
Storage temperature -30℃ ~ +85℃
Packing list
Optical inspection detection head X1, measurement display instrument X1, incident angle (β) regulator (Organic Glass) X1, calibration plate (black, white each), Light source cable X1, instruction manual, charger, detector cable, product production certificate, warranty card, calibrated certificate
After-sales instructions

Warranty days: 1095 days

If the product quality is not caused by human beings, the manufacturer provides 3 years of free warranty service, except for accessories and consumables

[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/29500/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
