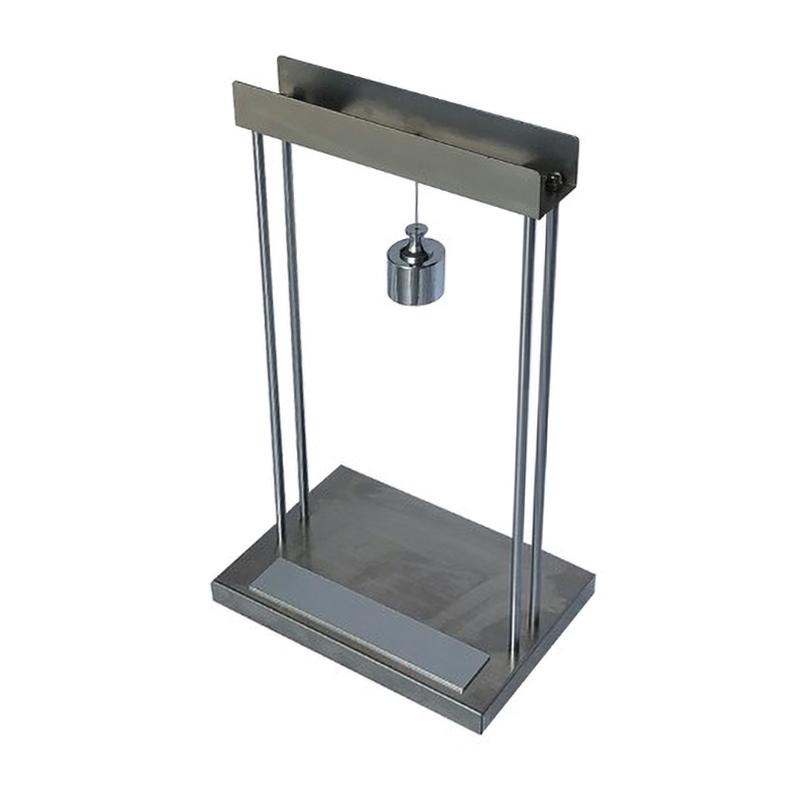

XINGHUO ZTT-910 Reflective film adhesion performance Tester

ZTT-910

Reflective film adhesion performance Tester

ZTT-910 Reflective Film Adhesion Tester is specially designed and produced for production, quality, supervision, engineering construction, and supervision units to measure the adhesion of reflective film. It has the characteristics of reasonable structure, simple operation, wide applicability, high measurement accuracy, safe measurement and good reliability.

ZTT-910 reflective film adhesion Tester meets the requirements of my country's reflective film technical standards GB/T16311-2009, JT/T685-2007, and JJG083-2007.

ZTT-910 reflective film adhesion Tester is mainly composed of steel hammer, steel hammer hook, reflective film pasting board, base and support rod.

Steps

Cut the reflective film of 150mm*25mm, tear off the 100mm long release paper from one end, stick it on the aluminum alloy plate with a thickness of 2.5mm, a length of 200mm and a width of 50mm according to the manufacturer's instructions, and support the test sample of adhesion performance. Place the sample under standard test conditions for 24 hours, then hang the sample horizontally, with the reflective film facing down, and hang a standard weight on the free end of the reflective film, making it hang down at an angle with the sample, and then use a stopwatch to measure the steel hammer hanging Record the measurement time data and measure the peeling degree L of the reflective film after 5 minutes. The adhesion of the reflective film is judged according to the standard.

Packing list：Host X1, Aluminum Panel X1, Pendant X1, Hook X1, Certificate X1, Manual X1, Instrument Case X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
