JENCO 3671N online pH oxidation reduction controller

SE
0~14/0.01 pH, -1990~1990/1mV, two sets of relays control output, automatic temperature compensation 0~100 ℃
$401.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

JENCO 3671N pH oxidation controllerSPEC

JENCO 3671N pH oxidation controllerDetails

JENCO 3671N pH oxidation controllerPacking list

SKU
NB002952
PH range
0~14.0pH
PH Measurement Accuracy
±0.1PH
Resolution
0.1pH
Measurement range
Automatic 0~100 ℃
Impedance
Greater than 10 ^ 12 ohms
Power Supply
115/230 VAC ±15%,50/60 Hz
Dimensions
96*48*172mm
Weight
0.69 kg
Measurement range mV
-1990~1990mV
mV resolution
10mV
Measurement Accuracy of mV
±0.1% ±1 digit
Measurement Accuracy of mV
±0.1% ±1 digit
Measurement range
0~100℃
Temperature Resolution
1℃
Measurement Accuracy
1 ±1 digit
Recorder, output (ph)
1400 mV
Recorder, output (mV)
-1990 ~ 1990 mV
Recorder, output (temperature)
1000 mV
Two-point on/off control
pH or ORP (user selectable)
Idle zone (dead band, no sensing zone)
+/- 0.1 pH (per set point)
Relay, output
8a at 115 VAC,4a at 230 VAC
read display
0.5 "active, red LED display
3671N
pH oxidation controller
0~14/0.01 pH, -1990~1990/1mV, two sets of relays control output, automatic temperature compensation 0~100 ℃

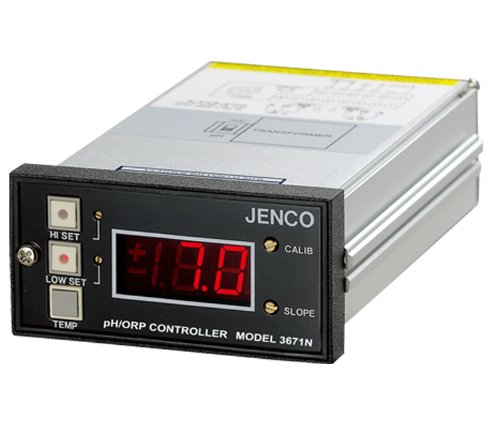

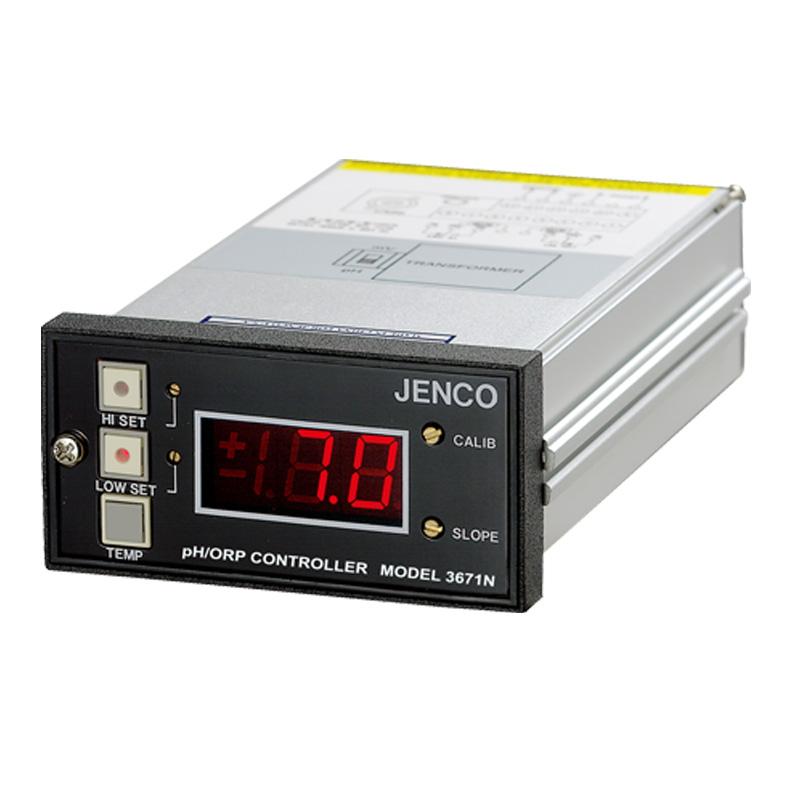

JENCO 3671N online pH oxidation reduction controller Picture

JENCO 3671N In-Line pH Redox Controller Features

  • Standard 1/8DIN aluminium body design

  • The LED display can display the pH (ORP) value, and the temperature value can be displayed by the temperature switch button

  • Two sets of pH (ORP) relay control

  • It has the function of automatic temperature compensation

  • Power-off correction value memory function

  • It is an affordable industrial in-line acidity/redox controller

JENCO 3671N Online pH Redox Controller

Optional

ModelIntroduction
IP-600-9PTGeneral water treatment (can be used below 70°C for a long time)
IP-600-1NPTGeneral water treatment (can be used below 90°C for a long time)
IP-600-3CNPTPure water pH composite electrode (pure water and ultrapure water can be used below 60°C for a long time)
IP-600-10General water treatment (use at room temperature)
IP-600-1NGeneral water treatment (use at room temperature)
IP-600-3CNPure water pH composite electrode (used at room temperature for pure water and ultrapure water measurement)

Redox electrodes

ModelIntroduction
IR-500-8General water treatment field
IR-500-9General water treatment field

Sheath tube

ModelIntroduction
009A1 meter tube length

Sealed box

ModelIntroduction
011-200-00Dial-mounted
012-200-00Wall-mounted


FAQ
QI want to do a test about the QB/T4103 standard, is this pH oxidation reduction controller okay?
A Sure
