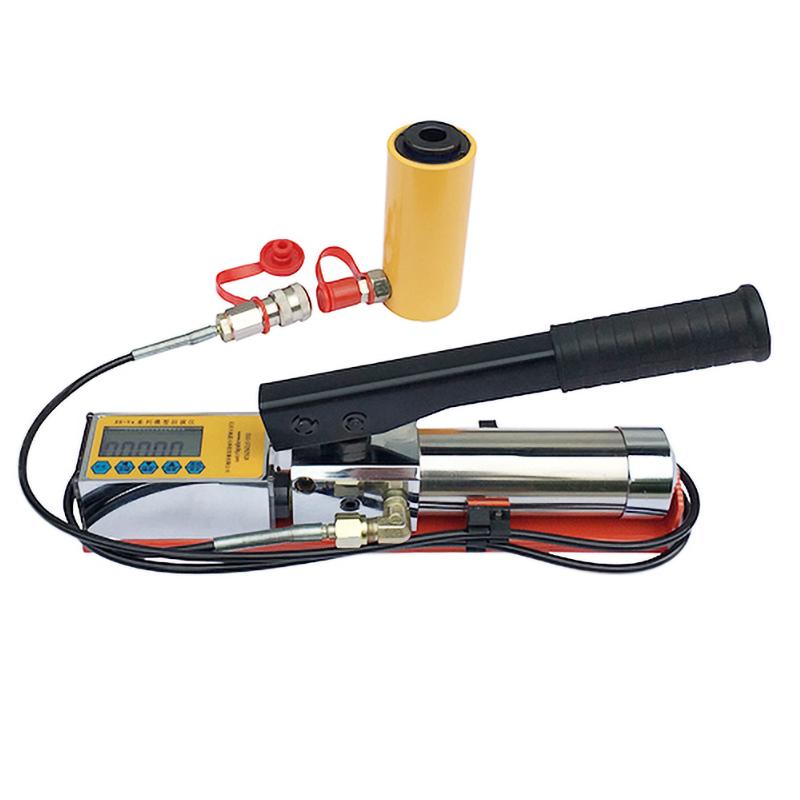

XINGHUO XH-V1.5 Miniature Puller 15KN
SE
XH-V1.5
TianDiXingHuo XH-V1.5 Miniature pullerSPEC
TianDiXingHuo XH-V1.5 Miniature pullerDetails
TianDiXingHuo XH-V1.5 Miniature pullerPacking list
- SKU
- NB029527
- Working pressure
- 50MPa
- plunger diameter
- 10mm
- Maximum pull-out force
- 15kN
- Hydraulic cylinder central aperture
- 18mm
- piston stroke
- 50mm
- Pressure gauge Measurement range
- 0~15KN
- Pressure gauge Power
- 4.2V rechargeable battery
- resolution
- 0.001KN
- Error of indication
- ≤±1%F.S
XH-Vx series miniature puller is a self-developed product of Beijing Tiandi Xinghuo Technology Development Co., Ltd. It is suitable for testing the pull-out resistance of various anchors, steel bars (planting bars), expansion bolts, chemical anchors and other anchors. It can also be used for on-site pull-out test (test) of glass curtain walls. It is a good choice for quality inspection and construction units The preferred detection instrument.
Application
XH-Vx series miniature puller is suitable for testing the pull-out force of anchors such as anchor rods, steel bars (planted bars), expansion bolts, chemical anchors, etc., and can also be used for on-site pull-out force testing (test) of glass curtain walls , It is the preferred testing instrument for quality inspection and construction units. This product is guaranteed for free for three years, and the company implements a long-term maintenance responsibility system for the products sold.
Standards
GB 50203-2011 "Code for Acceptance of Construction Quality of Masonry Structure Engineering"
JGJ 145-2013 "Technical Regulations for Post Anchorage of Concrete Structures"
Features
XH-Vx series micro-drawing instrument is composed of manual pump, hollow hydraulic cylinder, digital display pressure gauge, high-pressure rubber hose with quick connector, anchorage, pull rod, conversion joint and portable carrying case. The whole series of hydraulic cylinders are hollow self-resetting and digital display integrated design, which can directly read the force value (KN), and have the functions of peak hold, storage, zero reset, backlight, query and automatic shutdown. The technology is reliable, the operation is simple, and it is suitable for LABOratory and field use.
Models
| model | XH-V1.5 | XH-V2 | XH-V3 | XH-V4 | XH-V5 | |
| High pressure hand pump | Maximum working pressure/MPa | 50 | ||||
| Plunger diameter/mm | 10 | |||||
| Mass/kg | 2 | |||||
| hydraulic cylinder | Maximum pull out force/kN | 15 | 20 | 30 | 40 | 50 |
| Central aperture/mm | 18 | |||||
| Piston stroke/mm | 50 | |||||
| Mass/kg | 1.8 | |||||
| Digital pressure gauge | Measuring range/kN | 0～15 | 0～20 | 0～30 | 0～40 | 0～50 |
| Power/V | 4.2V rechargeable battery | |||||
| Mass/kg | 0.2 | |||||
| resolution | 0.001KN | |||||
| Indication error | ≤±1%FS | |||||
